Audio Remote-HFL Switch Connector for Inputs and Outputs
| Connector Index |
| Audio Remote-HFL Switch 12P Connector (with multi-information display) |
| Audio Remote-HFL Switch 12P Connector (without multi-information display) |

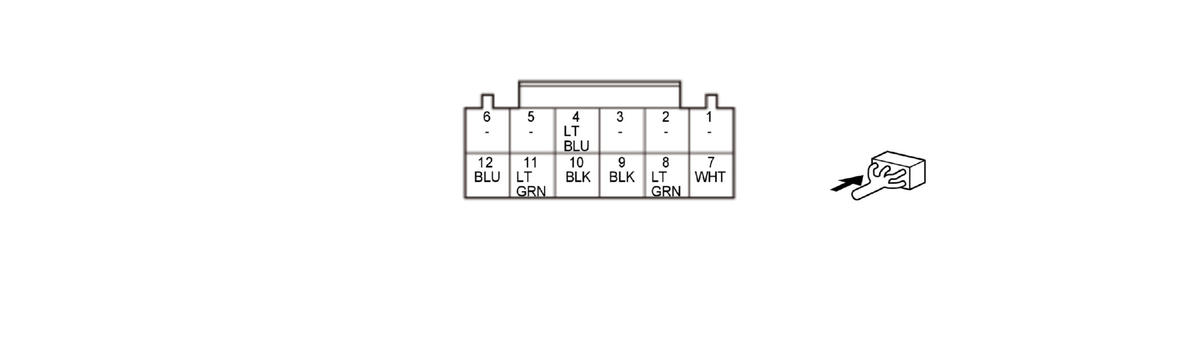

Audio Remote-HFL Switch 12P Connector (female terminals) (with multi-information display)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| 1 |
--- |
Not used |
| 2 |
--- |
Not used |
| 3 |
--- |
Not used |
| 4 |
ILL-(LED) |
Outputs illumination control signal for related units |
| 5 |
--- |
Not used |
| 6 |
--- |
Not used |
| 7 |
+B |
+B power source |
| 8 |
ILLUMI+ |
Outputs illumination signal |
| 9* |
STRG GND |
Ground for related units |
| 10 |
STRG GND |
Audio remote-HFL switch ground |
| 11* |
HSW LIN |
Communication signal |
| 12 |
STRG SW LIN |
Communication signal |
*: With heated steering wheel

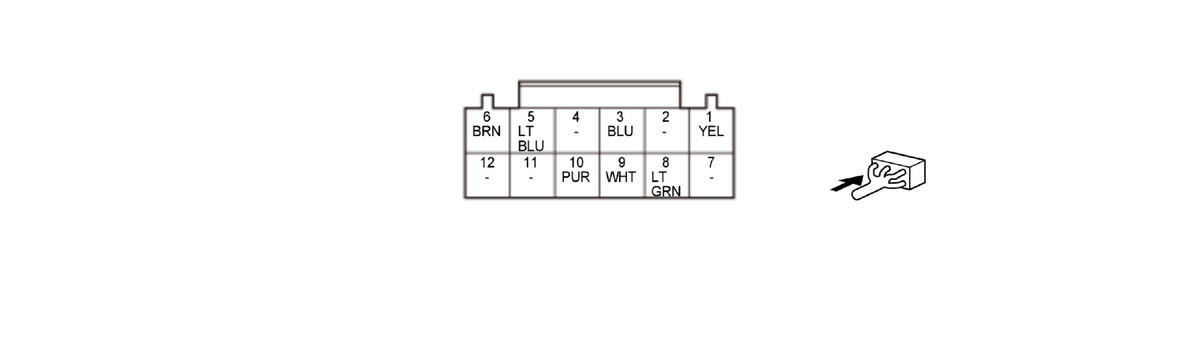

Audio Remote-HFL Switch 12P Connector (female terminals) (without multi-information display)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| 1 |
ILLUMI+ |
Detects illumination signal |
| Cavity |
Terminal Name |
Description |
| 2 |
--- |
Not used |
| 3 |
AUDIO REMOTE SW |
Outputs control signal from audio remote switch |
| 4 |
--- |
Not used |
| 5 |
ILL-(LED) |
Outputs illumination control signal for related units |
| 6 |
REMOTE SW GND |
Audio remote-HFL switch ground |
| 7 |
--- |
Not used |
| 8 |
ILLUMI+ |
Outputs illumination signal for related units |
| 9 |
HFT/NAVI REMOTE SW |
Outputs control signal from HFL switch |
| 10 |
ILL-(LED) |
Outputs illumination control signal |
| 11 |
--- |
Not used |
| 12 |
--- |
Not used |
