Speaker Removal, Installation, and Test: Test

Door Speaker, Rear Speaker

1. Door Speaker, Rear Speaker - Test

   Courtesy of HONDA, U.S.A., INC.

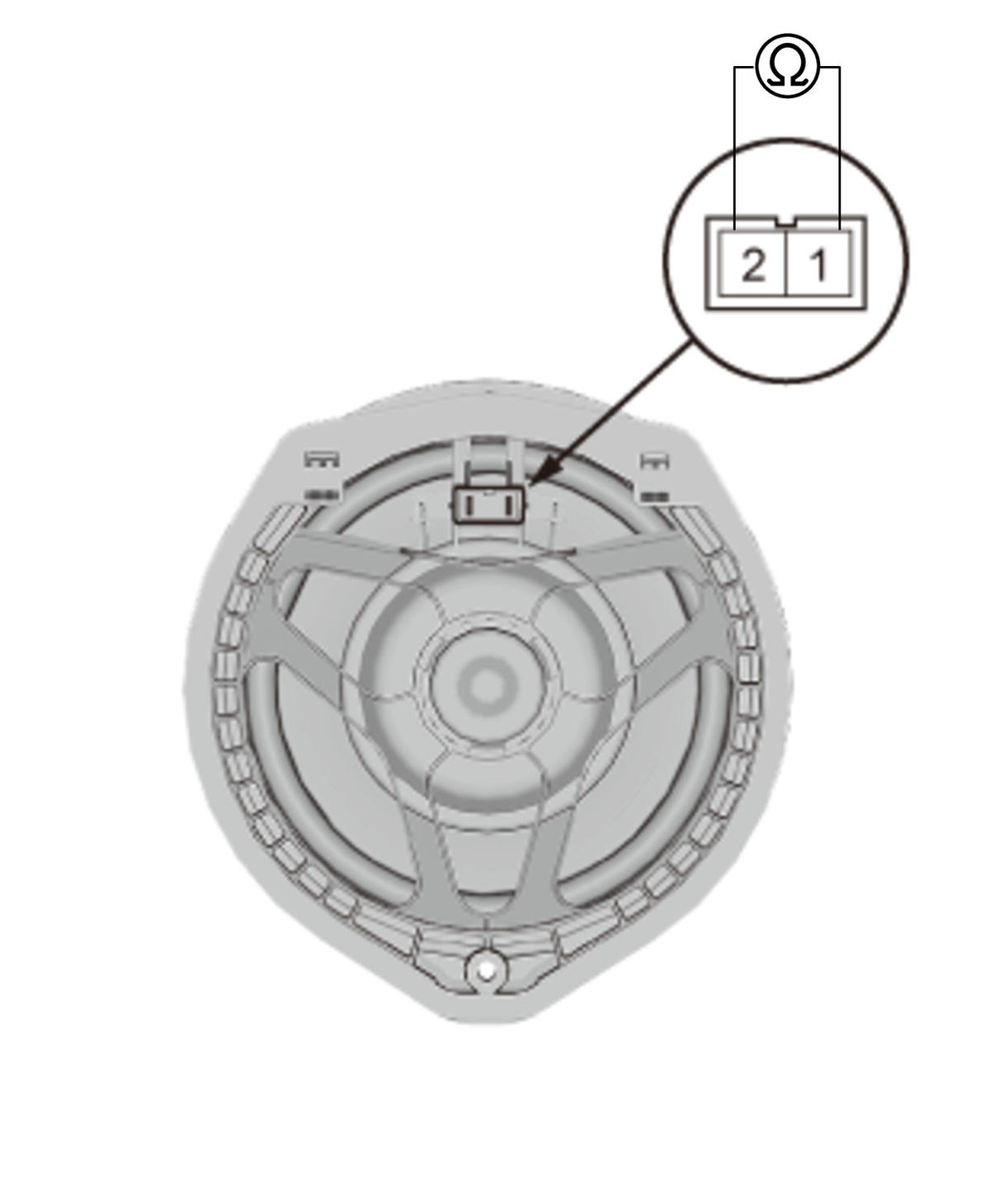

   1. Measure the resistance between terminals No. 1 and No. 2. There should be about 4 Ω. 2. If the resistance is not as specified, replace the door speaker.

   Tweeter

2. Tweeter - Test

   Courtesy of HONDA, U.S.A., INC.

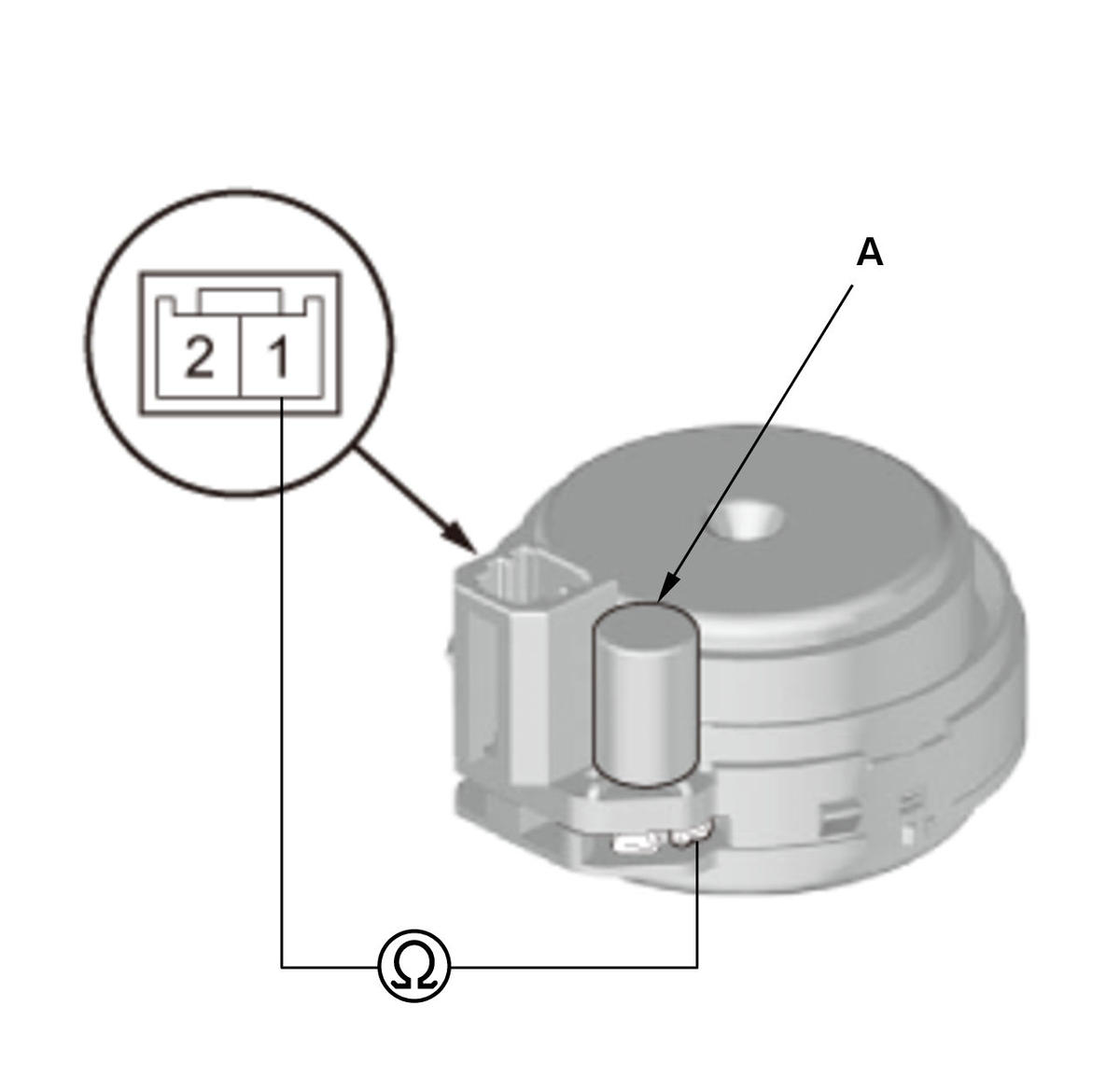

   1. Measure the resistance between terminal No. 1 and the outside terminal of the capacitor (A). There should be about 4 Ω. Also visually check the capacitor for damage. 2. If the resistance is not as specified, replace the tweeter.

   Subwoofer

3. Subwoofer - Test

   Courtesy of HONDA, U.S.A., INC.

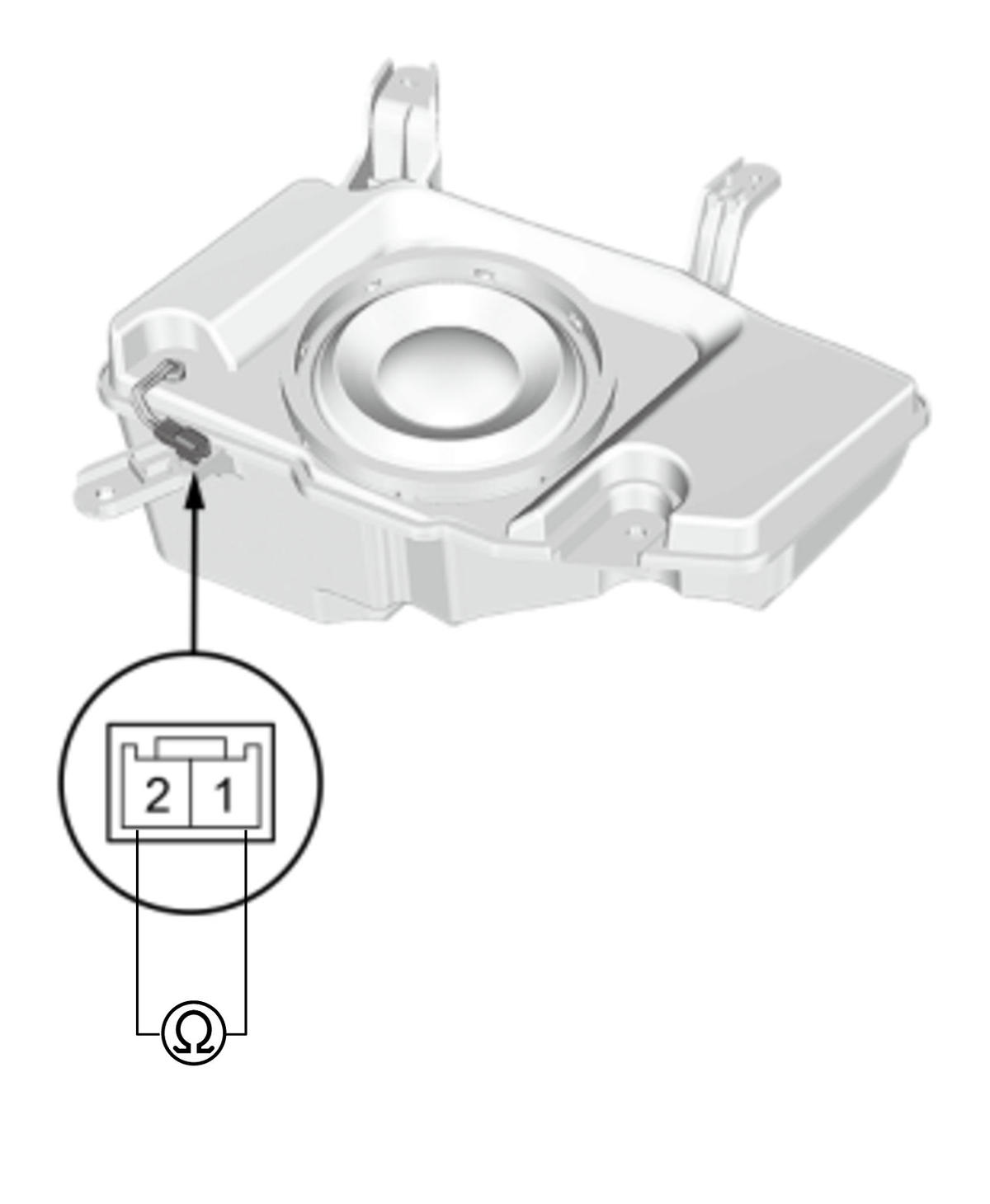

   1. Measure the resistance between the terminals No. 1 and No. 2. There should be about 2 Ω. 2. If the resistance is not as specified, replace the subwoofer.
