Removal and Installation

NOTE: How to read the torque specifications .

Door Speaker

1. Door Panel - Remove
   • Front door
   • Rear door

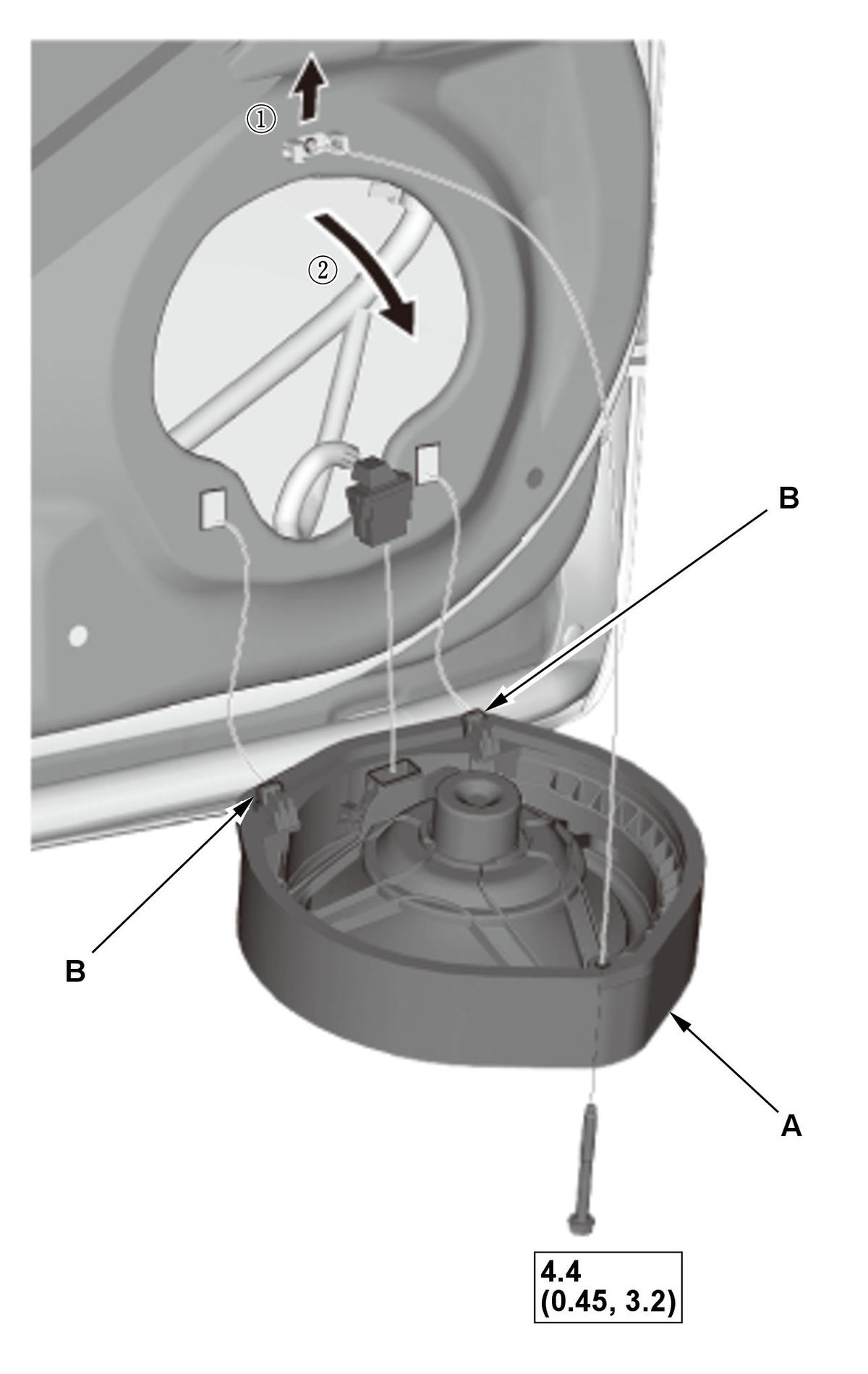

2. Door Speaker - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the bolt, then lift the door speaker (A) straight up to release the lower clips (B). 2. Disconnect the connector.

3. All Removed Parts - Install

   Install the parts in the reverse order of removal.

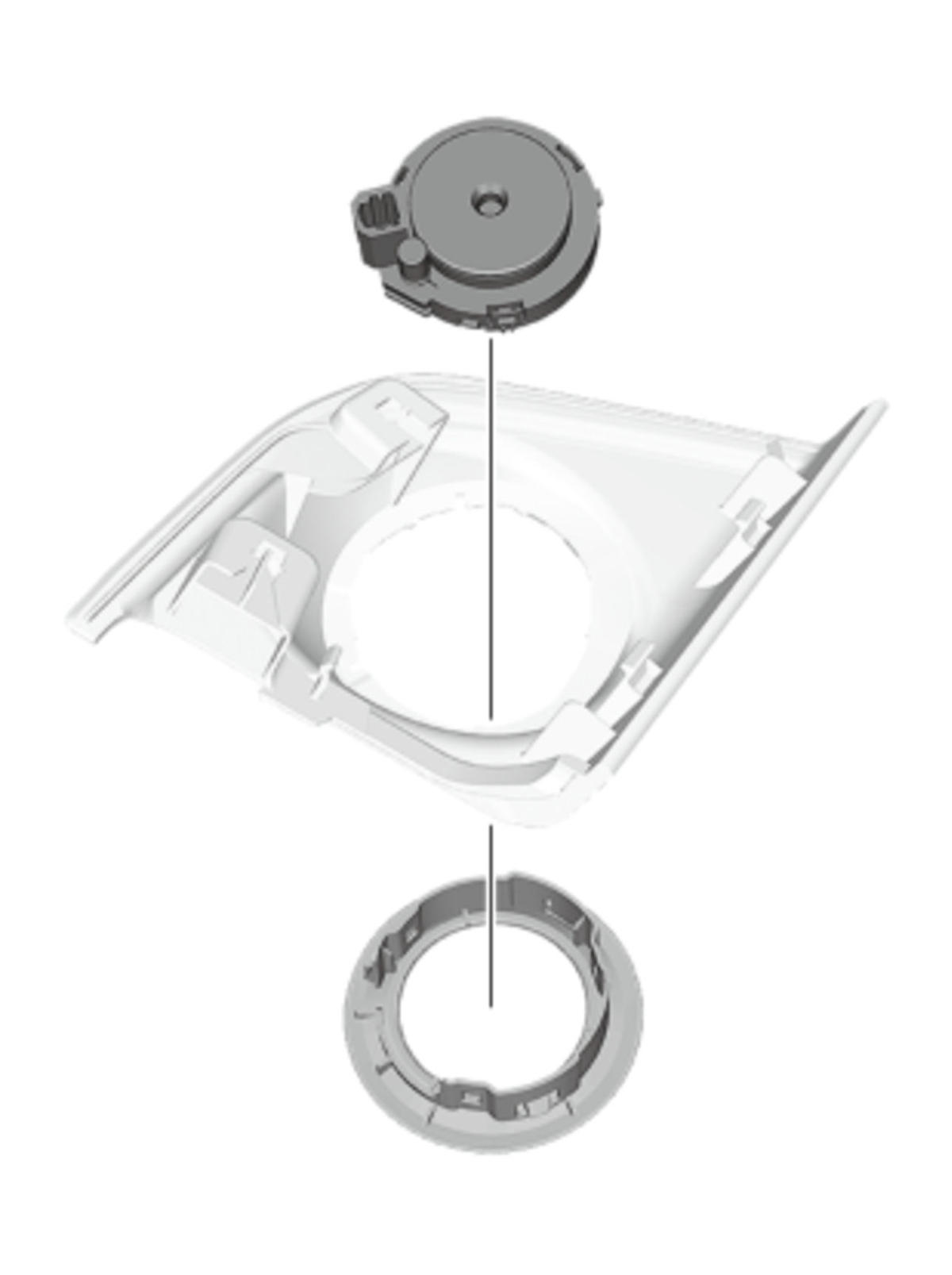

   Front Tweeter

4. Mirror Trim - Remove
5. Front Tweeter - Remove

   Courtesy of HONDA, U.S.A., INC.

6. All Removed Parts - Install

   Install the parts in the reverse order of removal.

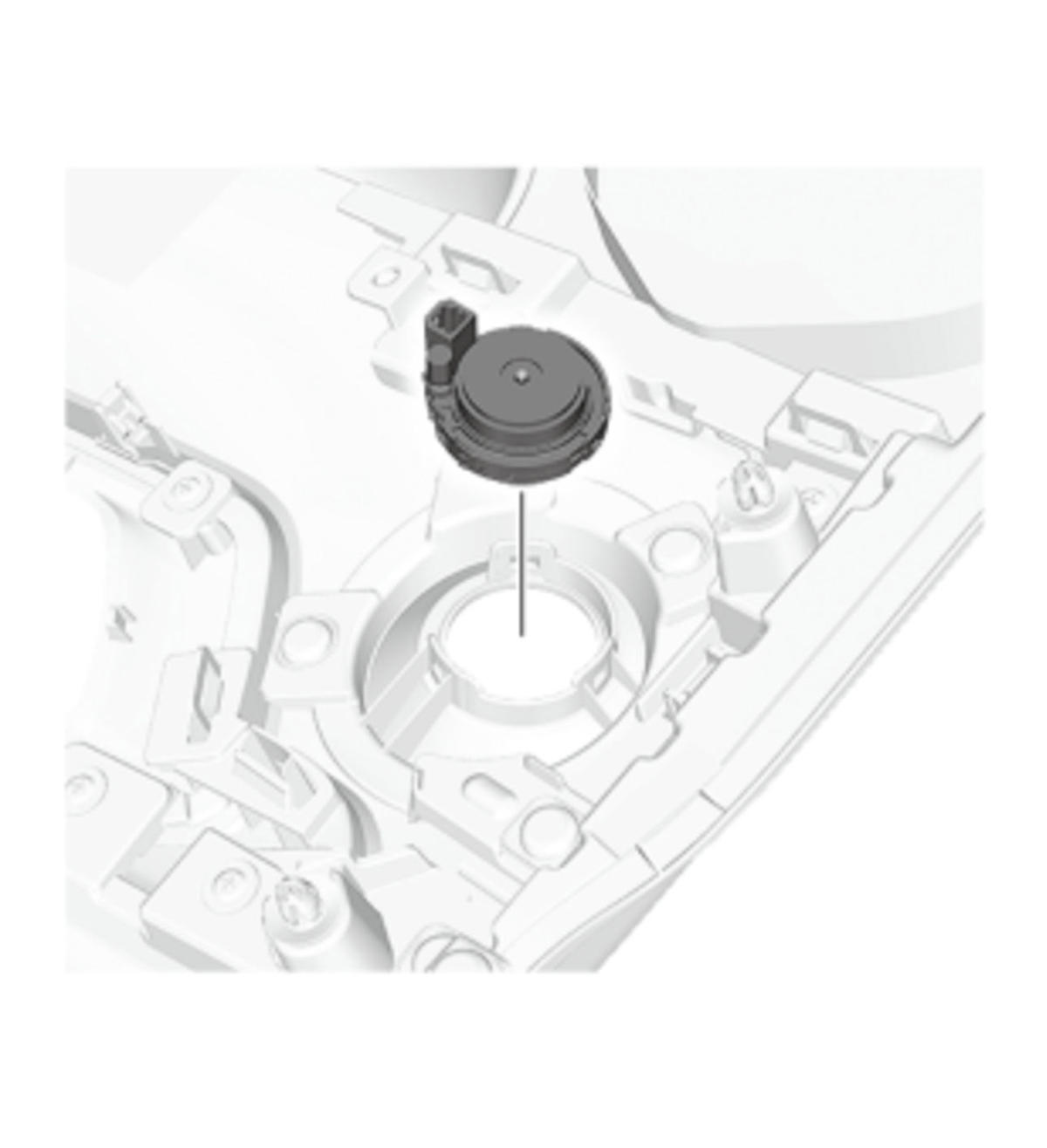

   Rear Tweeter

7. Rear Door Panel - Remove
8. Rear Tweeter - Remove

   Courtesy of HONDA, U.S.A., INC.

9. All Removed Parts - Install

   Install the parts in the reverse order of removal.

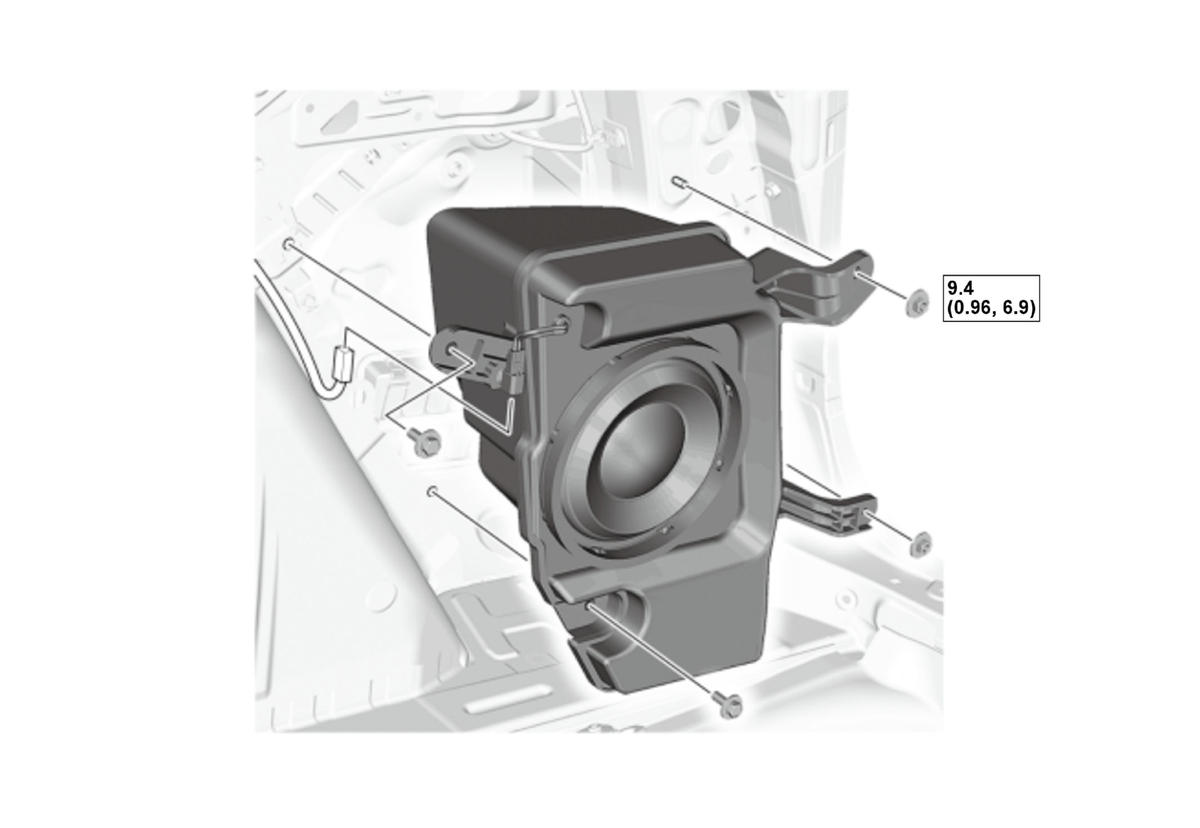

   Subwoofer

10. Rear Side Trim Panel (Right Side) - Remove
11. Subwoofer - Remove

    Courtesy of HONDA, U.S.A., INC.

12. All Removed Parts - Install

    Install the parts in the reverse order of removal.
