Audio Remote - HFL Switch Removal, Installation, and Test: Test

NOTE:  Testing of the switch only applies to models without multi-information display.

1. Steering Wheel Trim - Remove
2. Audio Remote-HFL Switch - Test

   Courtesy of HONDA, U.S.A., INC.

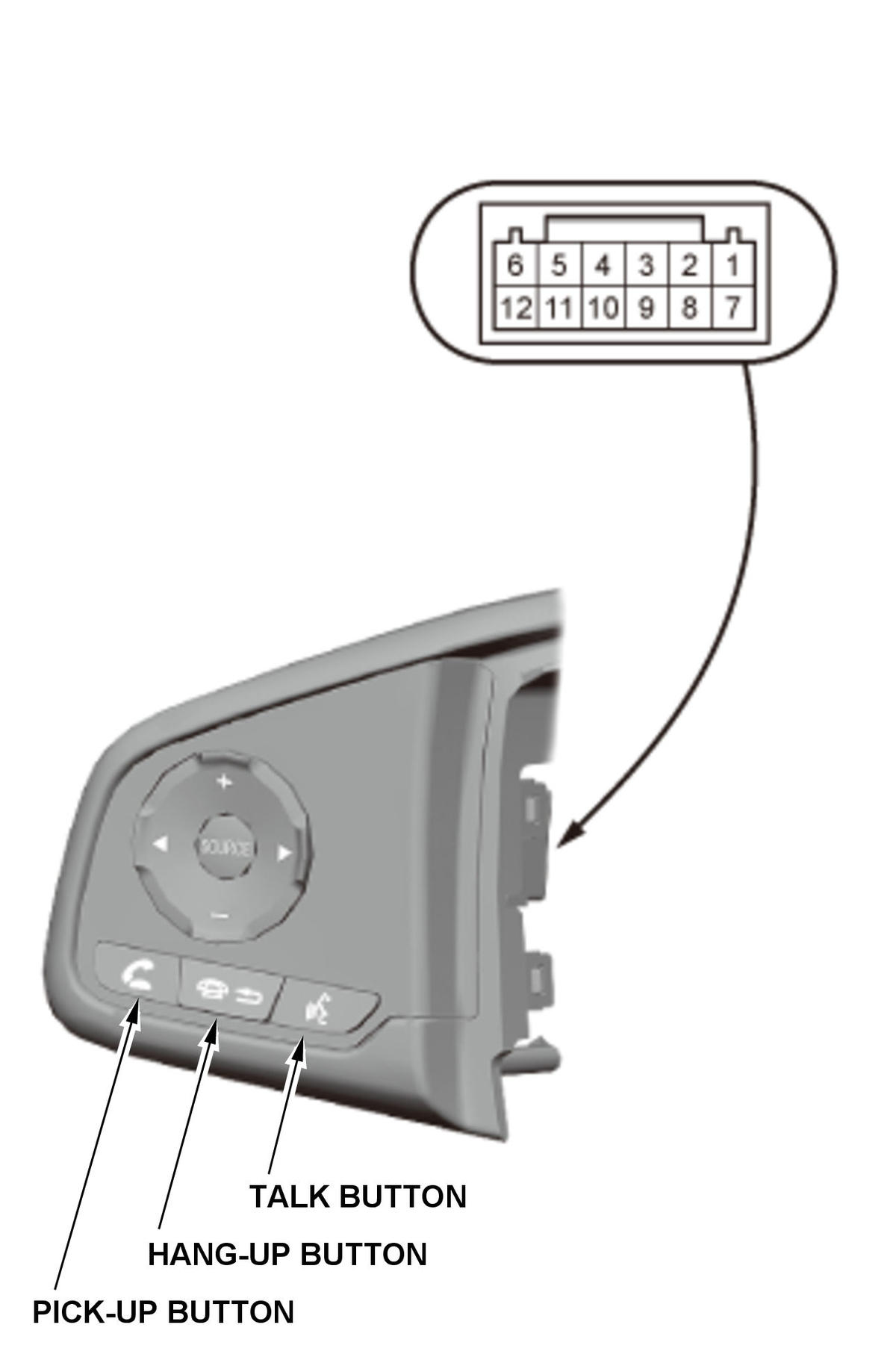

   1. Measure the resistance between terminals No. 3 and No. 6 in each switch position according to the table. 2. Measure the resistance between terminals No. 6 and No. 9 in each switch position according to the table. 3. If the resistance is not as specified, replace the audio remote-HFL switch.

   Button Held Down	Resistance
   No button pressed	About 10 kΩ
   HANG-UP	About 47 Ω
   PICK-UP	About 222 Ω
   TALK	About 2.2 kΩ

   Button Held Down	Resistance
   No button pressed	About 10 kΩ
   SOURCE	About 3.7 kΩ
   Right (CH +)	About 1.7 kΩ
   Left (CH -)	About 775 Ω
   + (VOL.UP)	About 357 Ω
   - (VOL.DOWN)	About 99 Ω

3. All Removed Parts - Install

   Install the parts in the reverse order of removal.
