Exterior Lighting - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

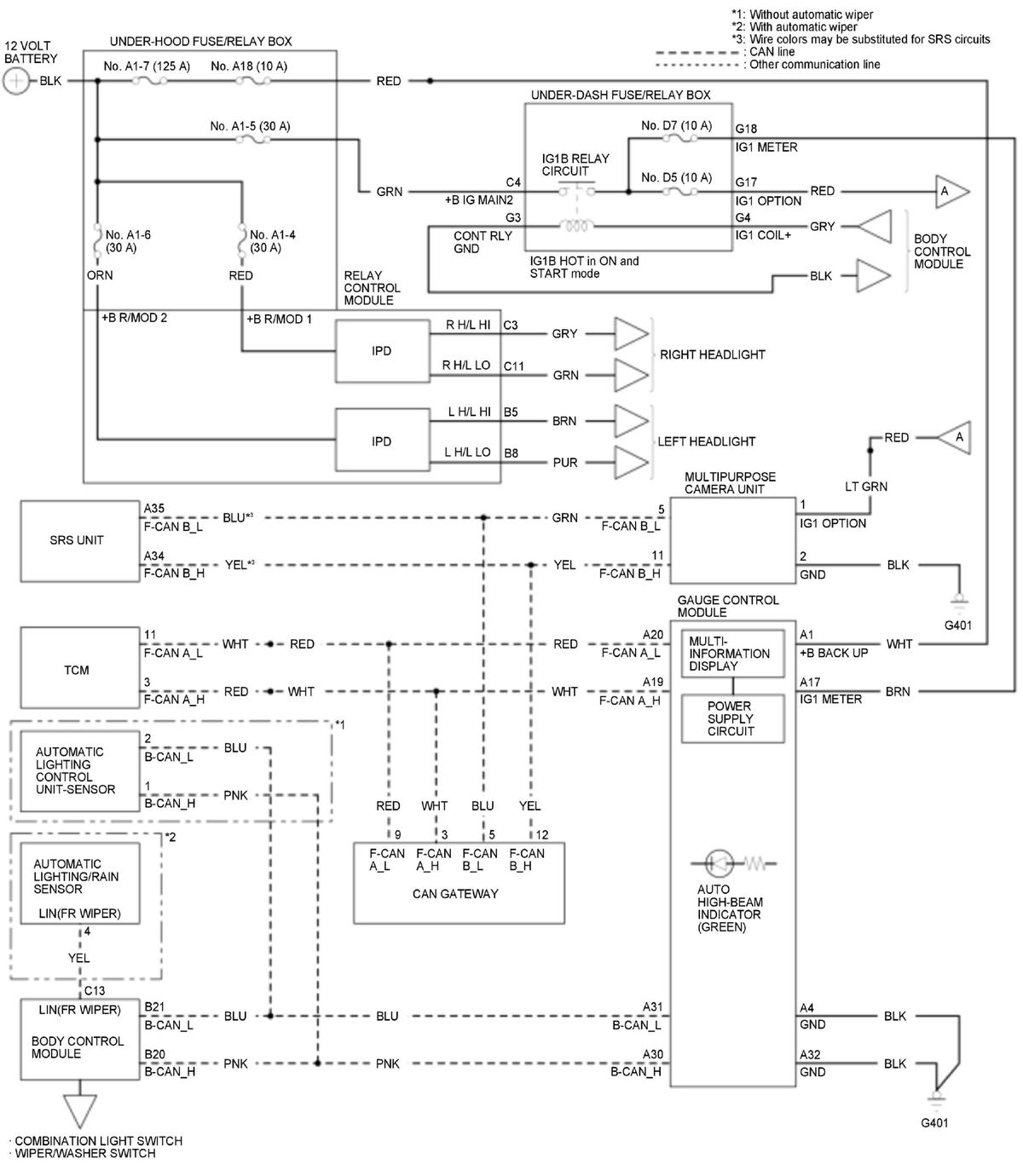

Auto High-Beam (High-Beam Support System) Circuit Diagram(Without Auto Idle Stop System)
Auto High-Beam (High-Beam Support System) Circuit Diagram(Without Auto Idle Stop System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
