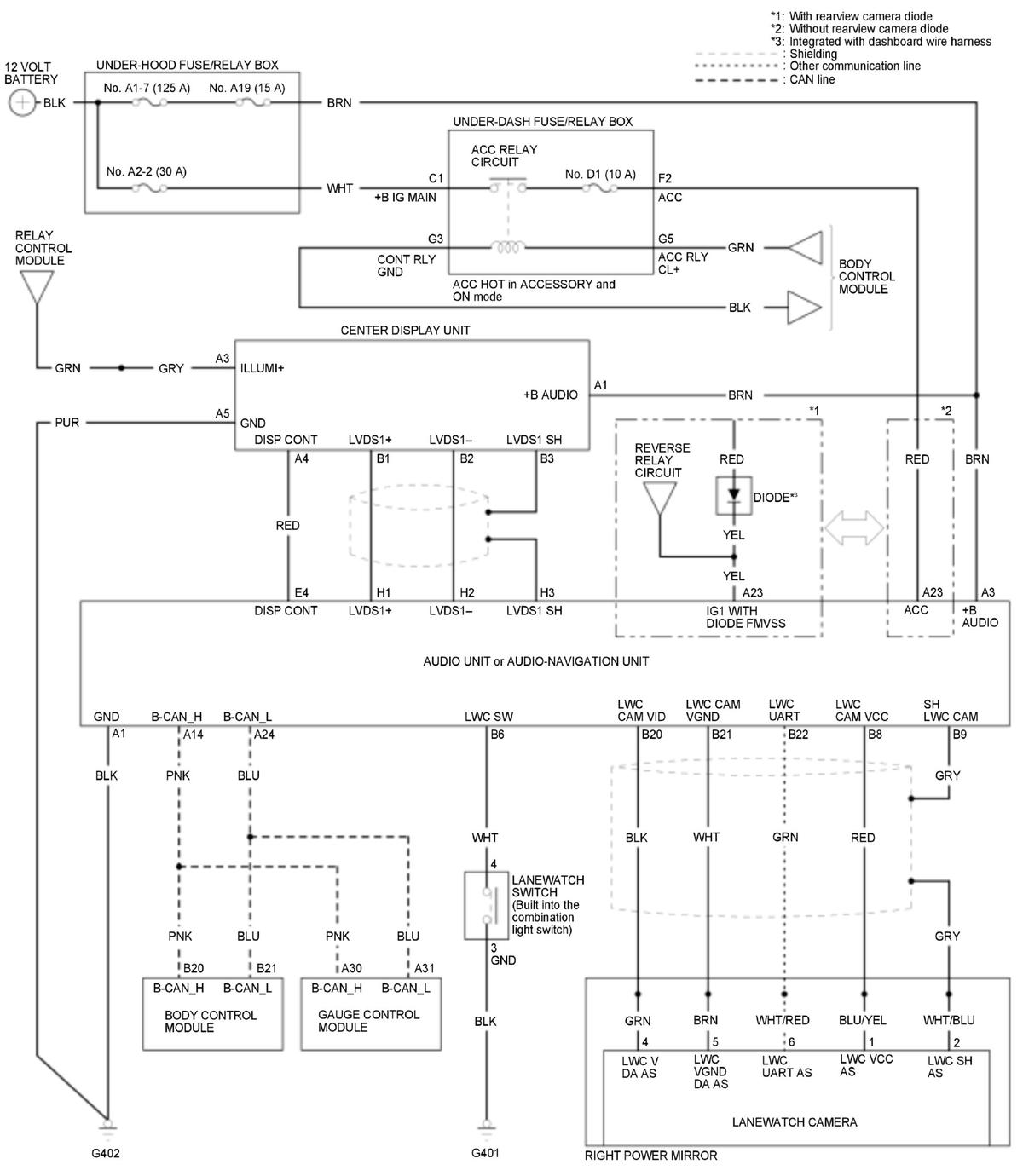

LaneWatch Circuit Diagram (Without Auto Idle Stop System)

GHH430959

Courtesy of HONDA, U.S.A., INC.
