Circuit Diagram
>>

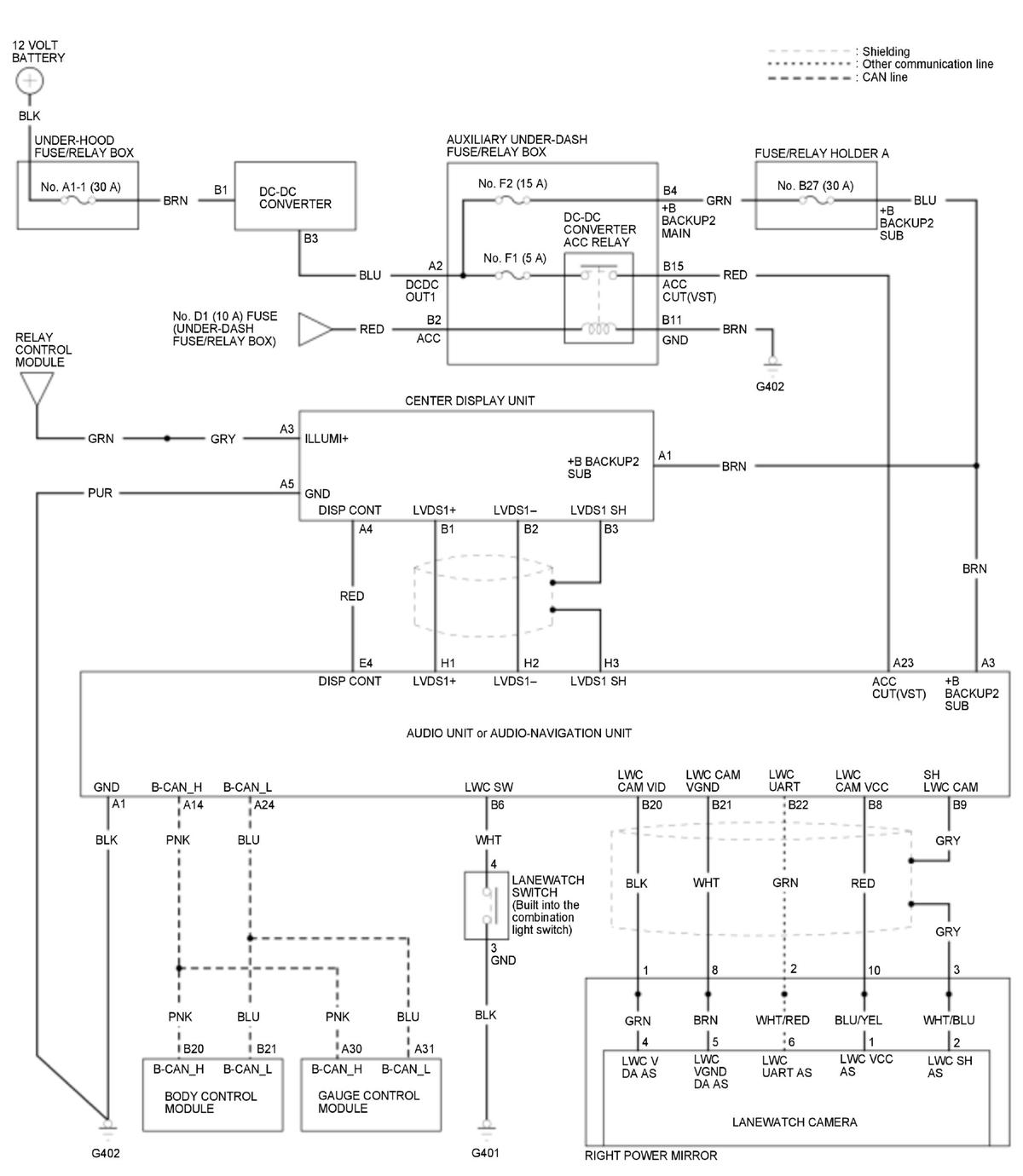

LaneWatch Circuit Diagram (With Auto Idle Stop System) (2020 2021)
LaneWatch Circuit Diagram (With Auto Idle Stop System) (2020 2021)
Courtesy of HONDA, U.S.A., INC.
