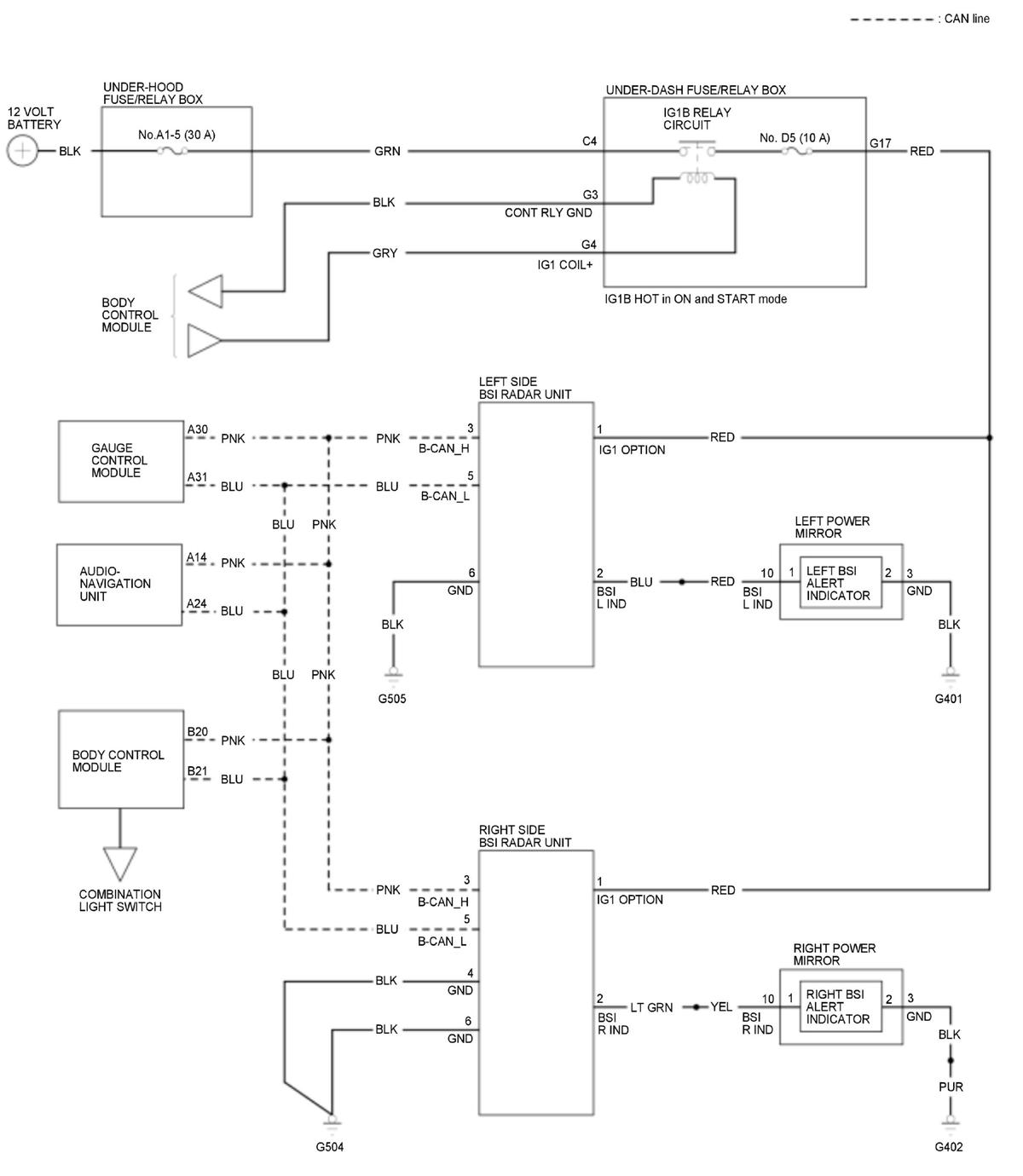

Blind Spot Information (BSI) System Circuit Diagram (Without Auto Idle Stop System)

GHH430957

Courtesy of HONDA, U.S.A., INC.
