Circuit Diagram
>>

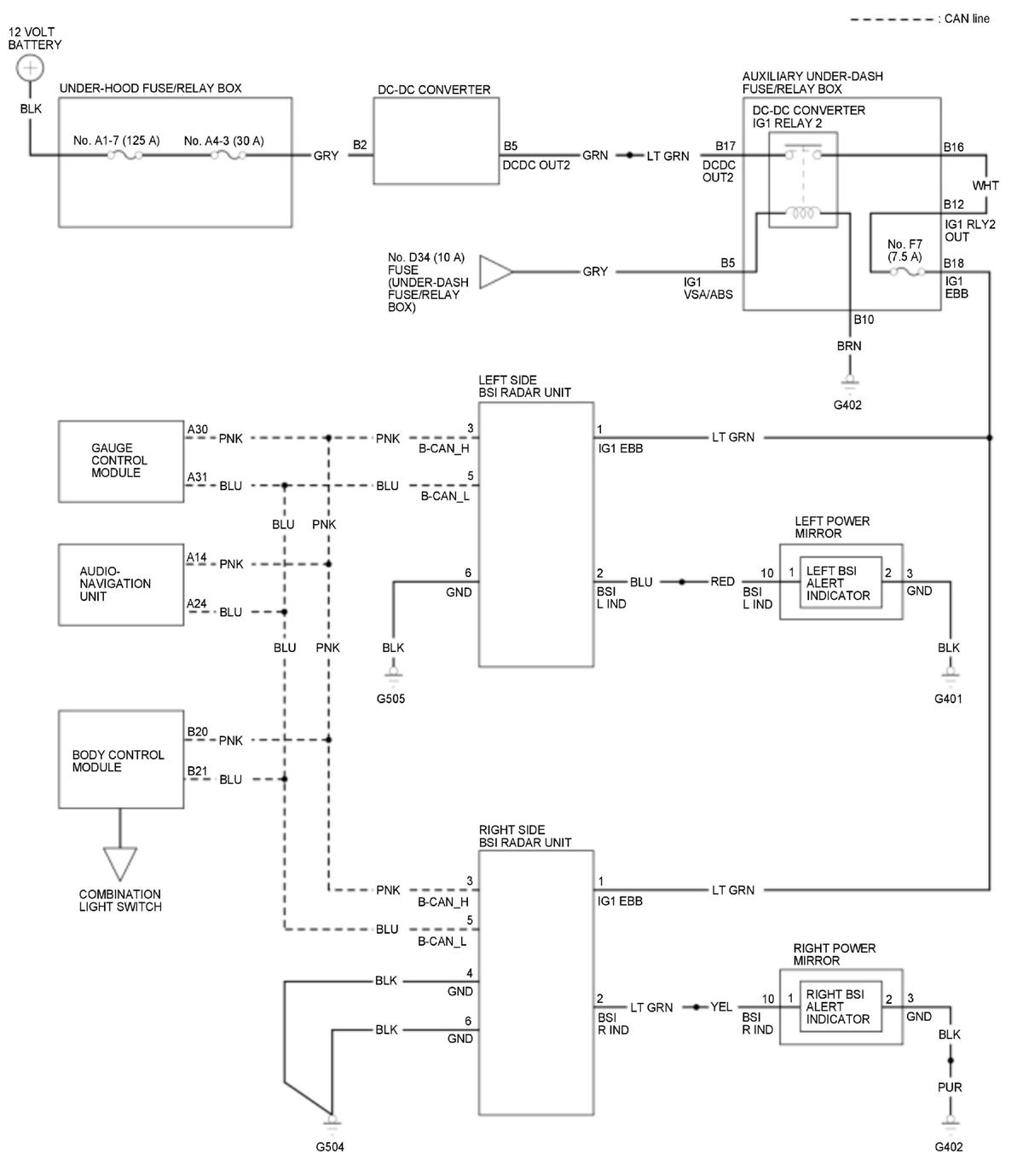

Blind Spot Information (BSI) System Circuit Diagram (With Auto Idle Stop System) (2020 2021)
Blind Spot Information (BSI) System Circuit Diagram (With Auto Idle Stop System) (2020 2021)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
