BSI Radar Unit Mounting Area Check: Adjustment

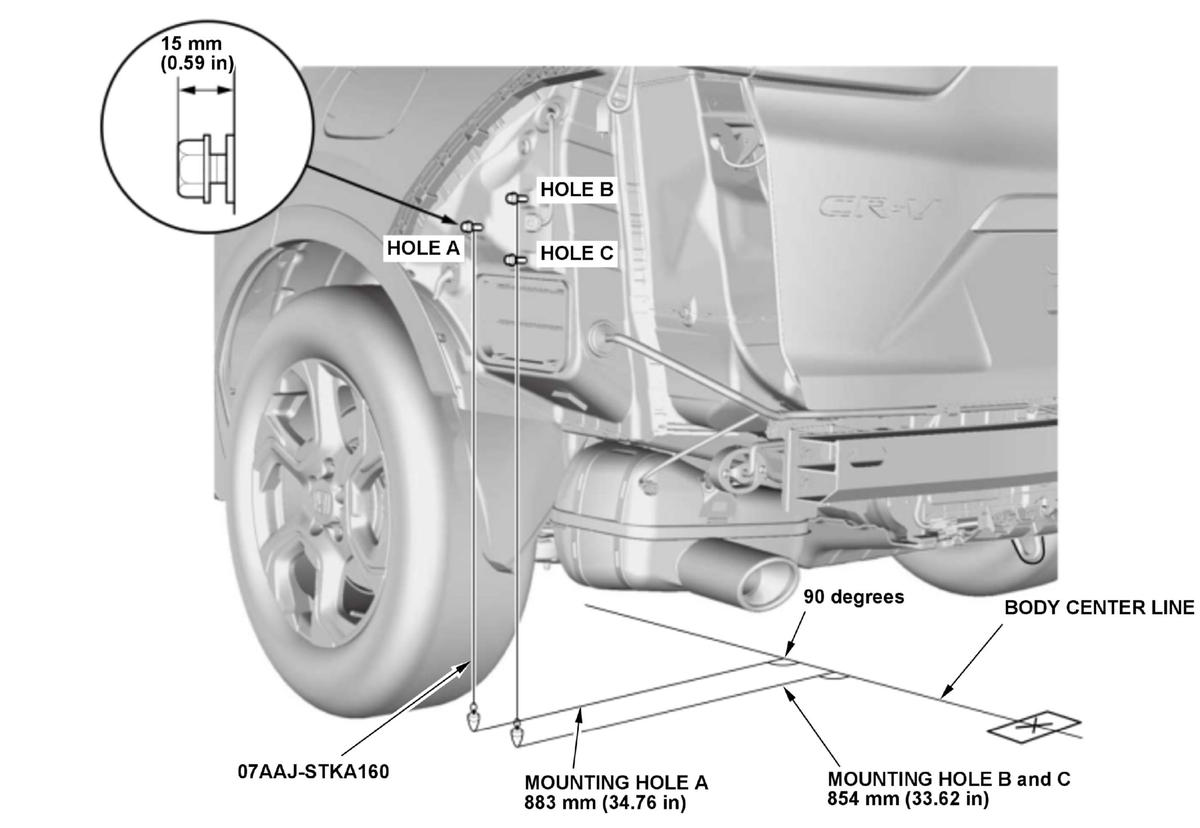

1. Install bolts on each hole of the body panel.

2. Measure the length from the tip of the bolt installed to each hole A, B, and C to the body center line.

NOTE:  If the measured lengths between the body center line and hole A to C are different from the standard, take the vehicle to a body repair shop to have the panel adjusted to standard.

Courtesy of HONDA, U.S.A., INC.
