LaneWatch Switch Removal, Installation, and Test: Test

  1. LaneWatch Switch - Test
    GHH430978GHH430979Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH430978GHH430979Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

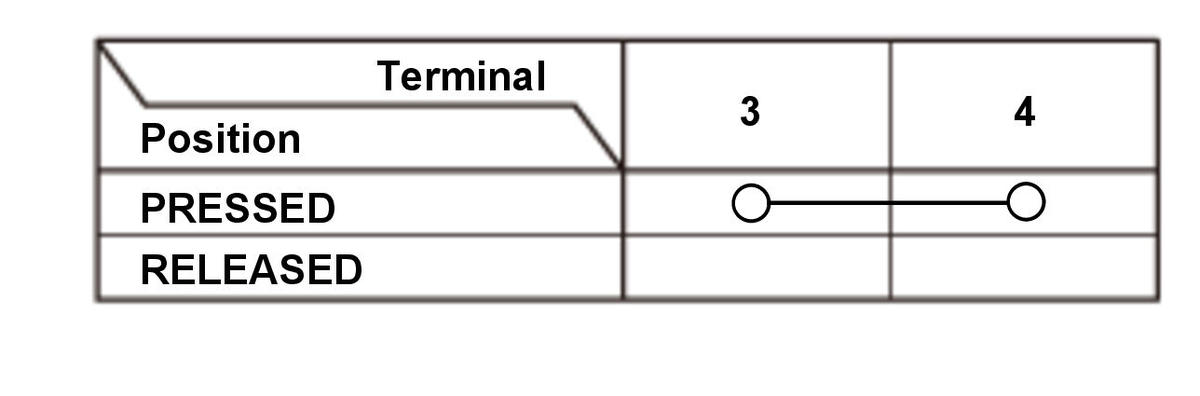

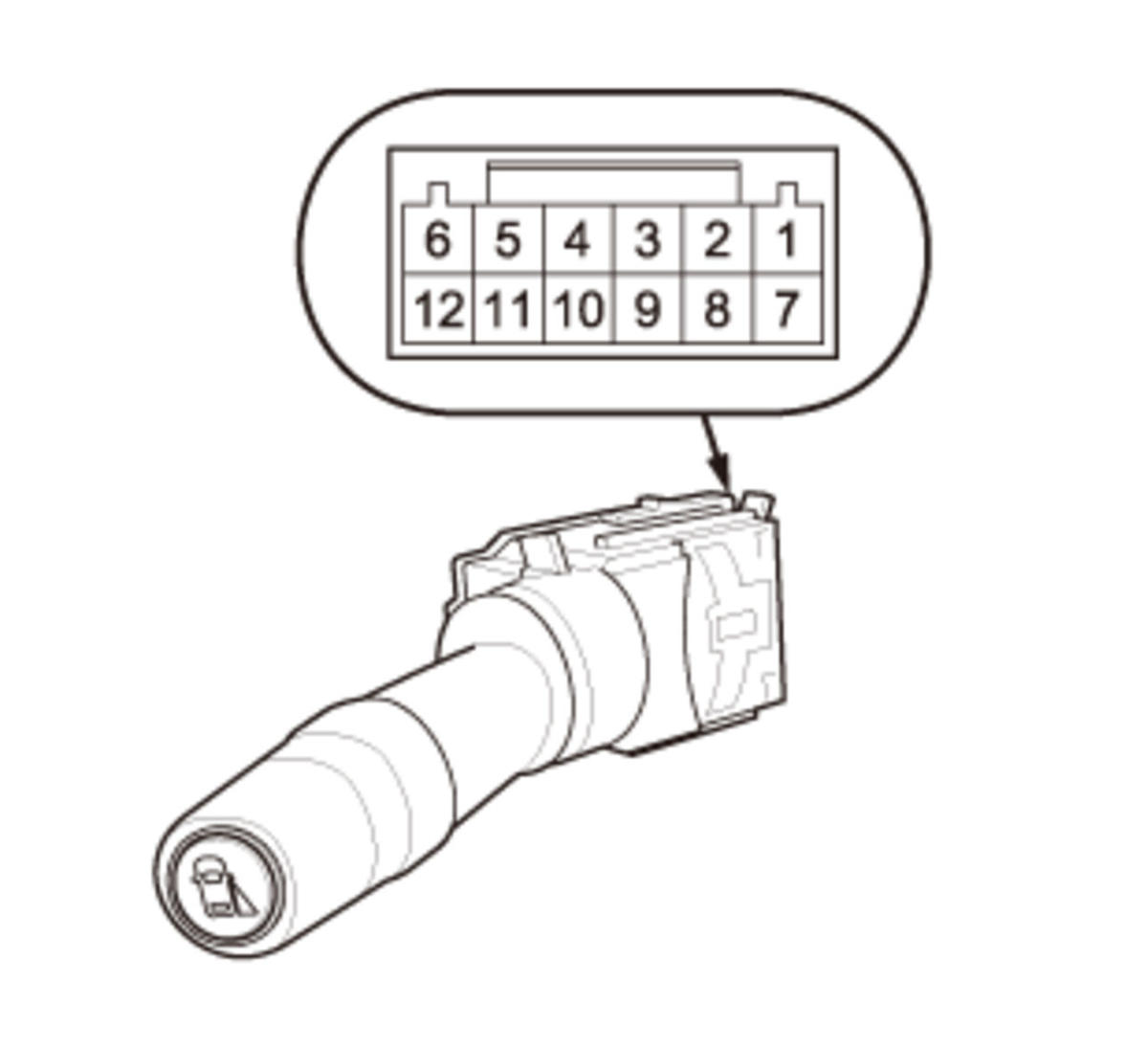

    		 1. Check for continuity between the combination light switch 12P connector (male terminals) terminals in each switch position according to the table in illustration.
