Driving Assistance Warning System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

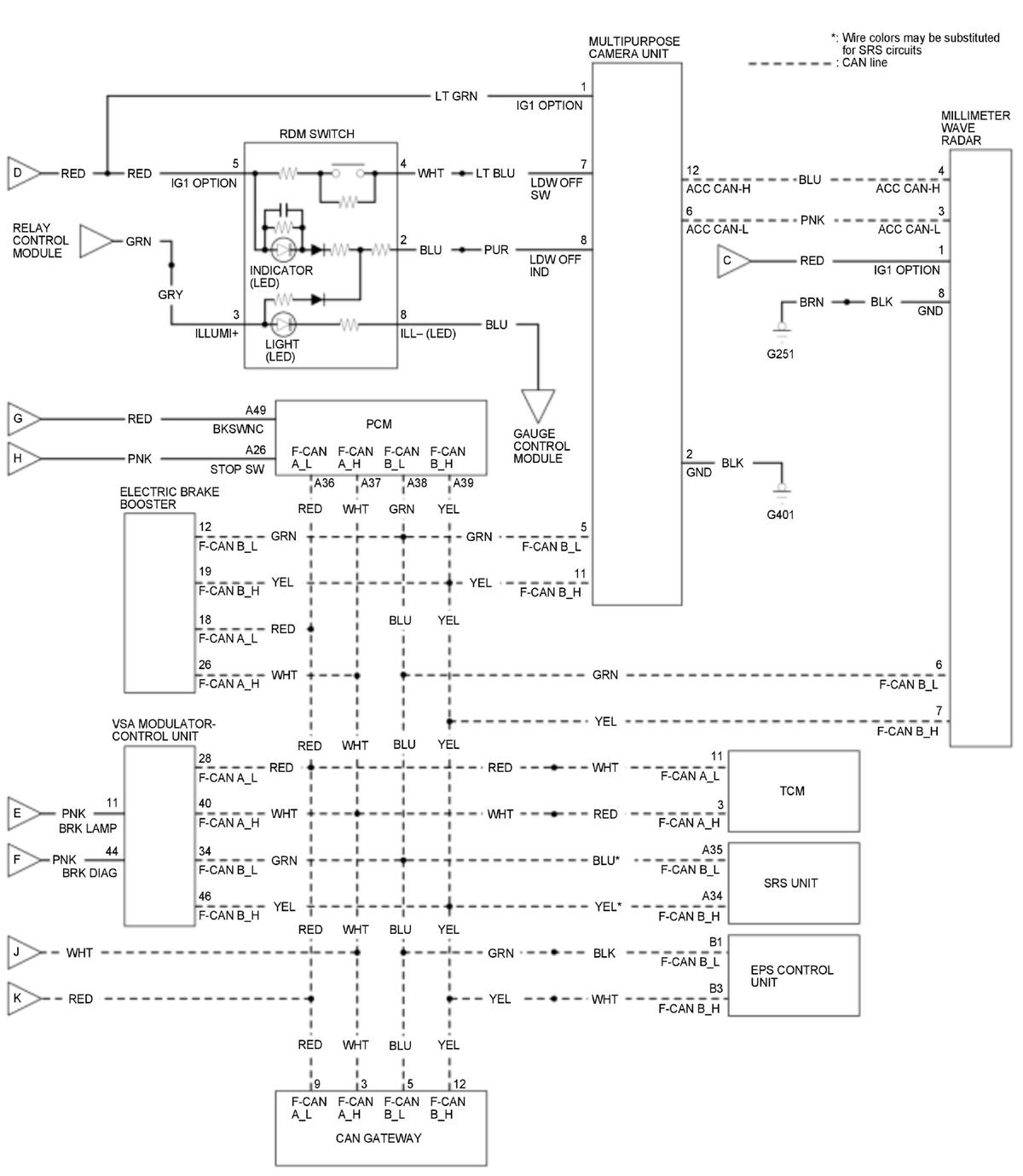

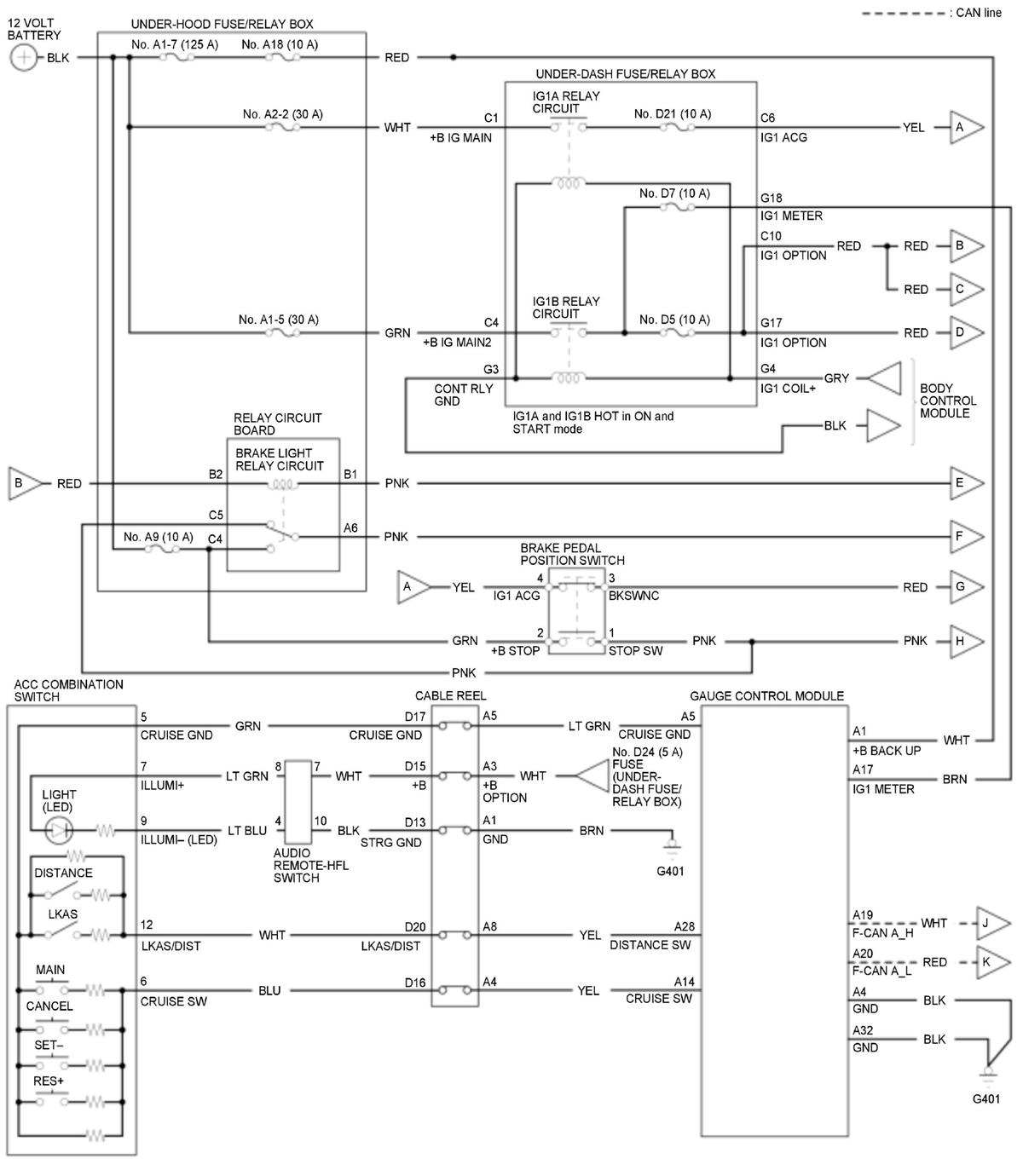

Road Departure Mitigation Circuit Diagram(Without Auto Idle Stop System)
Road Departure Mitigation Circuit Diagram(Without Auto Idle Stop System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
