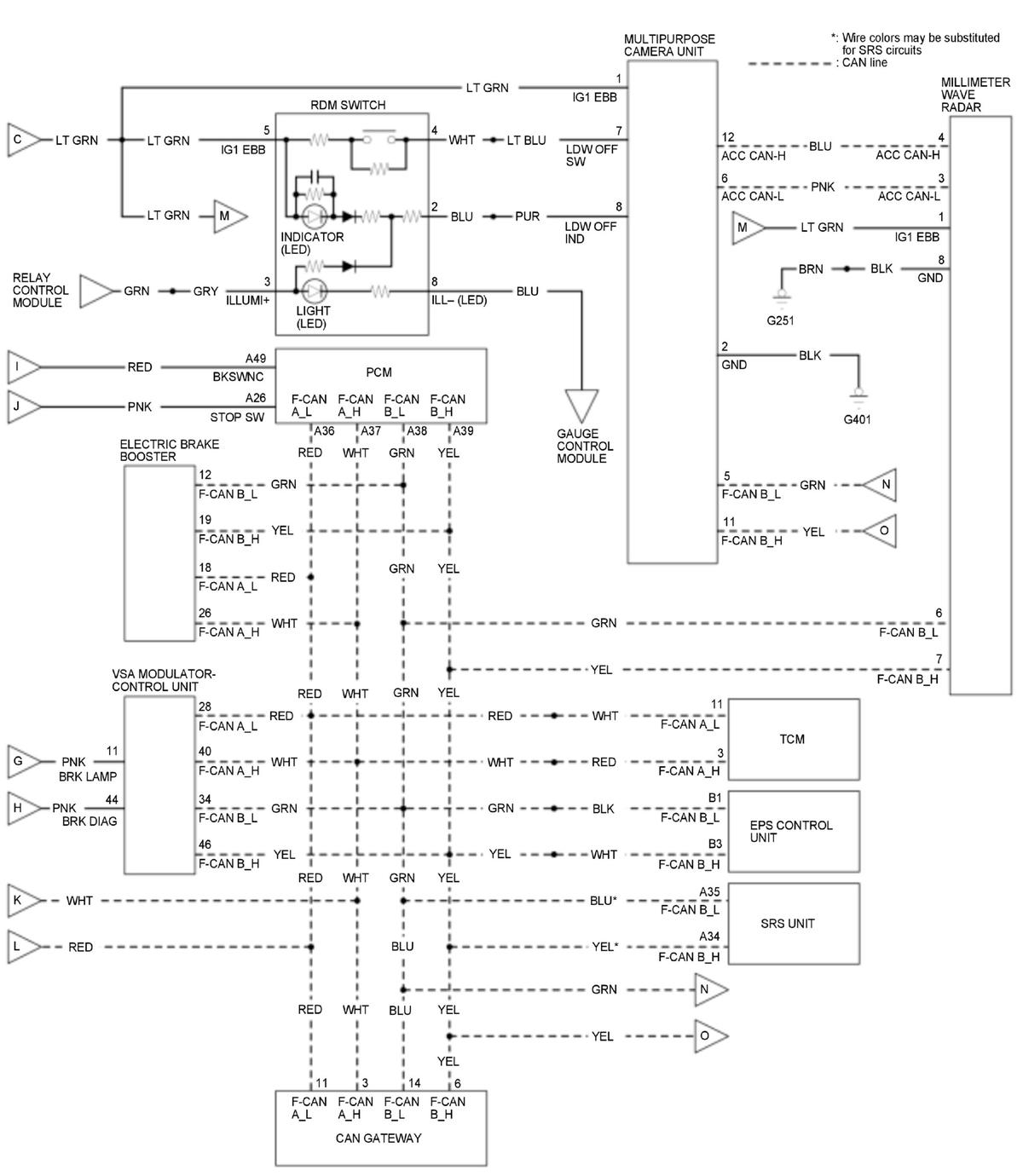

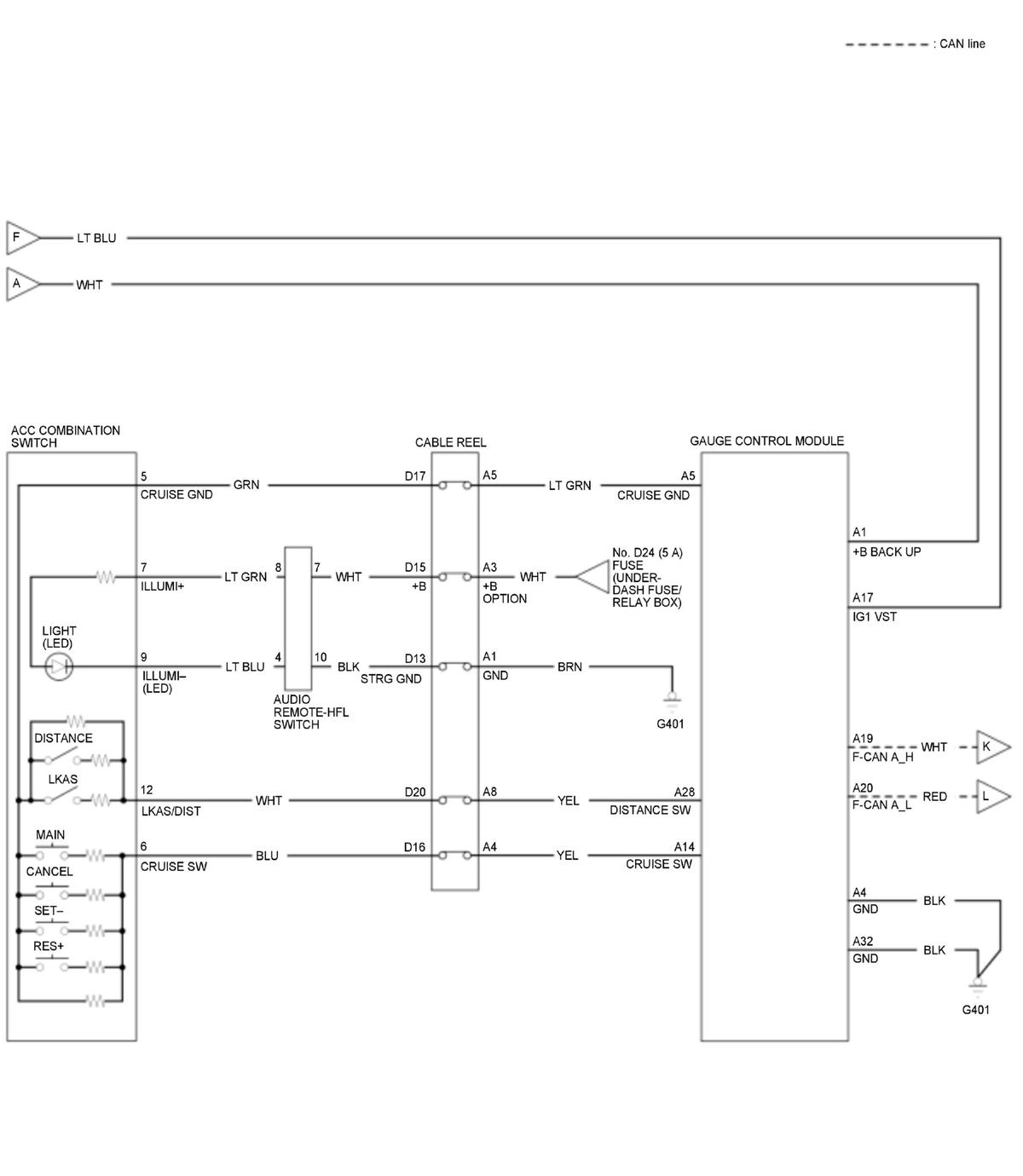

Road Departure Mitigation Circuit Diagram(With Auto Idle Stop System) (2020 2021)

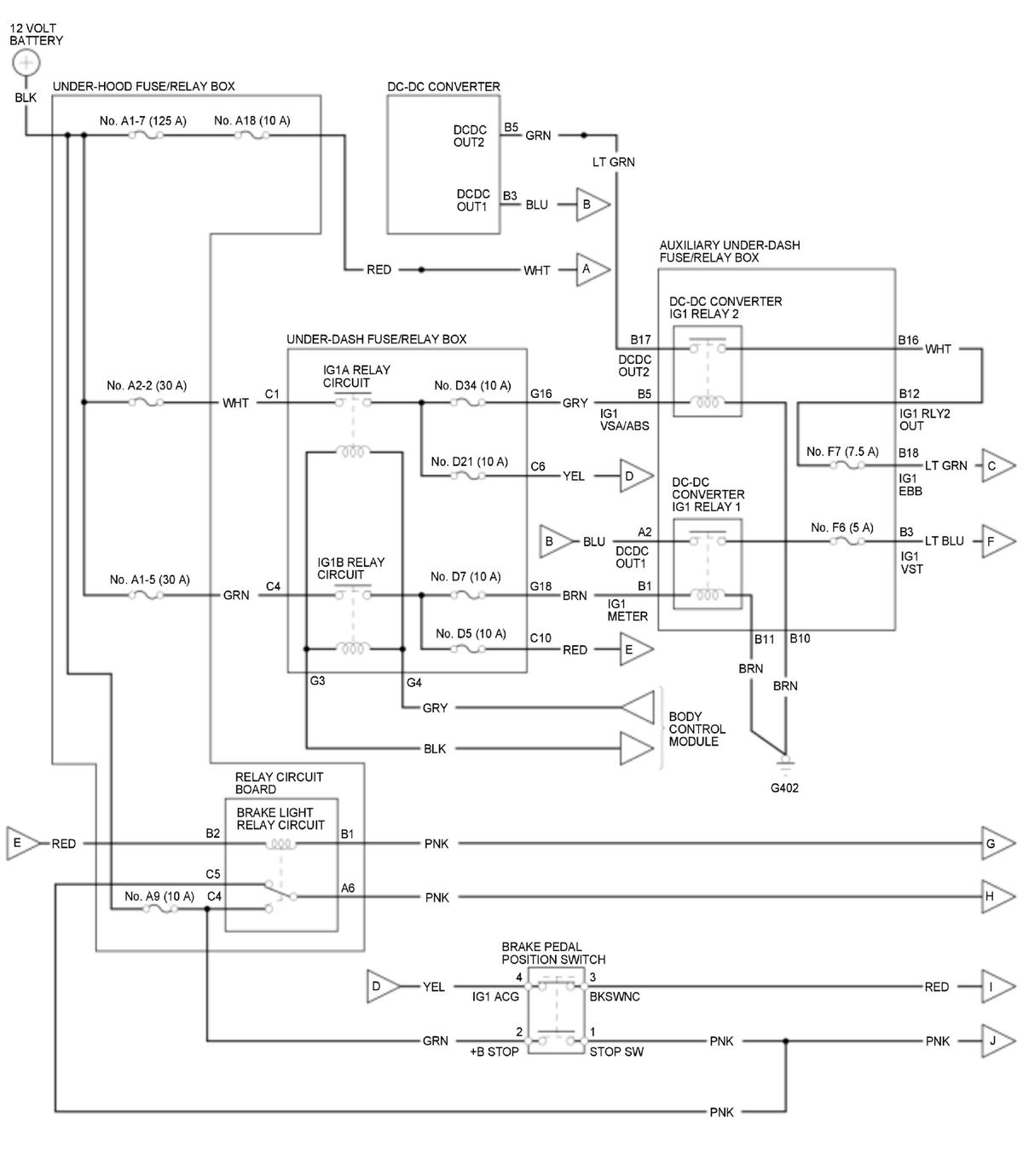

With keyless access system

Courtesy of HONDA, U.S.A., INC.

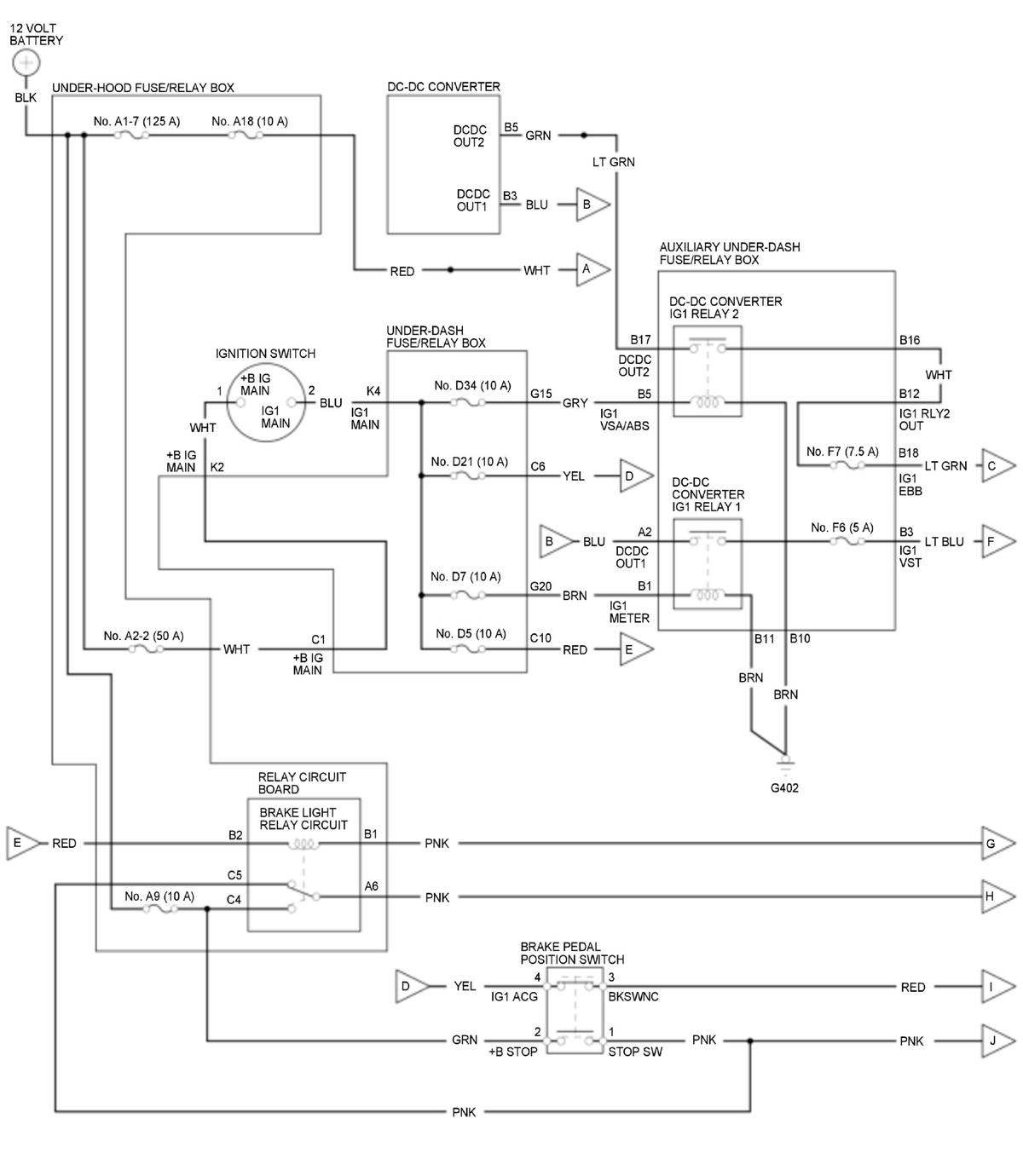

Without keyless access system

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
