Millimeter Wave Radar Aiming: Notes

Special Tools Required

Image	Description/Tool Number
Courtesy of HONDA, U.S.A., INC.	Stand Set 07AAJ-STKA220*
Courtesy of HONDA, U.S.A., INC.	Stand 07AAJ-TK8A100*
Courtesy of HONDA, U.S.A., INC.	Reflector Set 07AAJ-STKA200*
Courtesy of HONDA, U.S.A., INC.	Alignment Set 07AAJ-STKA210
Courtesy of HONDA, U.S.A., INC.	Adaptive Speed Control Alignment Tool SPX 10243*

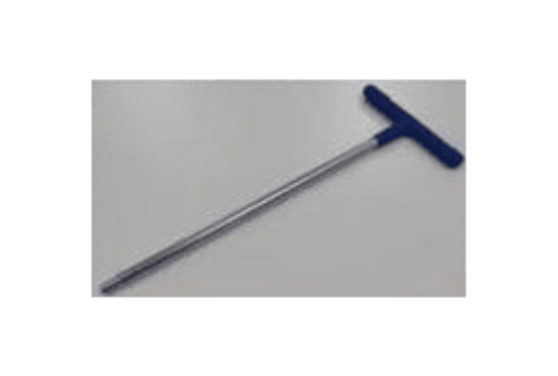

Courtesy of HONDA, U.S.A., INC.	ADJUSTER, RADAR 3.5MM 07AAA-TGVA100*

* (07AAJ-STKA220/07AAJ-TK8A100/07AAJ-STKA200): Stand 07AAJ-TK8A100 with Reflector Set 07AAJ-STKA200 or Stand Set 07AAJ-STKA220 can be used for aiming.* (SPX 10243/07AAA-TGVA100): Adaptive Speed Control Alignment Tool SPX 10243 or ADJUSTER, RADAR 3.5MM 07AAA-TGVA100 can be used for aiming.
