Millimeter Wave Radar Removal and Installation: Removal

Courtesy of HONDA, U.S.A., INC.

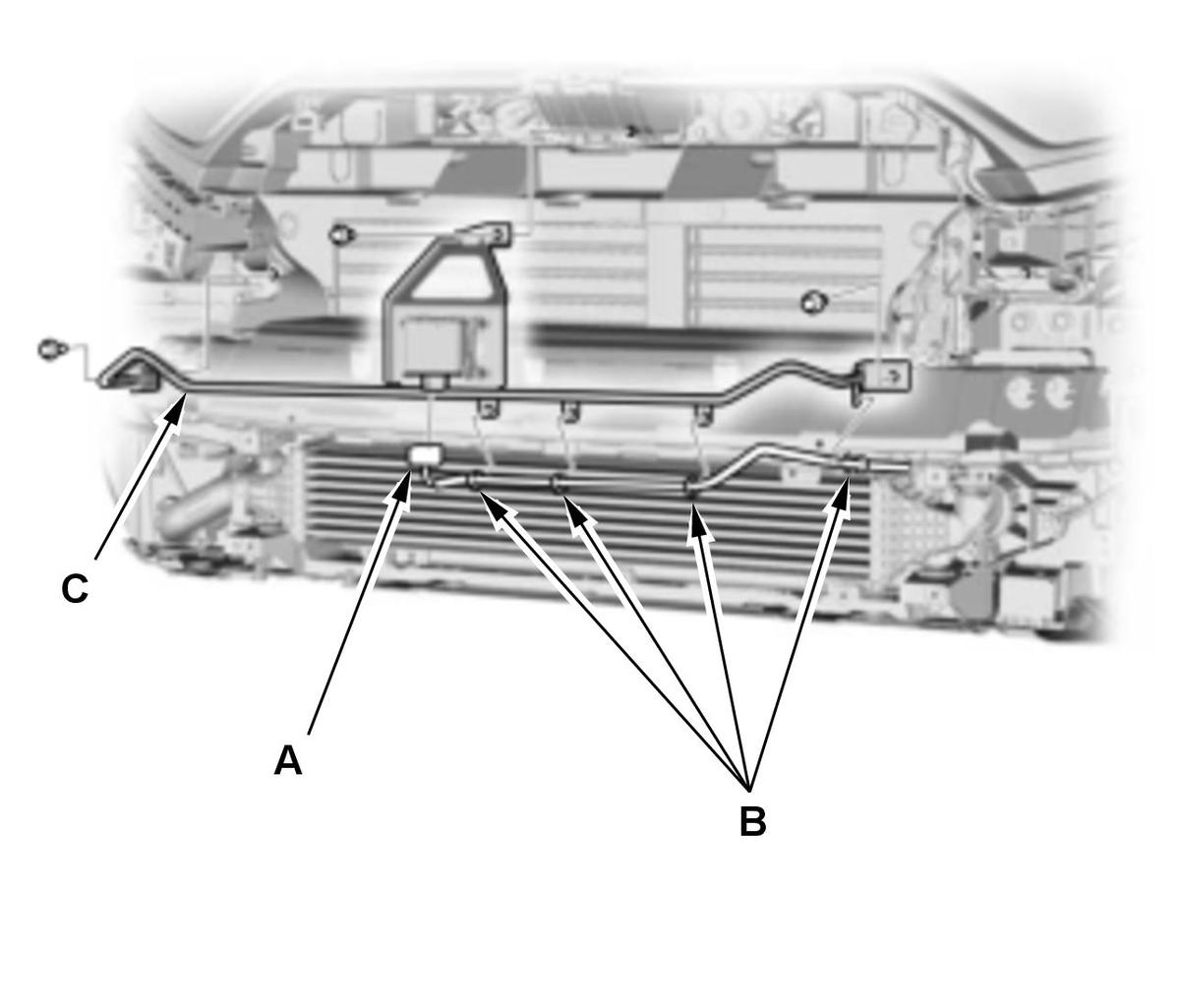

Millimeter Wave Radar Assembly Removal

1. Disconnect the connector (A).

2. Remove the harness clips (B).

3. Remove the millimeter wave radar assembly (C).

Courtesy of HONDA, U.S.A., INC.

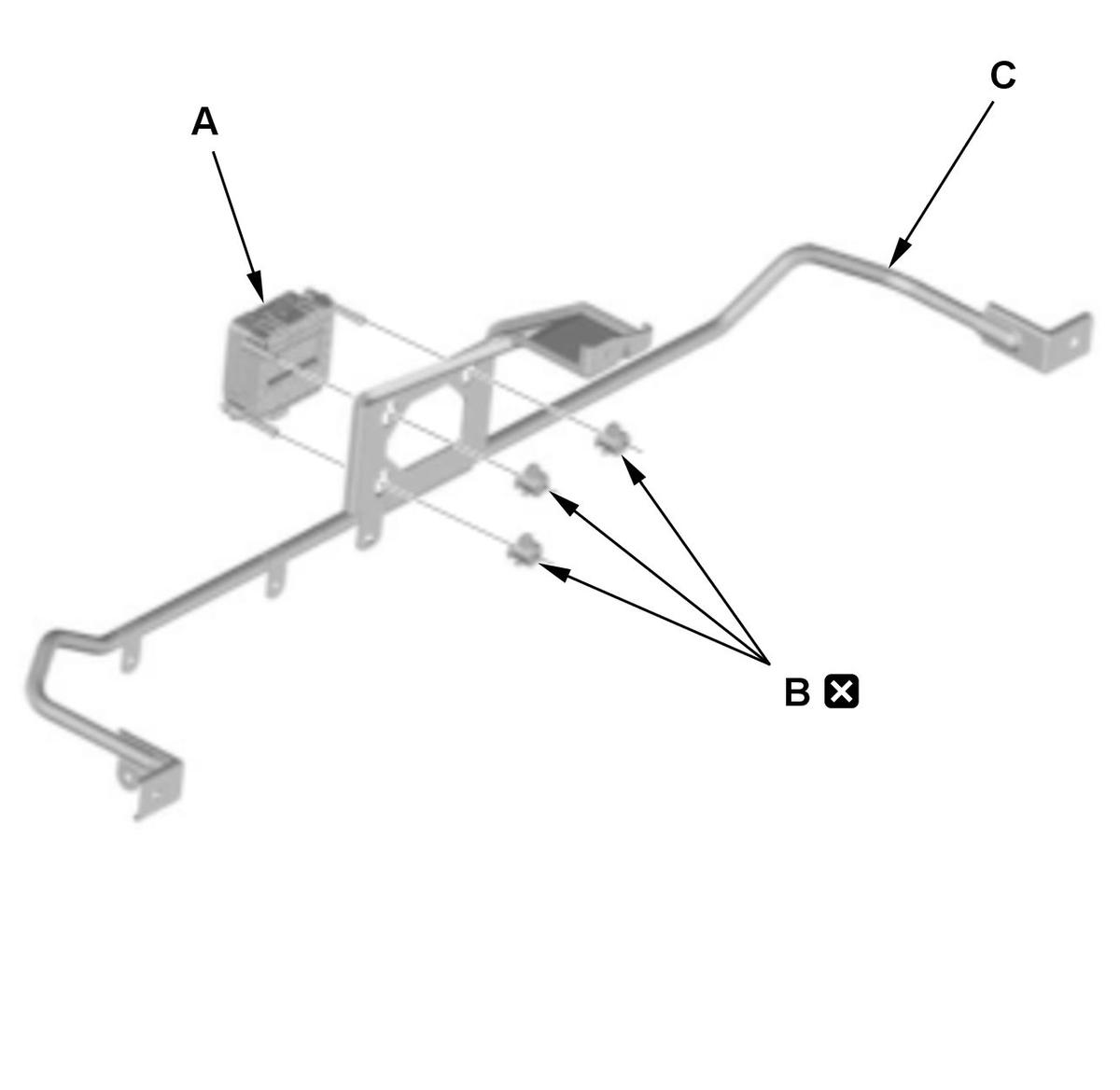

Millimeter Wave Radar Subassembly Removal

NOTE:  The millimeter wave radar subassembly (A) cannot be disassembled.

1. Rotate the three clips (B) counterclockwise.

2. Remove the millimeter wave radar subassembly from the clips.

3. Remove the clips from the radar bracket (C).
