DTC B18C6, B1E76

DTC B18C6  : Short to Power in the Left Side BSI Radar Unit Indicator Circuit DTC B1E76  : Short to Power in the Right Side BSI Radar Unit Indicator Circuit

NOTE: Before you troubleshoot, review the general troubleshooting information .

DTC (BSI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode, then wait for at least 2 seconds.

   -5. Check for DTCs with the HDS.

   DTC Description	DTC
   B18C6 Short to power in the left side BSI radar unit indicator circuit
   B1E76 Short to power in the right side BSI radar unit indicator circuit

   Is DTC B18C6 or B1E76 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting .

2. DTC check

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Disconnect the following connector.

   Left BSI alert indicator 2P connector

   Right BSI alert indicator 2P connector

   -5. Turn the vehicle to the ON mode.

   -6. Check for DTCs with the HDS.

   DTC Description	DTC
   B18C6 Short to power in the left side BSI radar unit indicator circuit
   B1E76 Short to power in the right side BSI radar unit indicator circuit
   B18C7 Open in the left side BSI radar unit indicator circuit
   B1E77 Open in the right side BSI radar unit indicator circuit

   Is DTC B18C6 change to DTC B18C7, or B1E76 change to DTC B1E77?

   YES

   Replace the appropriate BSI alert indicator .

   NO

   Go to step 3.

3. Shorted wire check (BSI L IND, BSI R IND line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Left side BSI radar unit 6P connector

   Right side BSI radar unit 6P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Left side BSI radar unit 6P connector: disconnected
   	Right side BSI radar unit 6P connector: disconnected
   	Left BSI alert indicator 2P connector: disconnected
   	Right BSI alert indicator 2P connector: disconnected

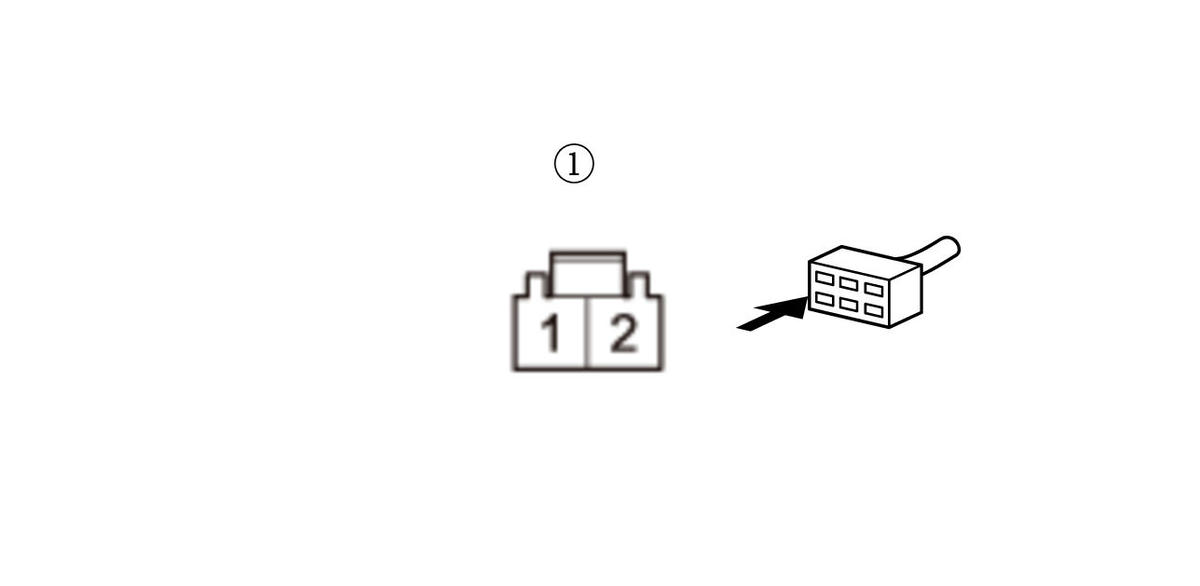

   Test point 1	Left BSI alert indicator 2P connector (female terminals) No. 1:
   Test point 2	Body ground

   Test point 1	Right BSI alert indicator 2P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Repair a short to power between the BSI alert indicator and the BSI radar unit.

   NO

   Replace the appropriate BSI radar unit .
