DTC B18C5, B1E75

DTC B18C5  : Short to GND in the Left Side BSI Radar Unit Indicator Circuit DTC B1E75  : Short to GND in the Right Side BSI Radar Unit Indicator Circuit

NOTE: Before you troubleshoot, review the general troubleshooting information .

DTC (BSI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode, then wait for at least 2 seconds.

   -5. Check for DTCs with the HDS.

   DTC Description	DTC
   B18C5 Short to GND in the left side BSI radar unit indicator circuit
   B1E75 Short to GND in the right side BSI radar unit indicator circuit

   Is DTC B18C5 or B1E75 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting .

2. DTC check

   -1. Clear the DTC with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode.

   -3. Disconnect the following connectors.

   Left BSI alert indicator 2P connector

   Right BSI alert indicator 2P connector

   -4. Turn the vehicle to the ON mode.

   -5. Check for DTCs with the HDS.

   DTC Description	DTC
   B18C5 Short to GND in the left side BSI radar unit indicator circuit
   B1E75 Short to GND in the right side BSI radar unit indicator circuit
   B18C7 Open in the left side BSI radar unit indicator circuit
   B1E77 Open in the right side BSI radar unit indicator circuit

   Is DTC B18C5 change to DTC B18C7, or B1E75 change to DTC B1E77?

   YES

   Replace the appropriate BSI alert indicator .

   NO

   Go to step 3.

3. Shorted wire check (BSI L IND, BSI R IND line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

   Left side BSI radar unit 6P connector

   Right side BSI radar unit 6P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Left side BSI radar unit 6P connector: disconnected
   	Right side BSI radar unit 6P connector: disconnected
   	Left BSI alert indicator 2P connector: disconnected
   	Right BSI alert indicator 2P connector: disconnected

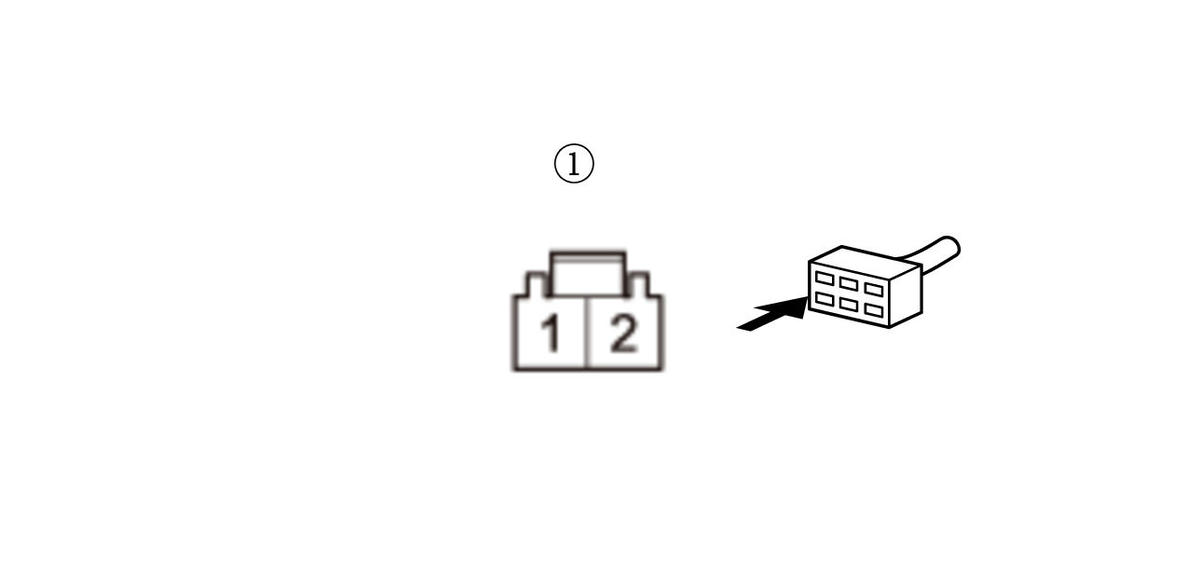

   Test point 1	Left BSI alert indicator 2P connector (female terminals) No. 1:
   Test point 2	Body ground

   Test point 1	Right BSI alert indicator 2P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the wire between the BSI alert indicator and the BSI radar unit.

   NO

   Replace the appropriate BSI radar unit .
