Cruise Control System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

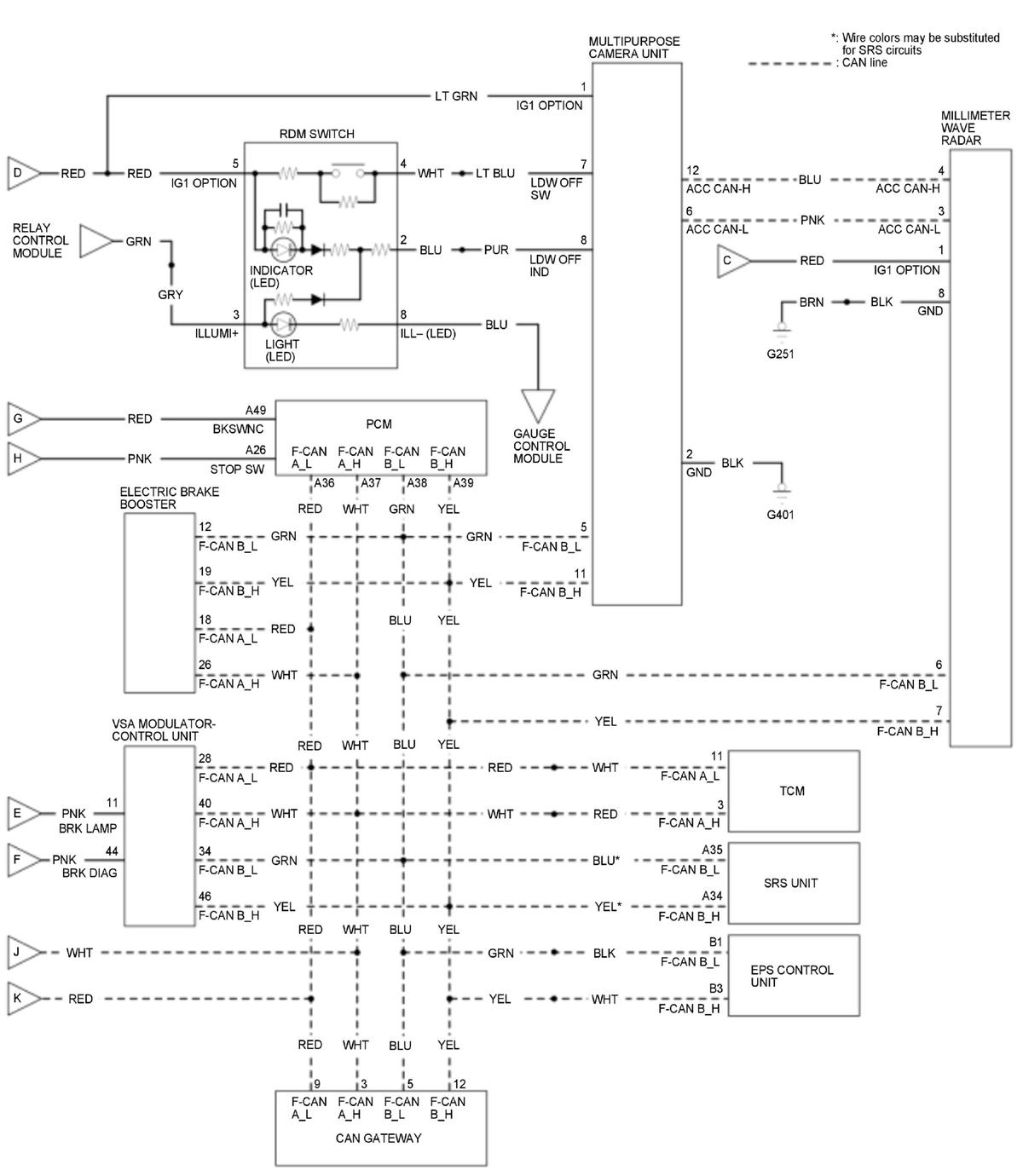

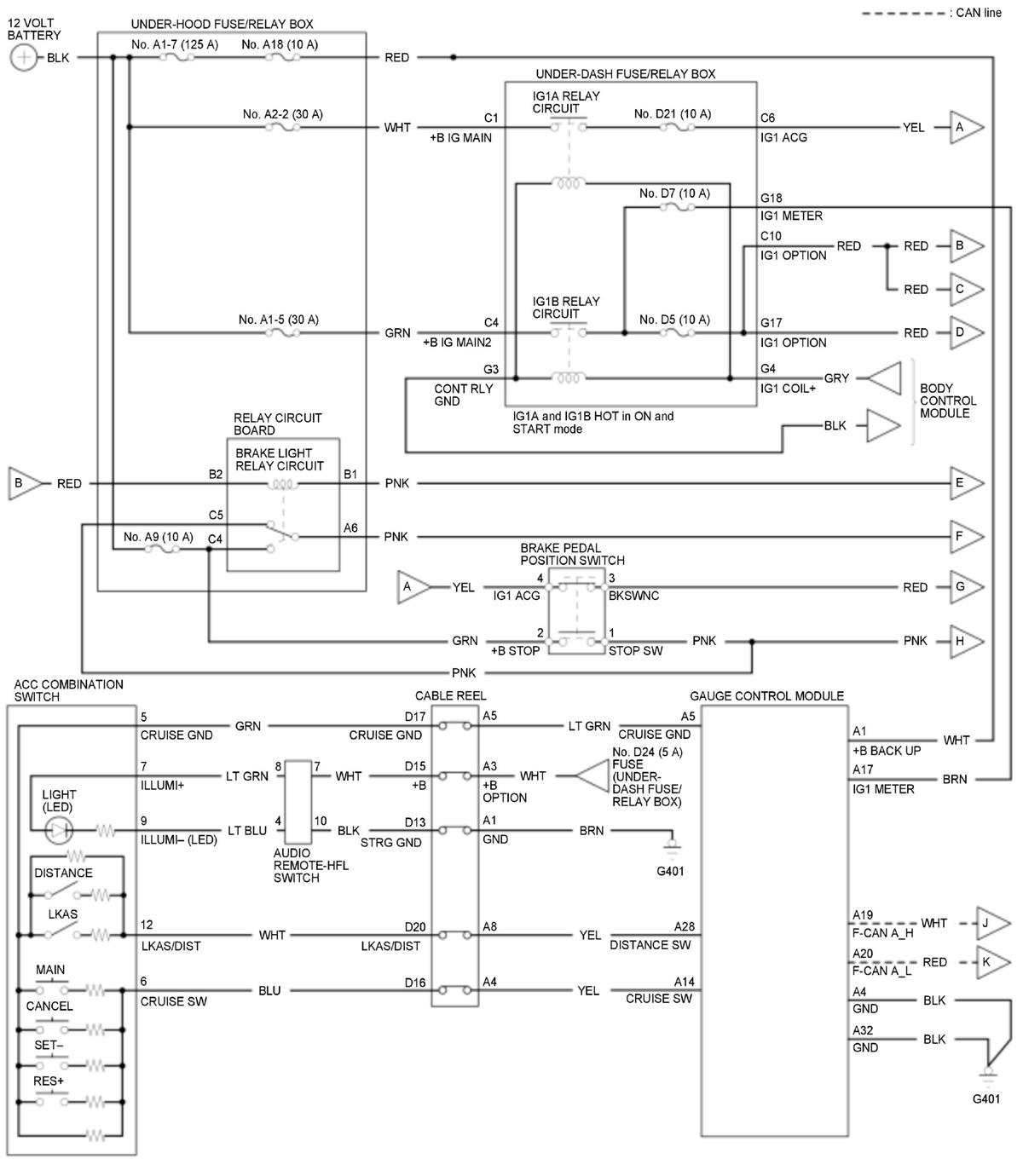

Lane Keeping Assist System (LKAS) Circuit Diagram (Without Auto Idle Stop System)
Lane Keeping Assist System (LKAS) Circuit Diagram (Without Auto Idle Stop System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
