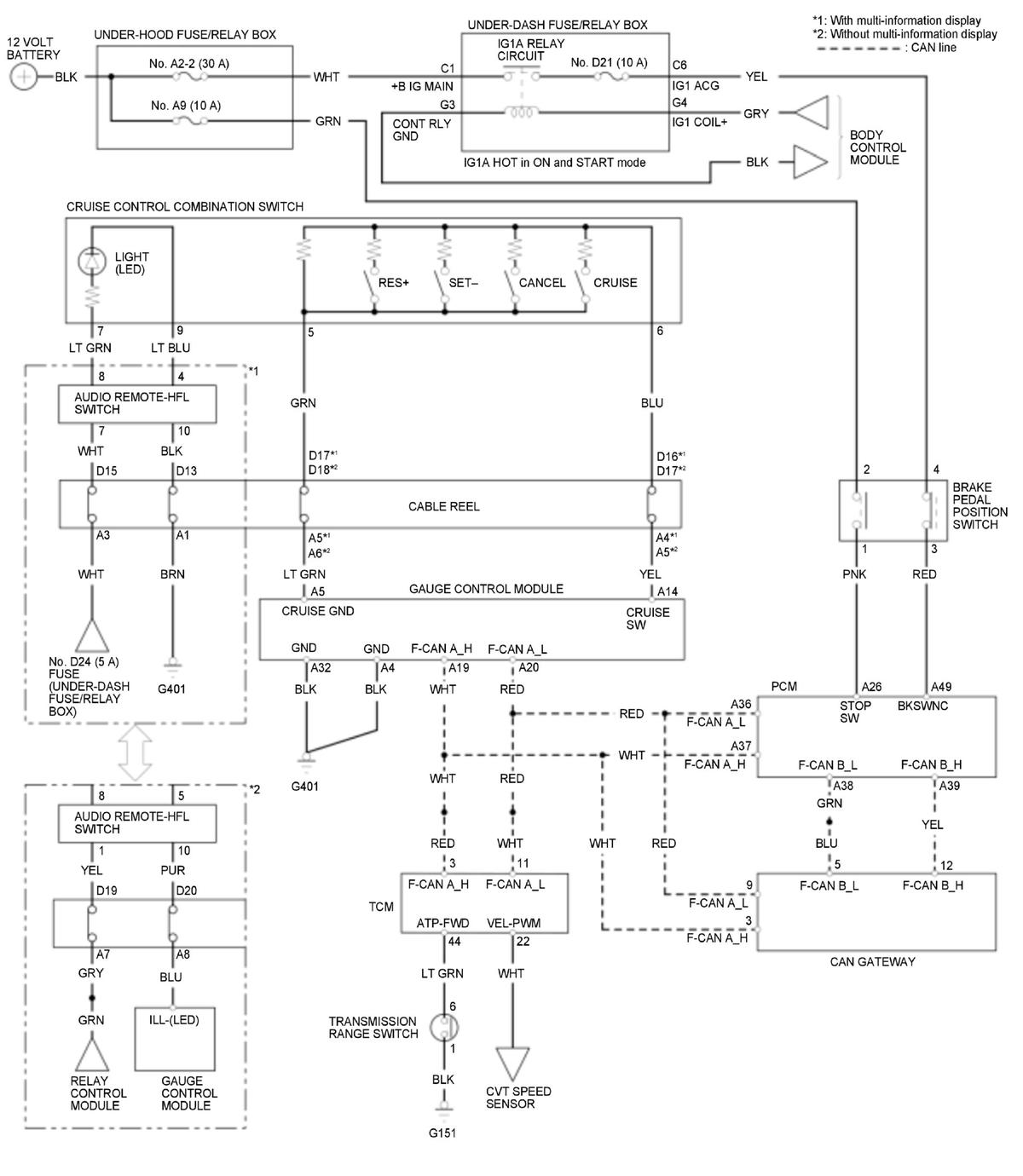

Cruise Control Circuit Diagram (1.5 L Engine) (2020 2021)

GHH423685

Courtesy of HONDA, U.S.A., INC.
