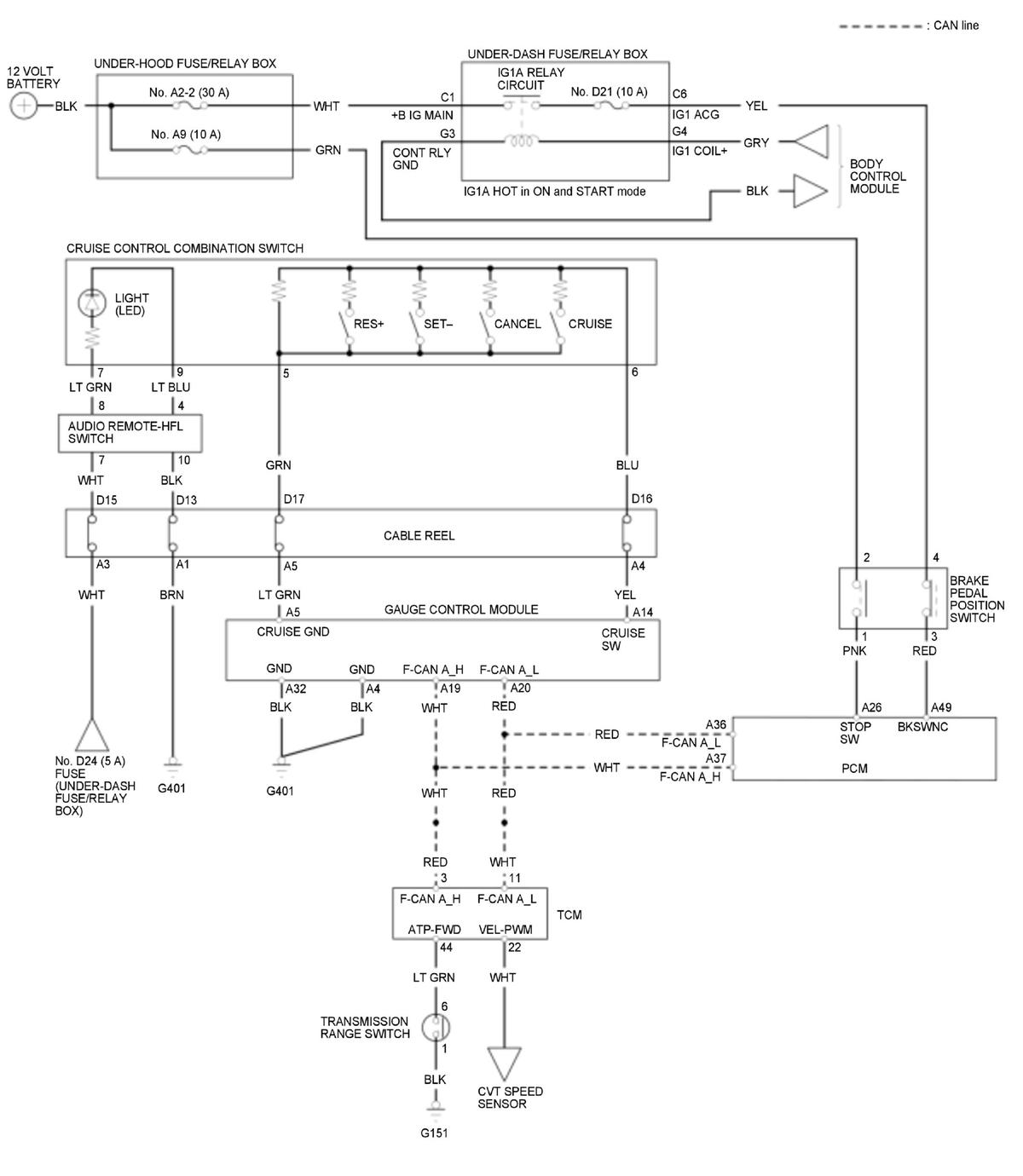

Cruise Control Circuit Diagram (1.5 L Engine) (2017 2018 2019)

GHH423684

Courtesy of HONDA, U.S.A., INC.
