Cruise Control System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

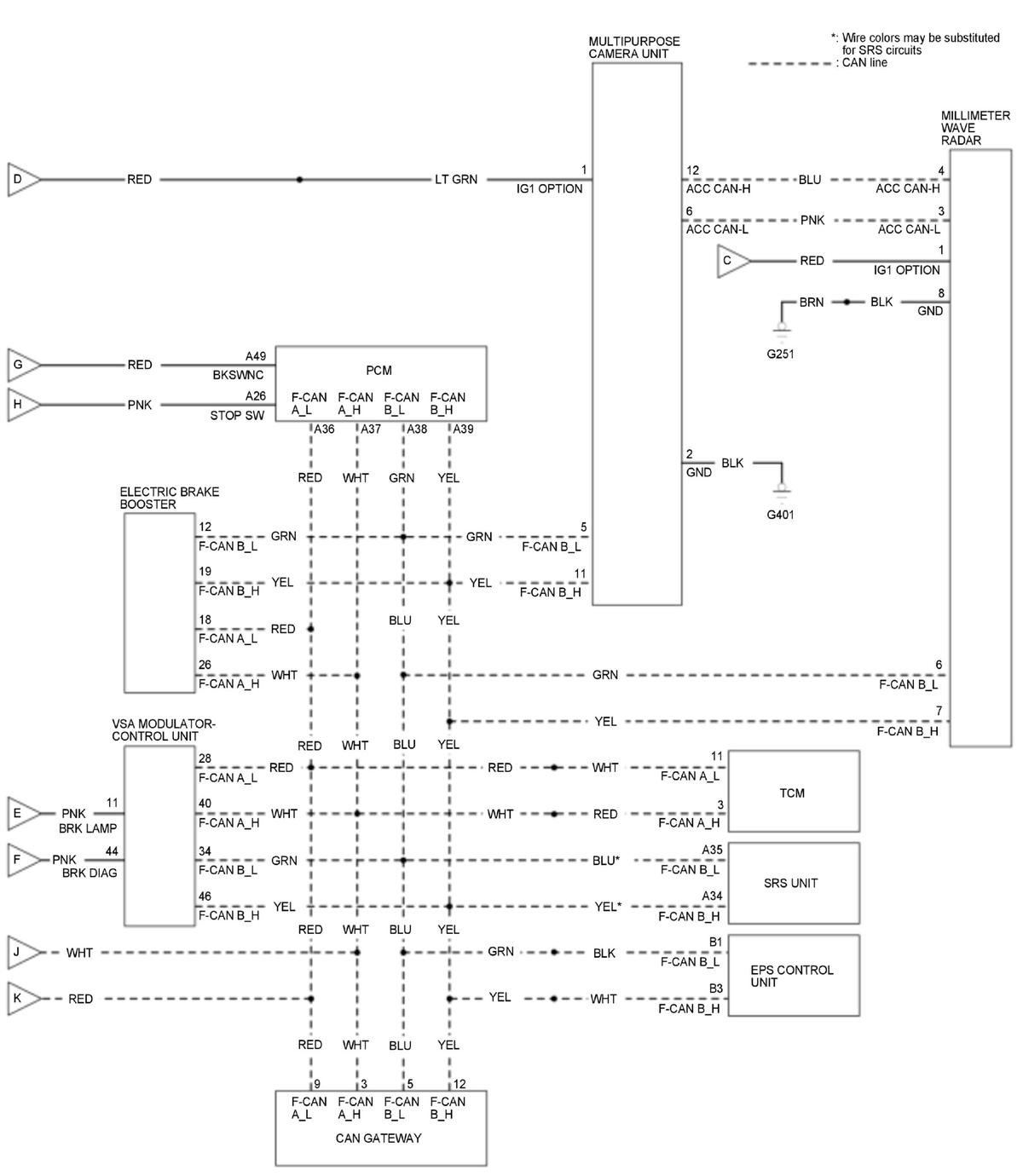

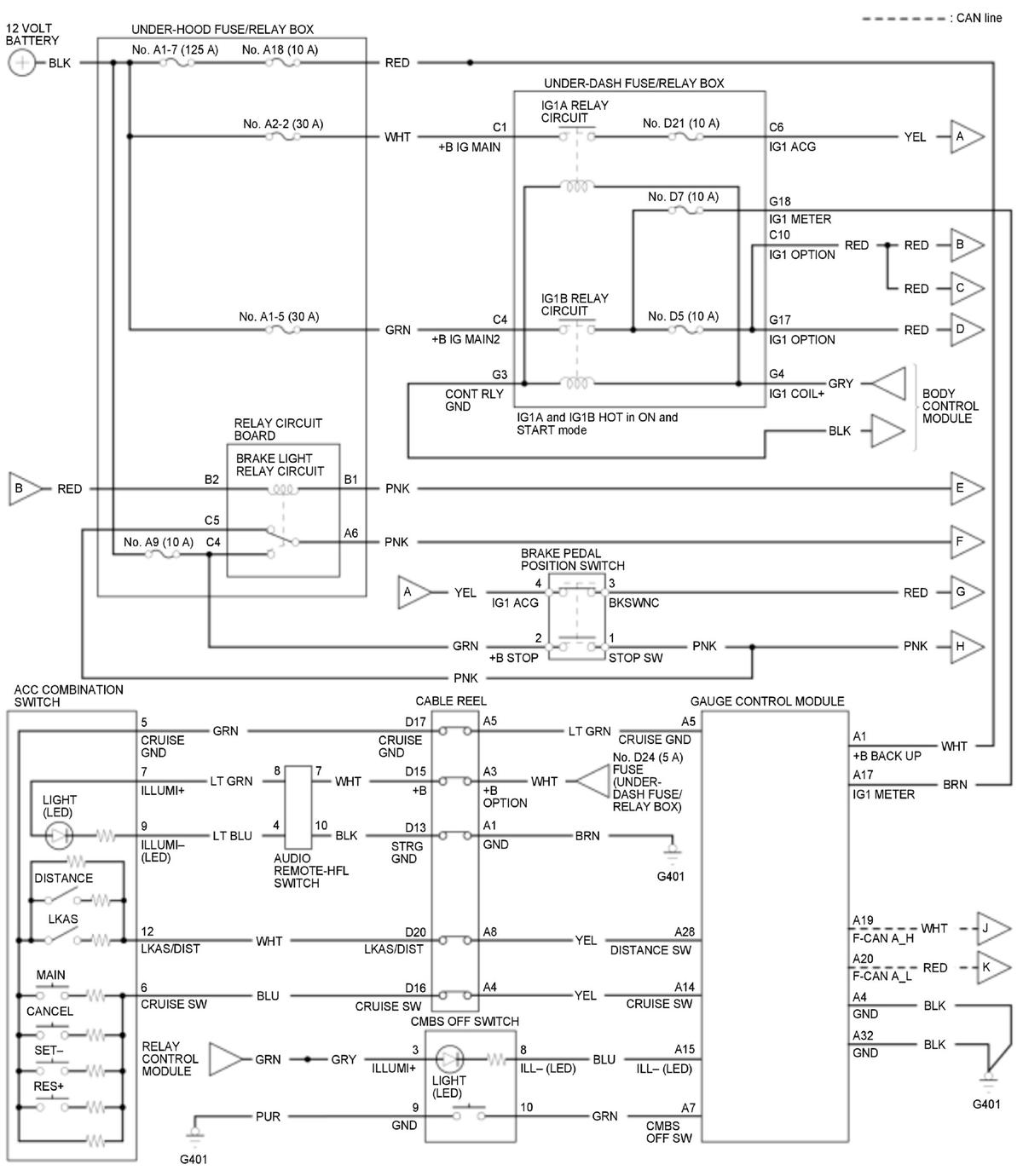

Collision Mitigation Braking System (CMBS) Circuit Diagram (Without Auto Idle Stop System)
Collision Mitigation Braking System (CMBS) Circuit Diagram (Without Auto Idle Stop System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
