Collision Mitigation Braking System (CMBS) Circuit Diagram (With Auto Idle Stop System) (2020 2021)

With keyless access system

GHH423678Courtesy of HONDA, U.S.A., INC.

Without keyless access system

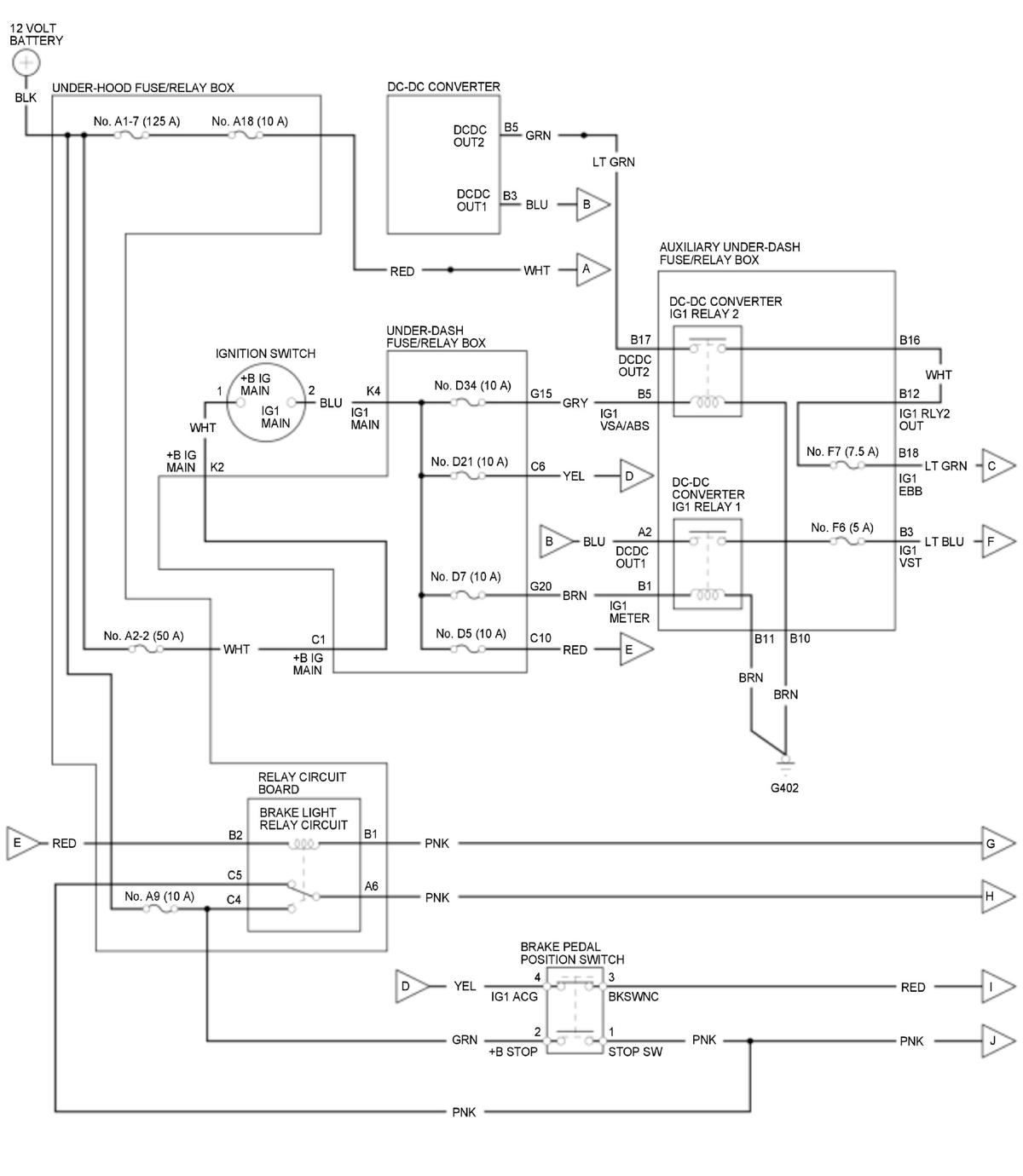

GHH423679Courtesy of HONDA, U.S.A., INC.

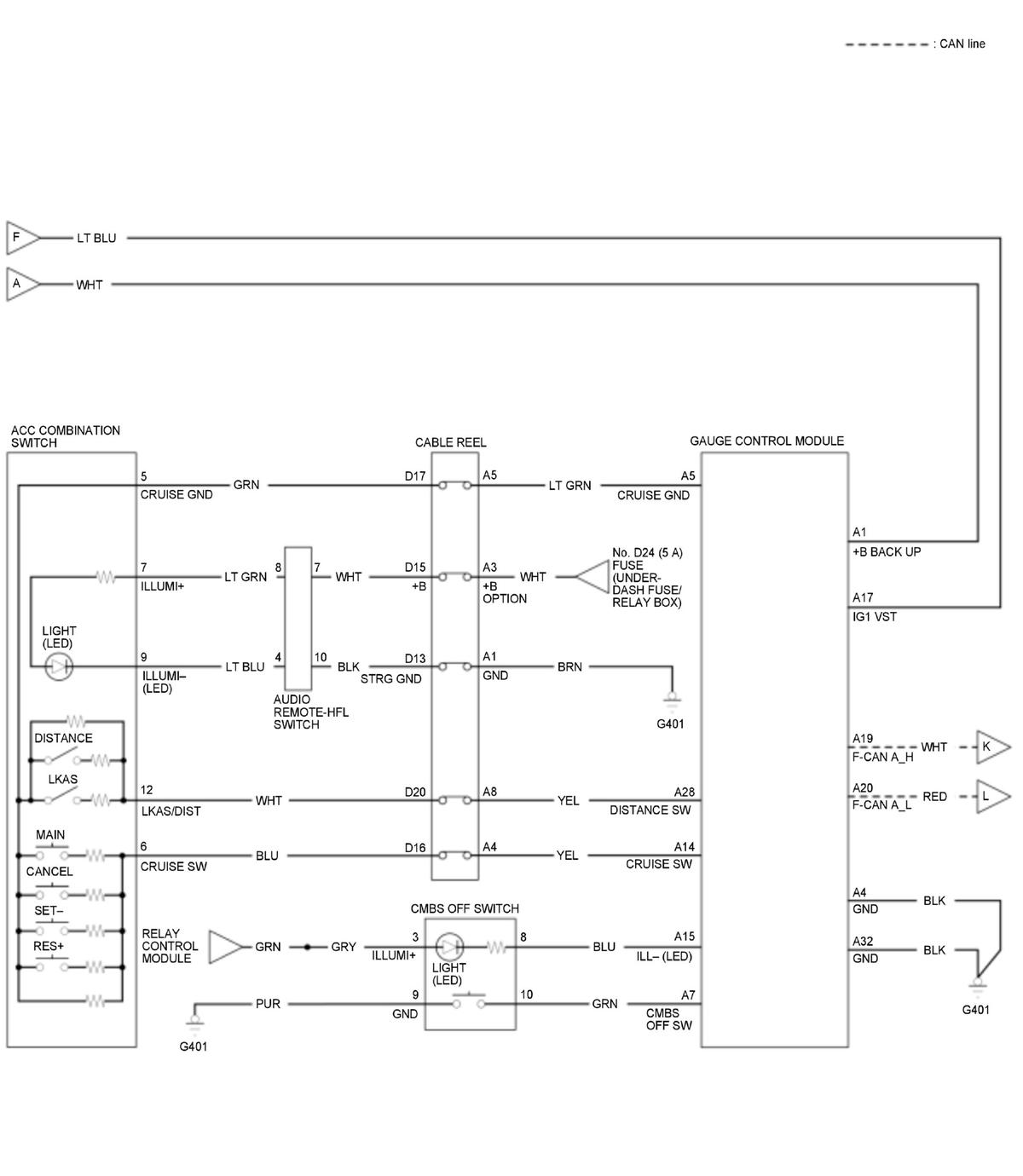

GHH423680Courtesy of HONDA, U.S.A., INC.

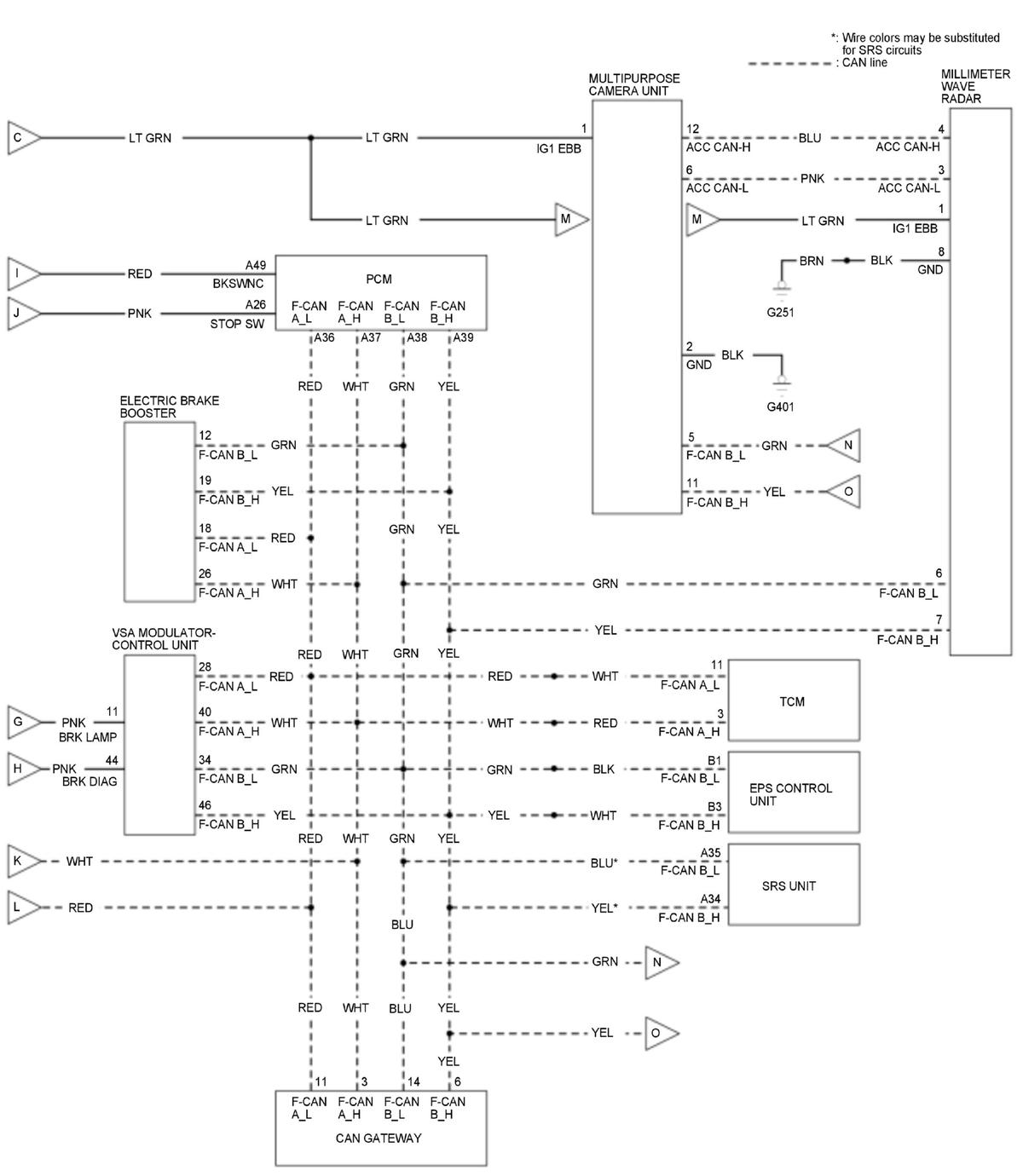

GHH423681Courtesy of HONDA, U.S.A., INC.
