Cruise Control System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

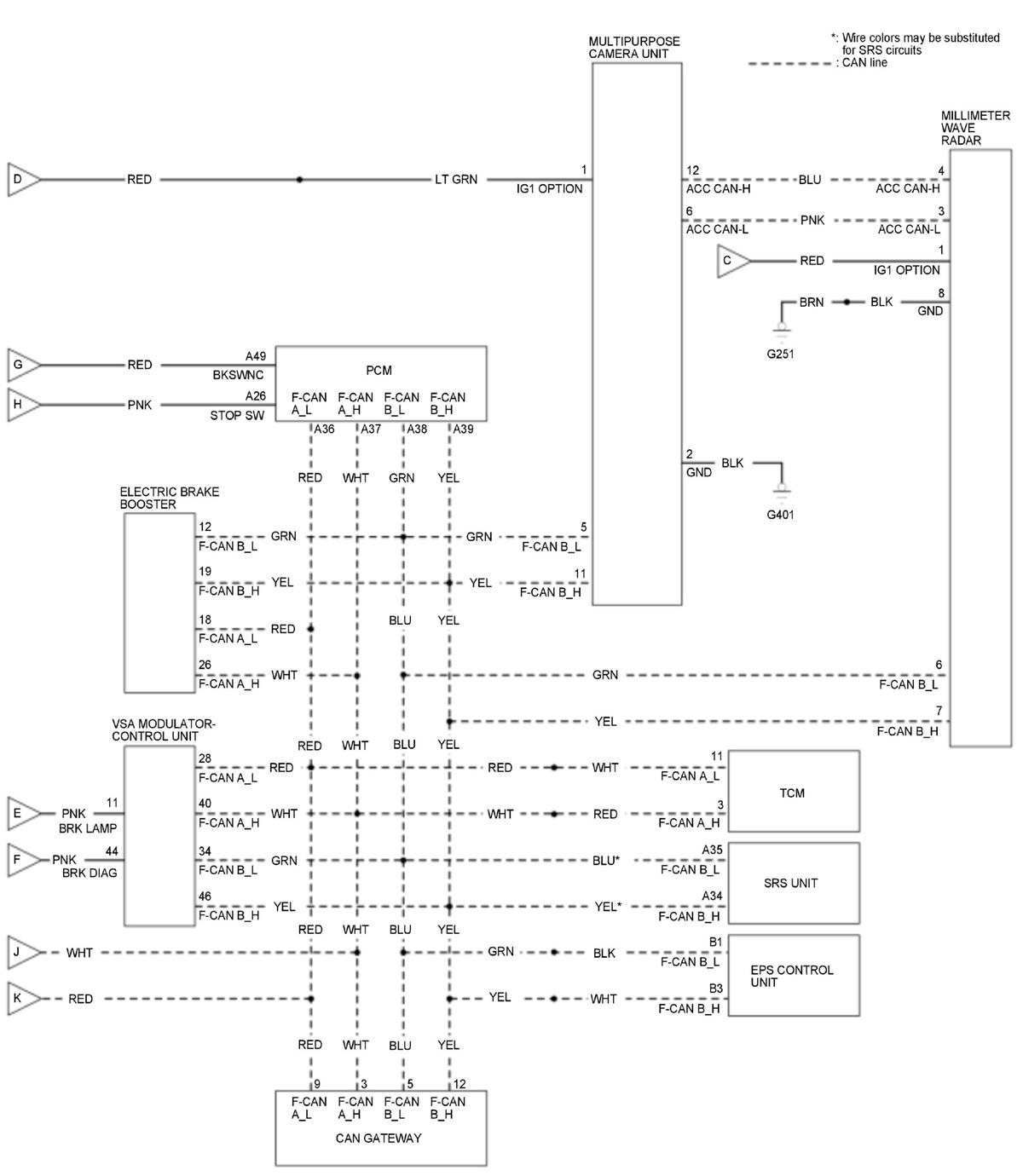

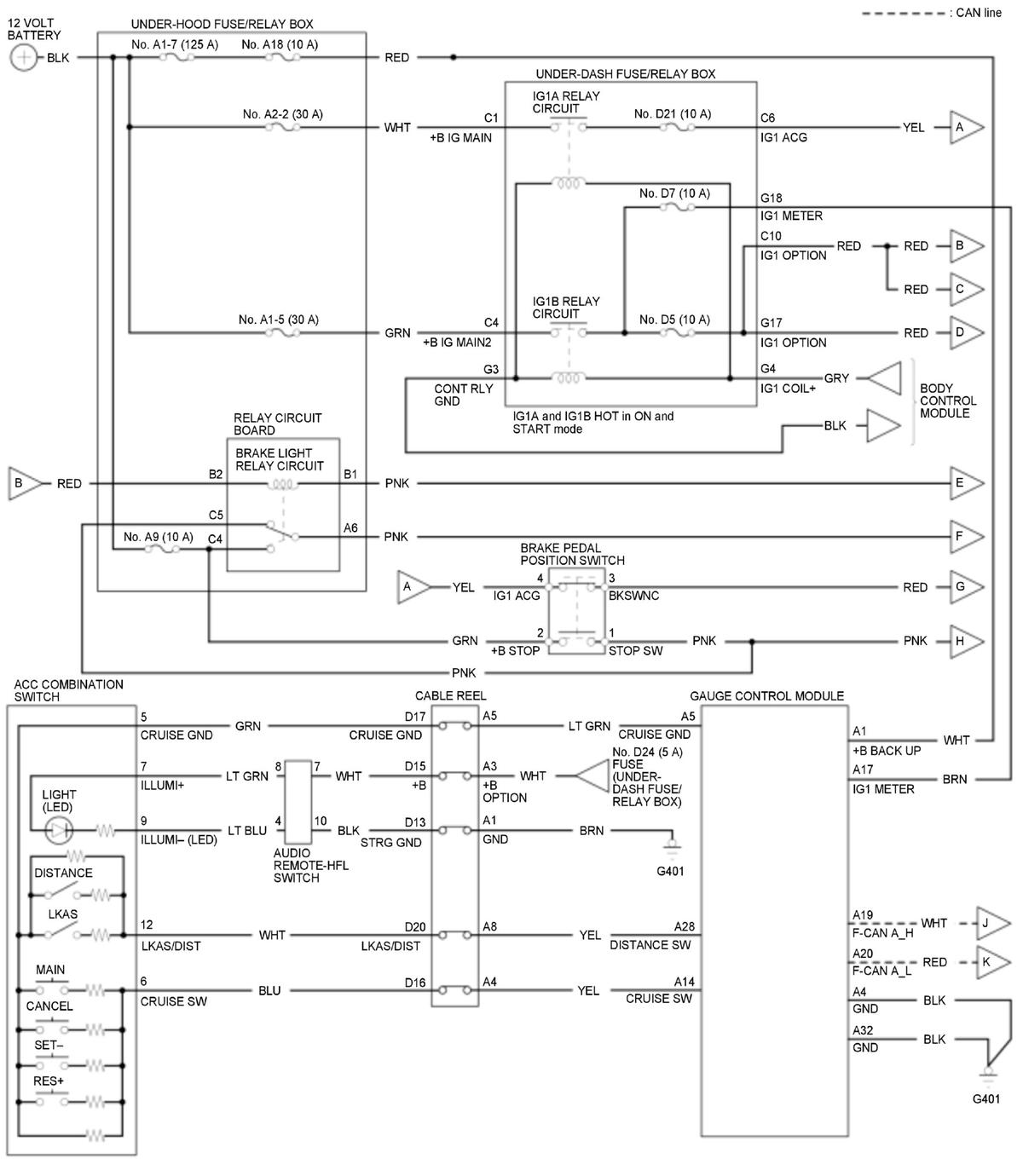

Adaptive Cruise Control (ACC) Circuit Diagram (Without Auto Idle Stop System)
Adaptive Cruise Control (ACC) Circuit Diagram (Without Auto Idle Stop System)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
