Cruise Control Combination Switch Removal, Installation, and Test: Test

Cruise Control Combination Switch - Test

Courtesy of HONDA, U.S.A., INC.

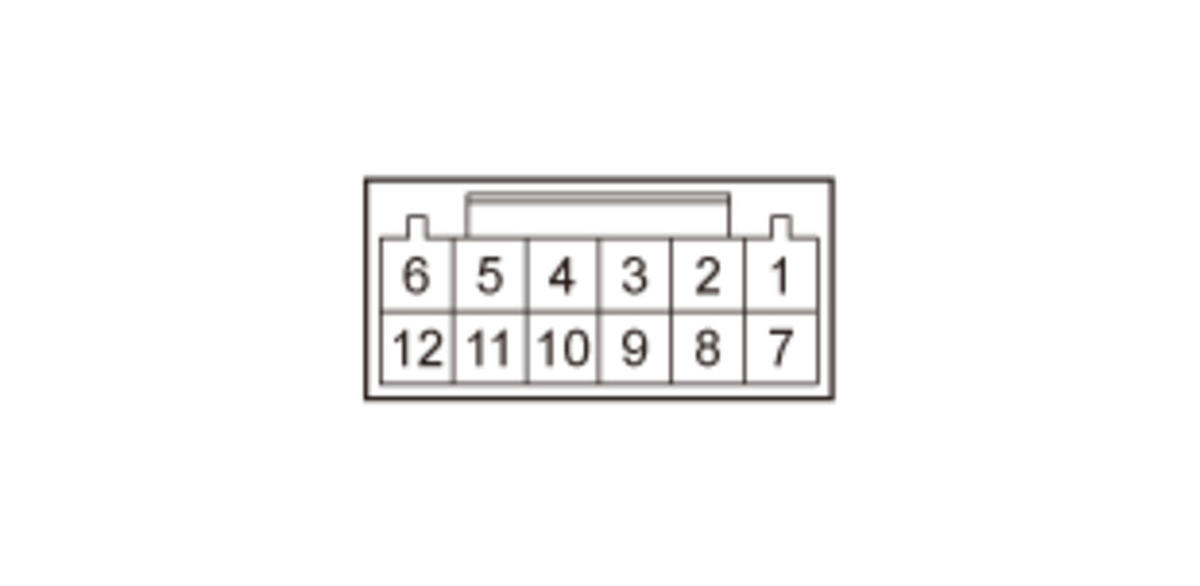

1. Measure the resistance between the cruise control combination switch 12P connector (male terminals) terminals No. 5 and No. 6 according to the chart.

If there is no resistance in one or more positions, replace the cruise control combination switch.

Position	Resistance
OFF (Released)	About 2.2 kΩ
CRUISE/MAIN (Pressed and held)	About 60 Ω
CANCEL (Pressed and held)	About 190 Ω
SET - (Pressed and held)	About 450 Ω
RES + (Pressed and held)	About 900 Ω

Courtesy of HONDA, U.S.A., INC.

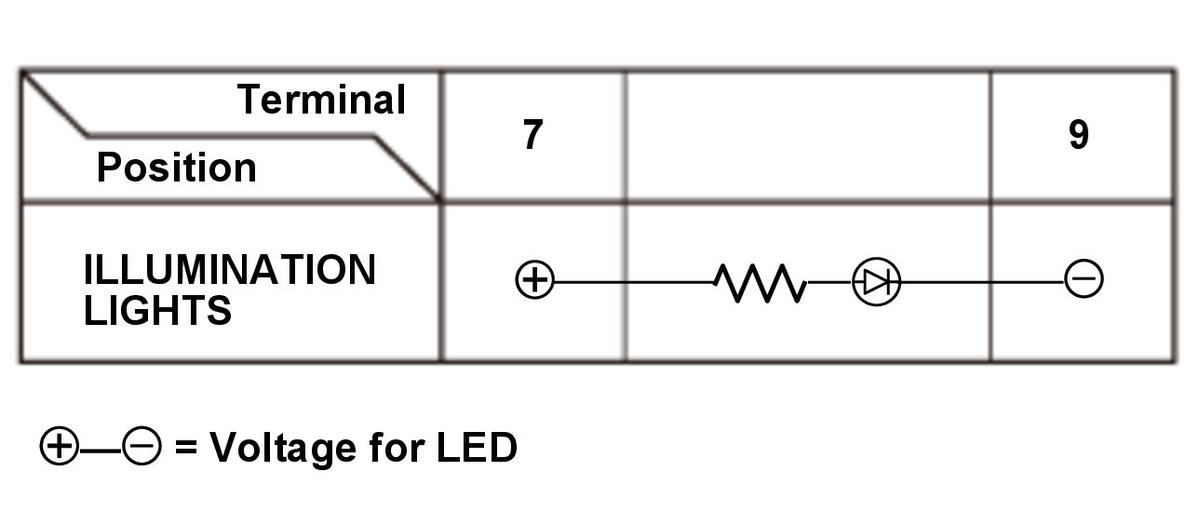

2. Check the LED for illumination by applying power and ground to the terminals according to the chart.

NOTE: Important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).If the results are not as specified, replace the cruise control combination switch.
