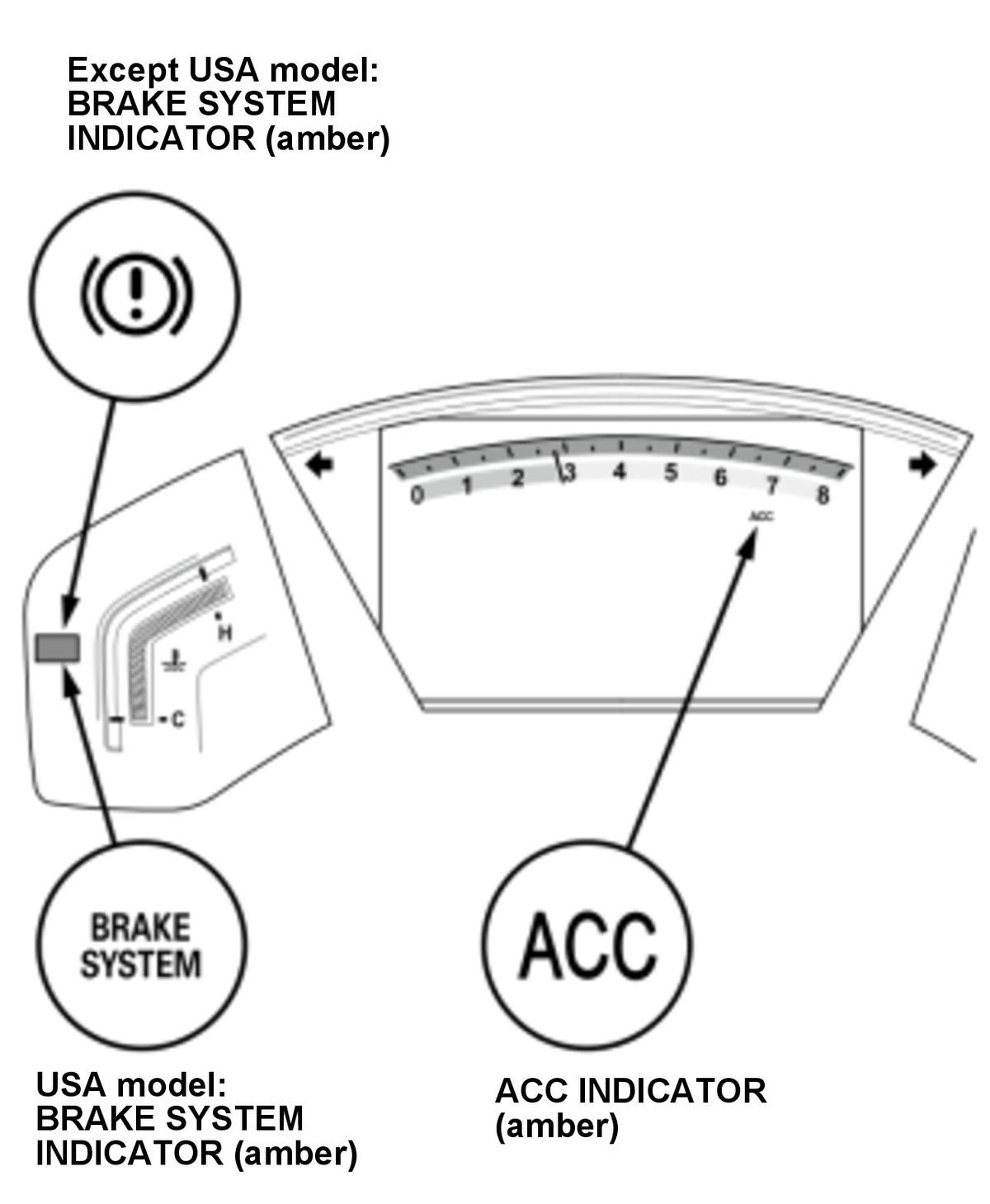

ACC Indicator (Amber)

When the ACC system detects a problem while operating, the ACC system stops working, then the ACC indicator and the brake system indicator (amber) stay on.

NOTE:

• For ACC function, review the Adaptive Cruise Control (ACC) Description .
• The ACC system communicates with other control units via F-CAN. For ACC system diagram, review the ACC System Diagram . If a connected unit malfunctions, the ACC system will not operate. In this case, both ACC indicator and connected unit indicator come on and stay on (except for the gauge control module).

Courtesy of HONDA, U.S.A., INC.
