Network Communication - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

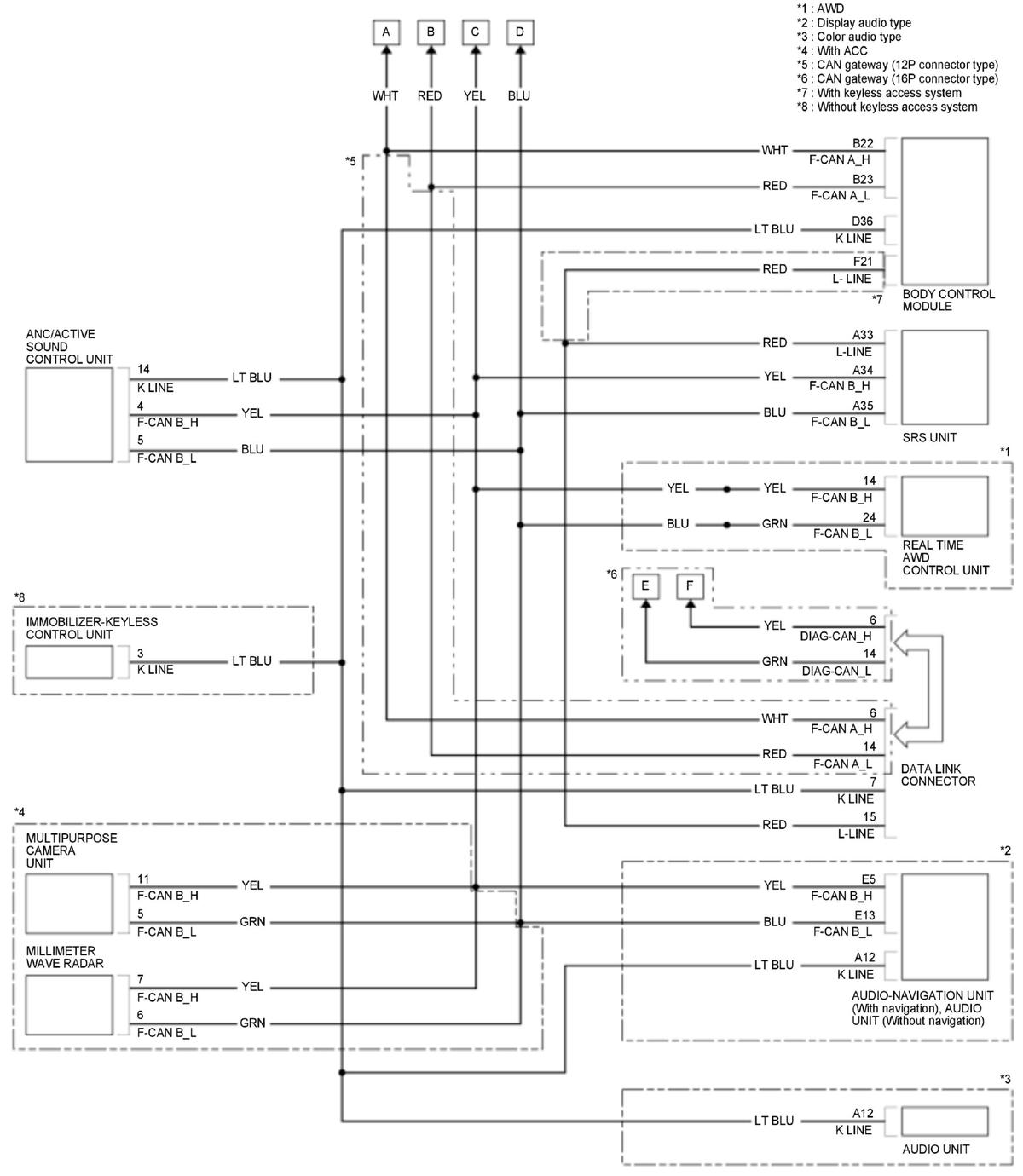

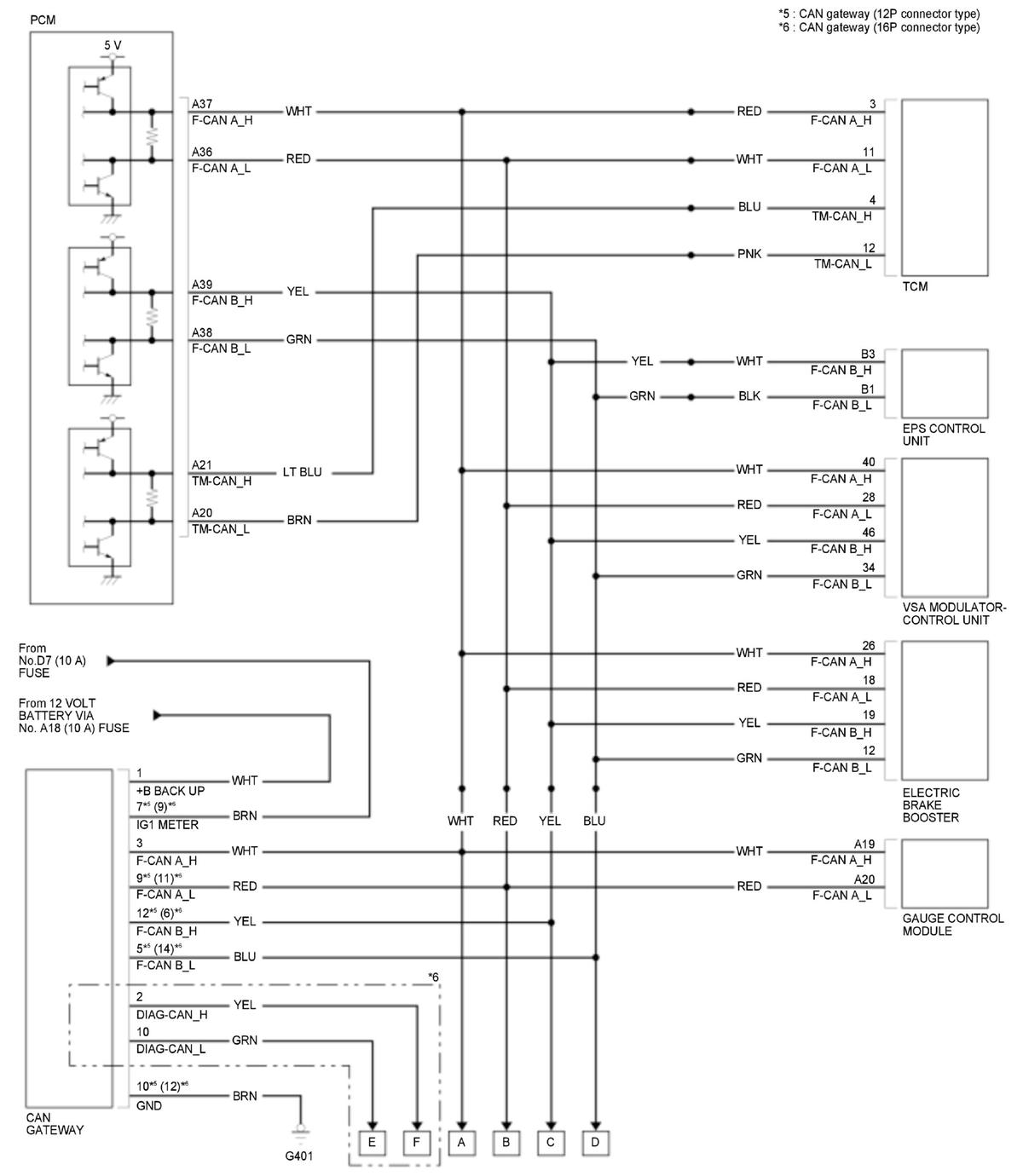

Communication Systems Circuit Diagram (CAN Gateway)
Communication Systems Circuit Diagram (CAN Gateway)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
