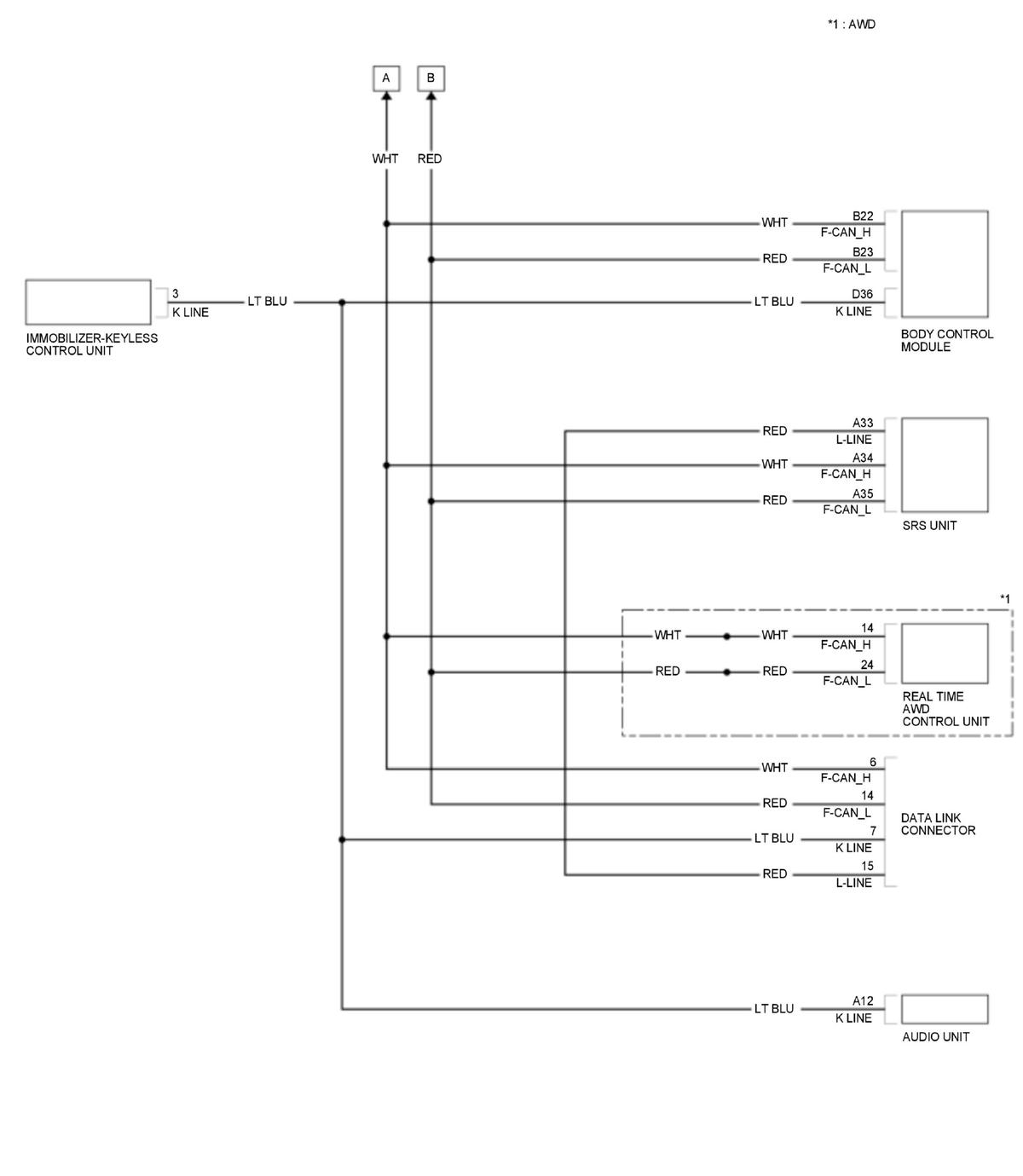

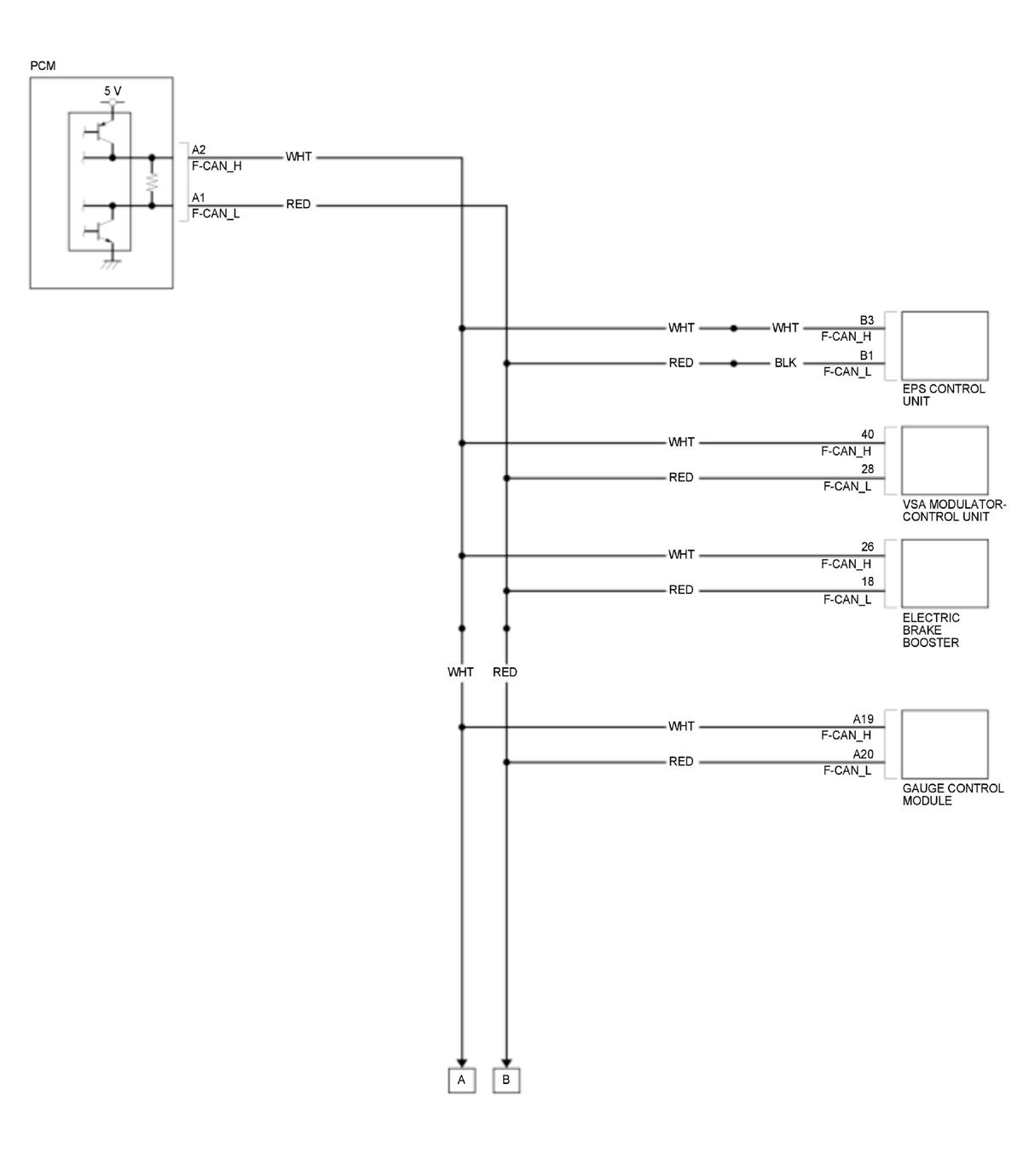

Communication Systems Circuit Diagram (2.4 L Engine) (2017 2018 2019)
Communication Systems Circuit Diagram (2.4 L Engine) (2017 2018 2019)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
