Power Seat Control Unit Connector for Inputs and Outputs
| Connector Index |
| Power Seat Control Unit Connector A (20P) |
| Power Seat Control Unit Connector B (12P) |

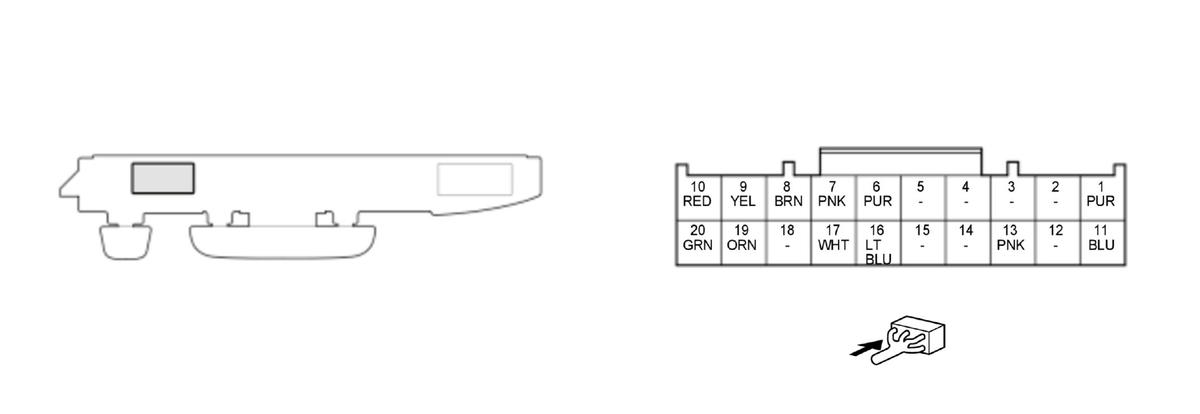

Power Seat Control Unit Connector A (20P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
Signal |
| 1 |
ATP-PBK |
Detects transmission in P position/mode signal |
With P position/mode: less than 0.2 VWithout P position/mode: about battery voltage |
| 2 |
--- |
Not used |
--- |
| 3 |
--- |
Not used |
--- |
| 4 |
--- |
Not used |
--- |
| 5 |
--- |
Not used |
--- |
| 6 |
VCC |
Drives position sensors |
With power seat control unit in wake-up mode: about 5 V |
| 7 |
TISE |
Detects front up-down position sensor signal |
About 0.5 - 4.5 V (depending on front up-down position) |
| 8 |
SLSE |
Detects slide position sensor signal |
About 0.5 - 4.5 V (depending on slide position) |
| 9 |
HESE |
Detects rear up-down position sensor signal |
About 0.5 - 4.5 V (depending on rear up-down position) |
| 10 |
RESE |
Detects recline position sensor signal |
About 0.5 - 4.5 V (depending on recline position) |
| 11 |
+B BACK UP |
+B power source |
About battery voltage at all times |
| 12 |
--- |
Not used |
--- |
| 13 |
IG METER |
IG1 power source |
With vehicle in ON or START mode: about battery voltage |
| 14 |
--- |
Not used |
--- |
| 15 |
--- |
Not used |
--- |
| 16 |
B-CAN_H |
Communication line |
--- |
| 17 |
B-CAN_L |
Communication line |
--- |
| 18 |
--- |
Not used |
--- |
| 19 |
SEG |
Ground for position sensors |
Less than 0.2 V at all times |
| 20 |
S GND |
Power seat control unit ground |
Less than 0.2 V at all times |

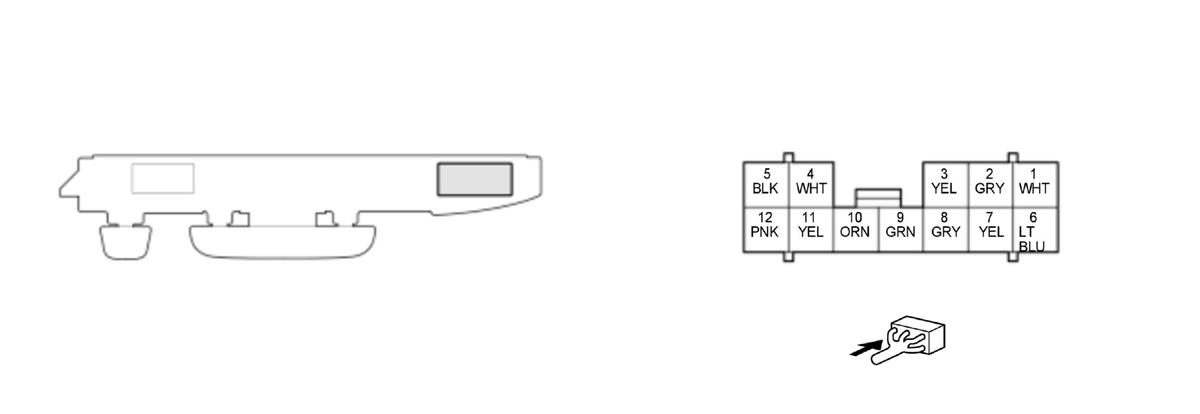

Power Seat Control Unit Connector B (12P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal name |
Description |
Signal |
| 1 |
SLIDE RR |
Drives slide motor |
With slide motor operation (rear side): about battery voltage |
| 2 |
GND/P-SEAT1 |
Power seat control unit ground |
Less than 0.2 V at all times |
| 3 |
SLIDE FR |
Drives slide motor |
With slide motor operation (front side): about battery voltage |
| 4 |
HEIGHT DOWN |
Drives rear up-down motor |
With rear up-down motor operation (down): about battery voltage |
| 5 |
GND/P-SEAT2 |
Power seat control unit ground |
Less than 0.2 V at all times |
| 6 |
+B/P-SEAT1 |
+B power source |
About battery voltage at all times |
| 7 |
TILT DOWN |
Drives front up-down motor |
With front up-down motor operation (down): about battery voltage |
| 8 |
REC FR |
Drives recline motor |
With recline motor operation (front side): about battery voltage |
| 9 |
HEIGHT UP |
Drives rear up-down motor |
With rear up-down motor operation (up): about battery voltage |
| 10 |
TILT UP |
Drives front up-down motor |
With front up-down motor operation (up): about battery voltage |
| 11 |
REC RR |
Drives recline motor |
With recline motor operation (rear side): about battery voltage |
| 12 |
+B/P-SEAT1 |
+B power source |
About battery voltage at all times |
