Driving Position Memory System (DPMS) Circuit Diagram

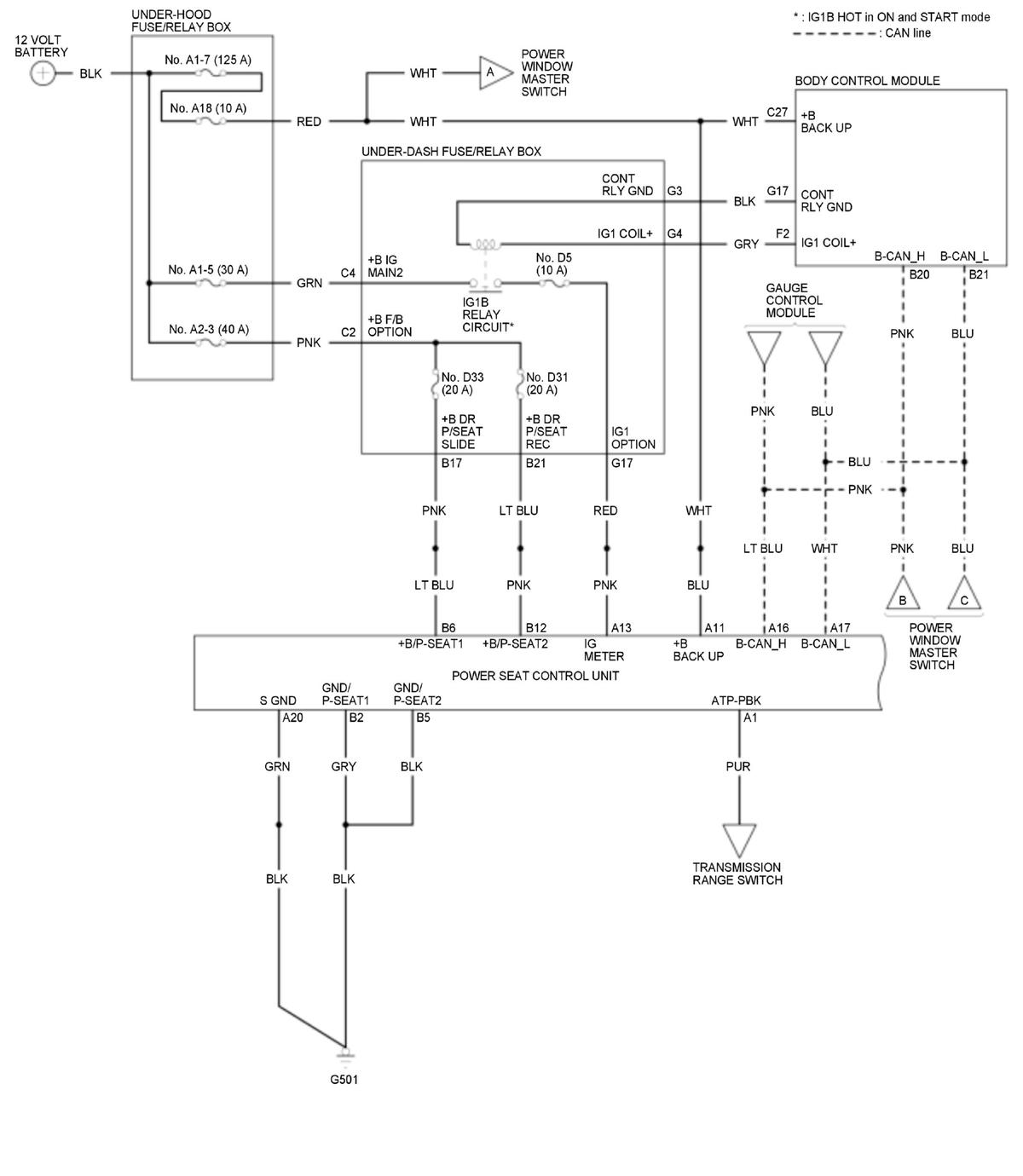

GHH428939

Courtesy of HONDA, U.S.A., INC.

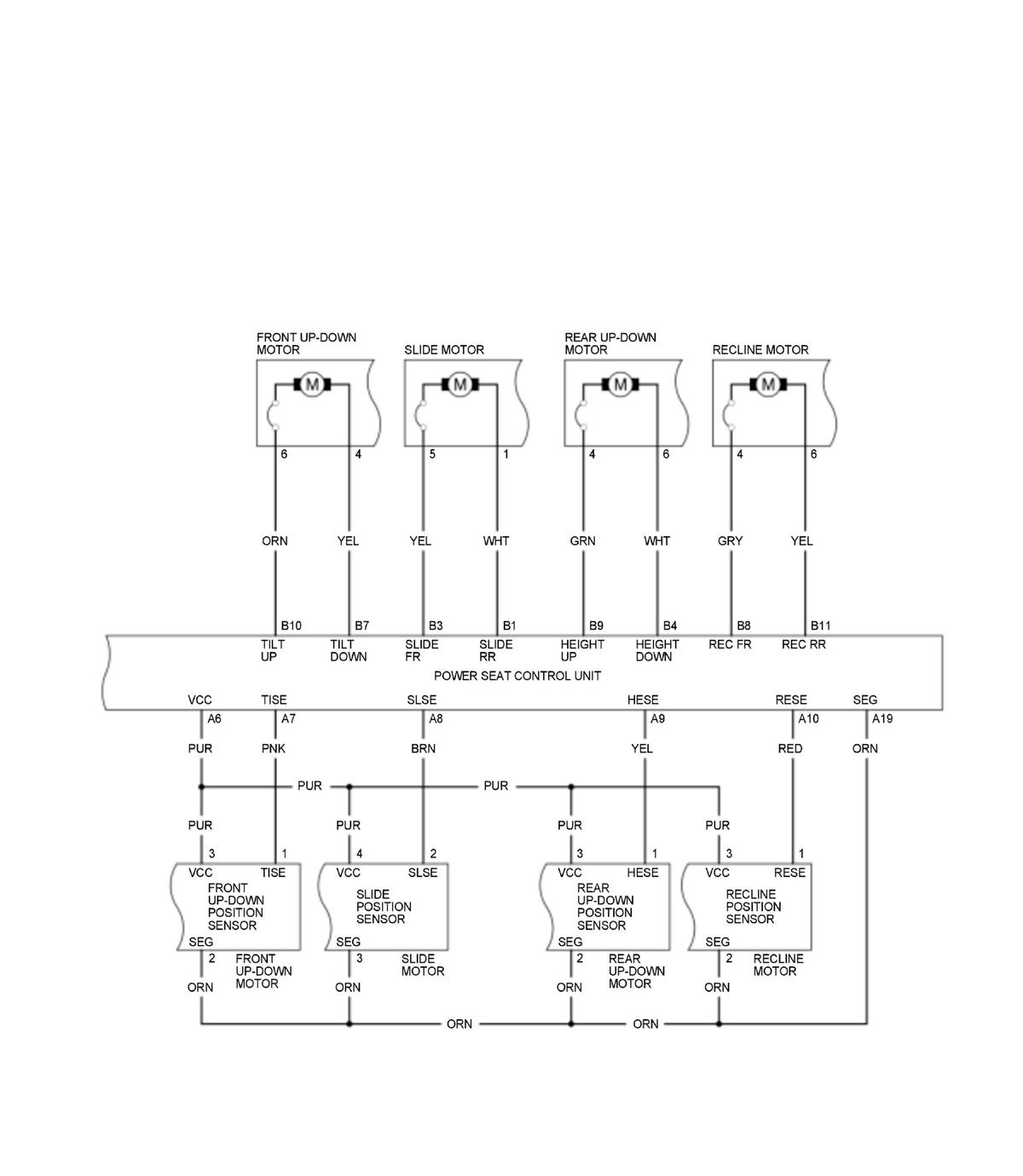

GHH428940

Courtesy of HONDA, U.S.A., INC.

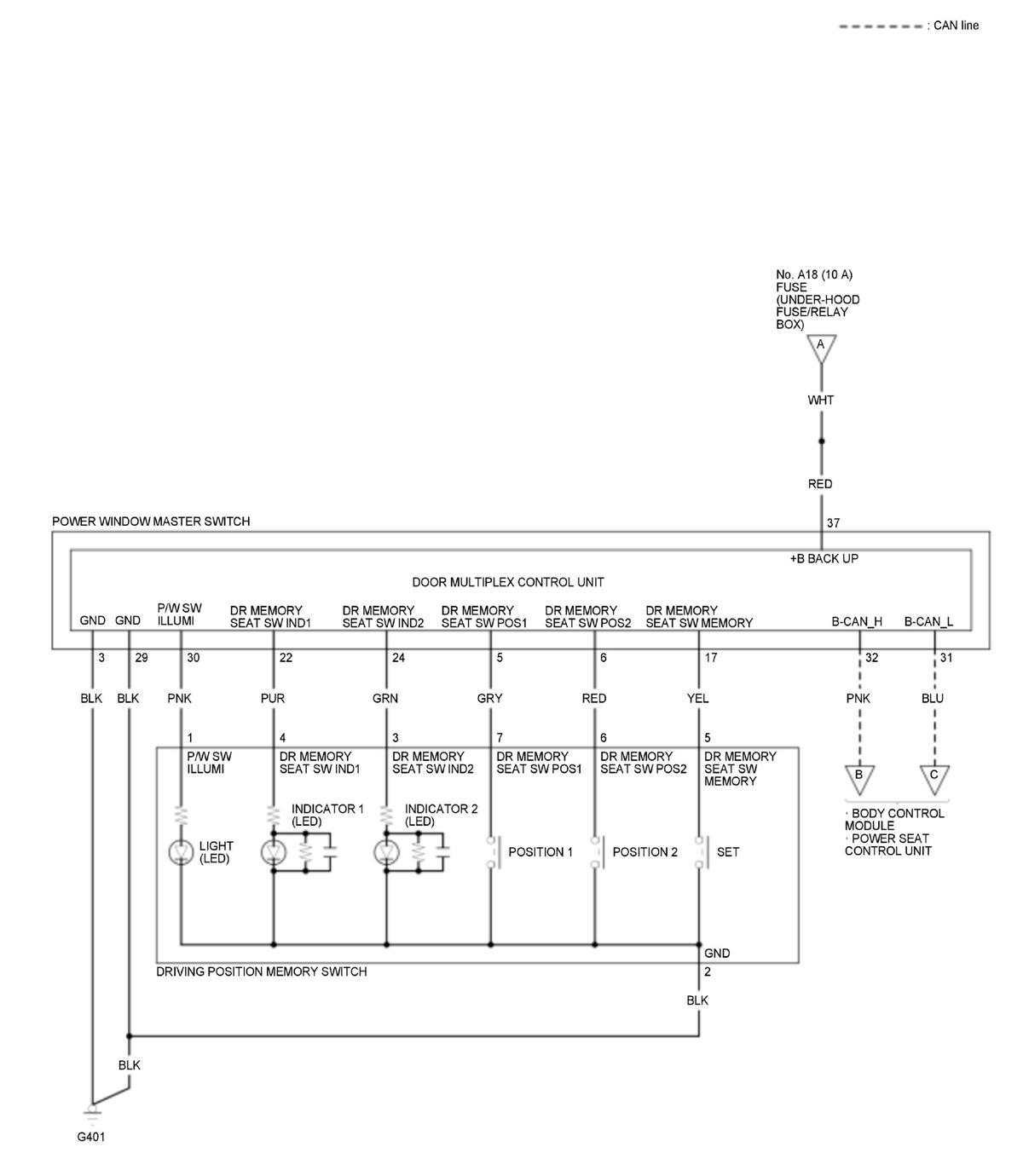

GHH428941

Courtesy of HONDA, U.S.A., INC.
