Removal and Installation

NOTE:  If the replaced control unit is not a new one, clear the driving position memory . If the original control unit is installed, confirm that all systems work properly.

1

Courtesy of HONDA, U.S.A., INC.

1. Driver's Seat Recline Cover - Remove

   NOTE:  If you are removing the driver's seat recline cover, you do not need to remove the driver's seat.

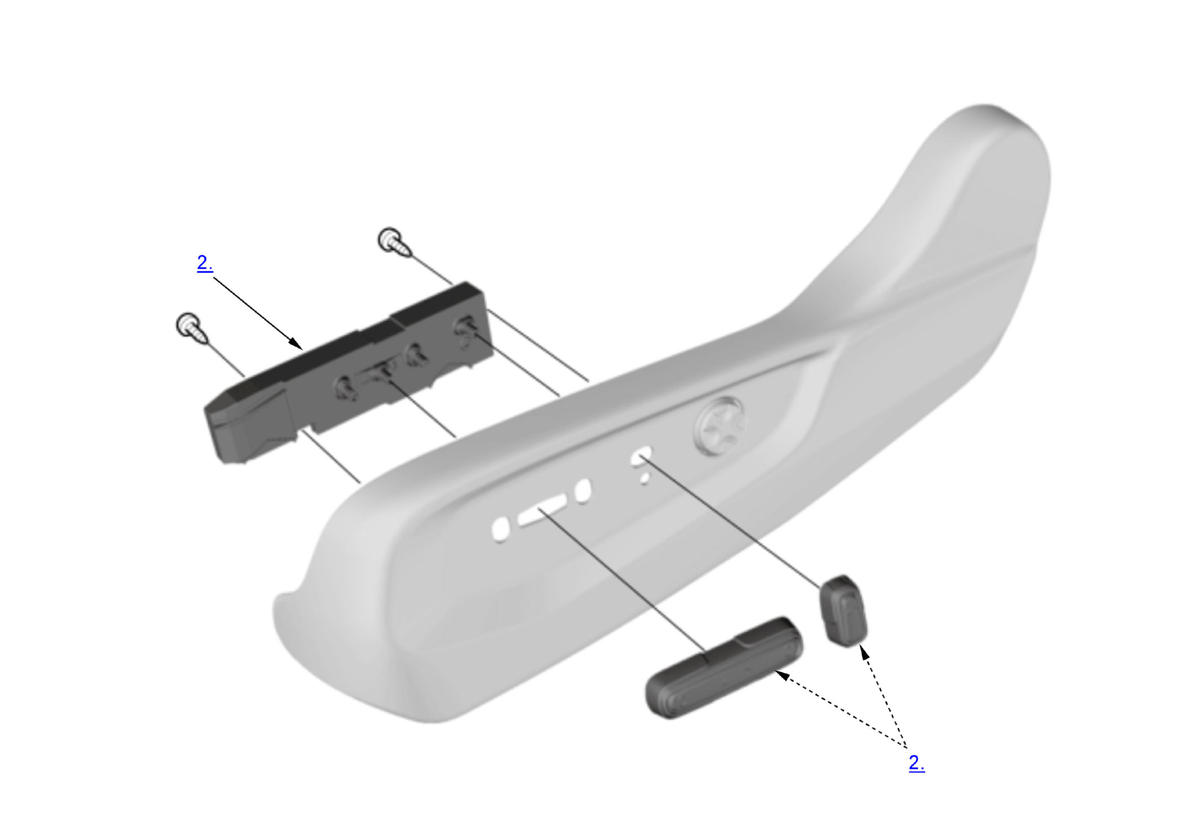

2. Power Seat Control Unit/Power Seat Adjustment Switch - Remove
3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

4. Driving Position Memory - Clear

   1. If the replaced power seat control unit is not a new one, clear the driving position memory .
