Connecting Rod and Crankshaft End Play Inspection (2.4 L Engine) (2017 2018 2019): Inspection

  1. Engine - Remove
  2. Transmission - Remove
  3. Drive Plate - Remove
  4. Cylinder Head - Remove
  5. Oil Pump - Remove
  6. Baffle Plate - Remove
  7. Connecting Rod and Crankshaft End Play - Inspect

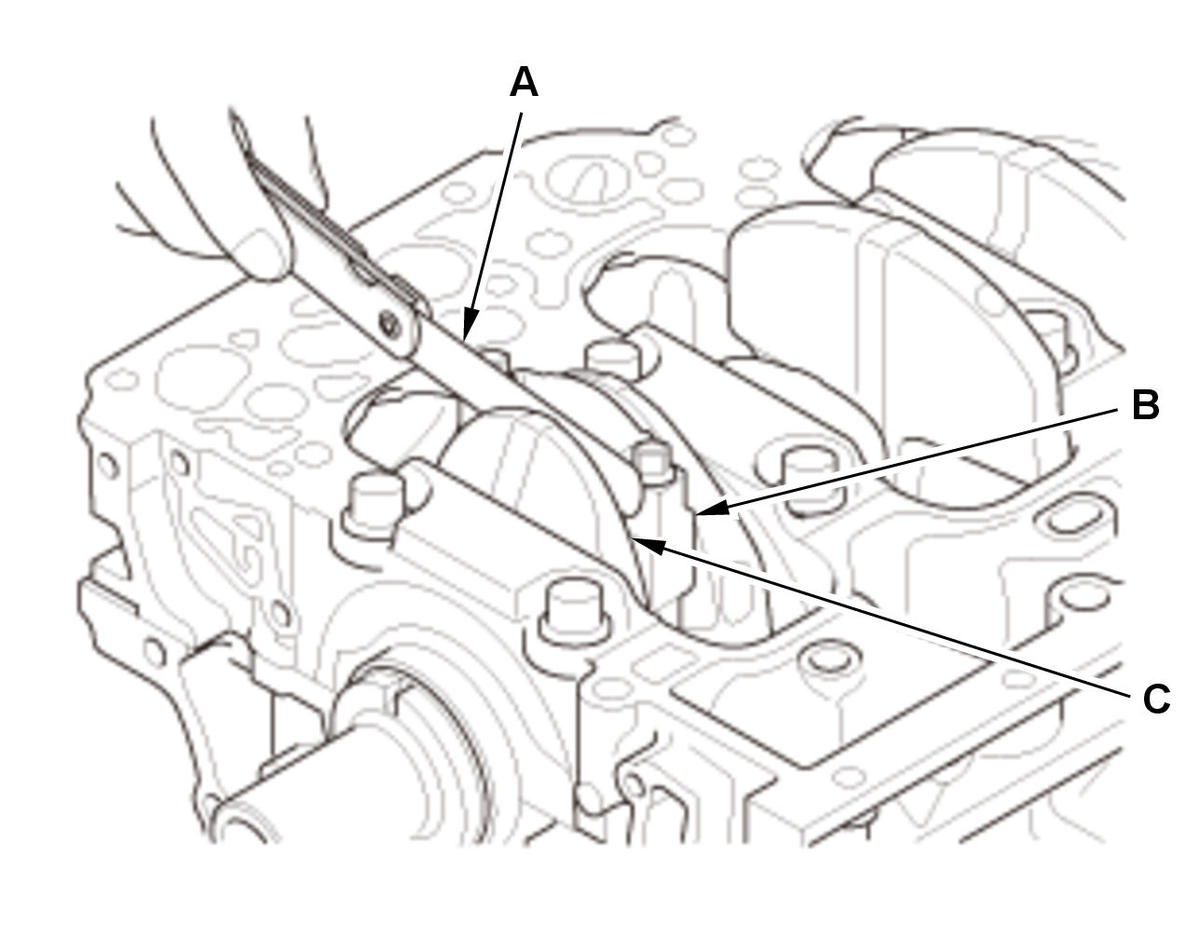

    GHH427012Courtesy of HONDA, U.S.A., INC.
    		 1. Measure the connecting rod end play with a feeler gauge (A) between the connecting rod (B) and the crankshaft (C).

    Connecting Rod End Play

    2. If the connecting rod end play is beyond the service limit, install a new connecting rod, and recheck. If it is still beyond the service limit, replace the crankshaft .
    Standard (New):  0.15-0.35 mm (0.006-0.013 in)
    Service Limit:  0.40 mm (0.015 in)

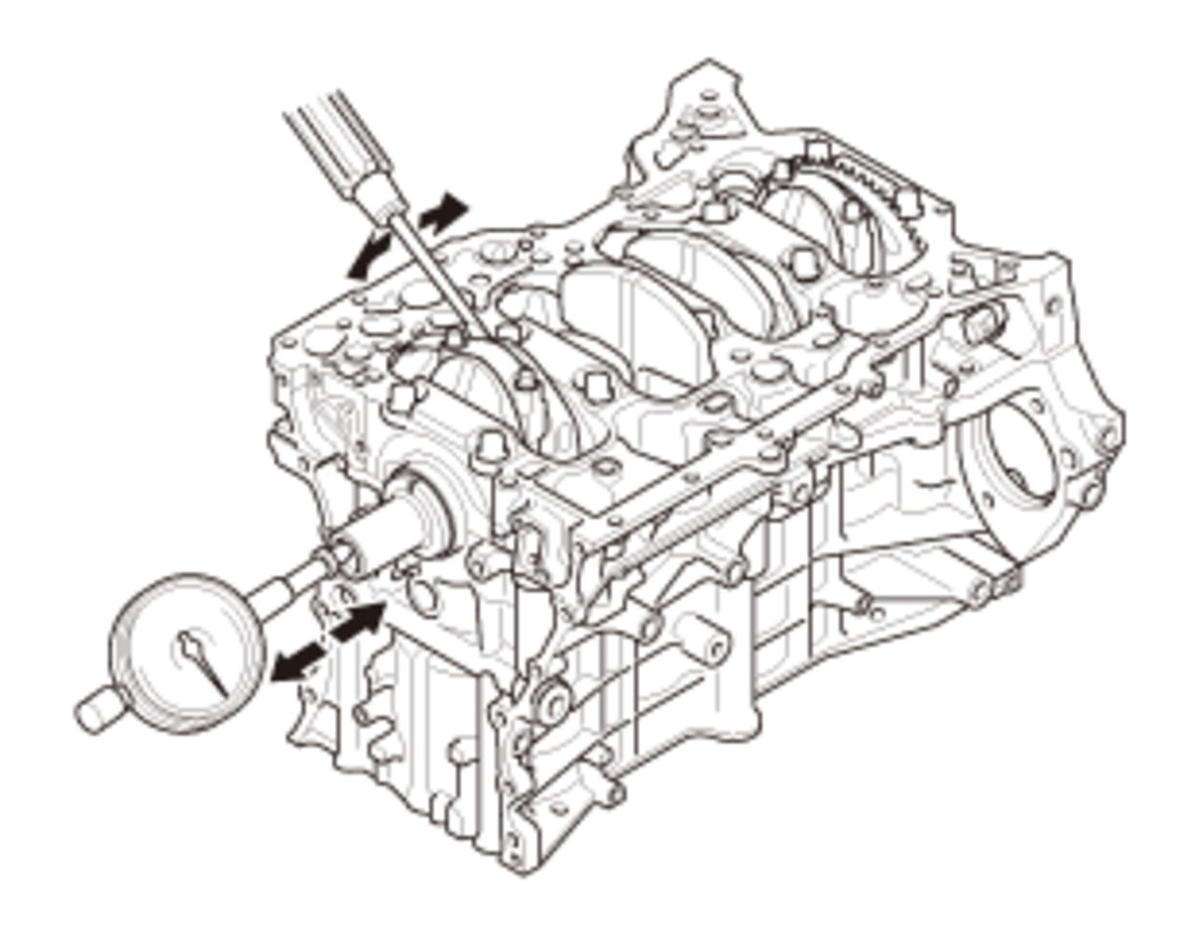

    GHH427013Courtesy of HONDA, U.S.A., INC.
    		 3. Push the crankshaft firmly away from the dial indicator by prying, and zero the dial against the end of the crankshaft. Then pull the crankshaft firmly back toward the indicator by prying; the dial reading should not exceed the service limit.

    4. If the crankshaft end play is beyond the service limit, replace the thrust washers and recheck, if it is still beyond the service limit, replace the crankshaft .
    Crankshaft End Play
    Standard (New):  0.10-0.35 mm (0.0039-0.0138 in)
    Service Limit:  0.45 mm (0.0177 in)
  8. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
