Cylinder Head Inspection for Warpage (1.5 L Engine): Inspection

Cylinder Head Warpage - Inspect

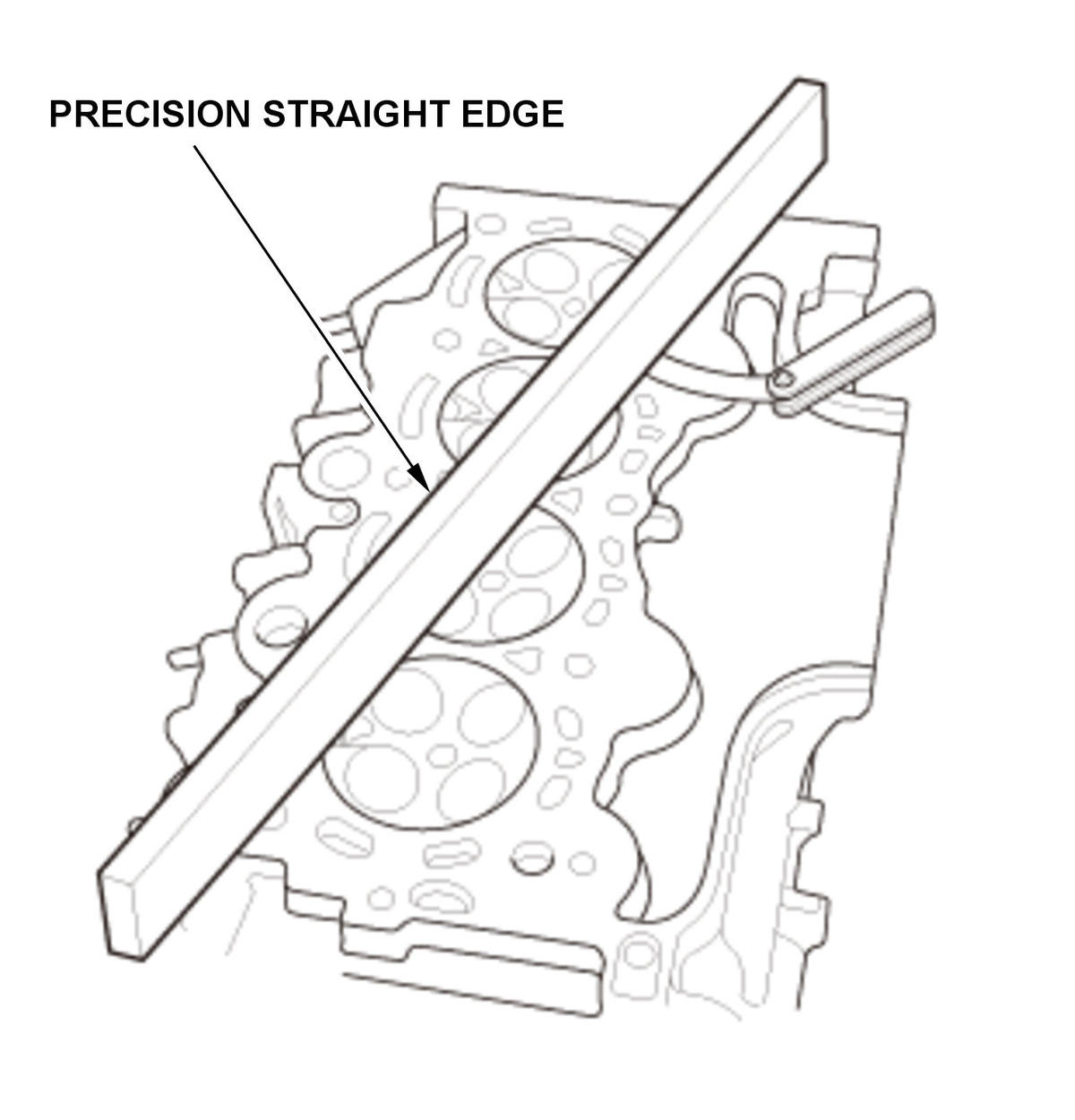

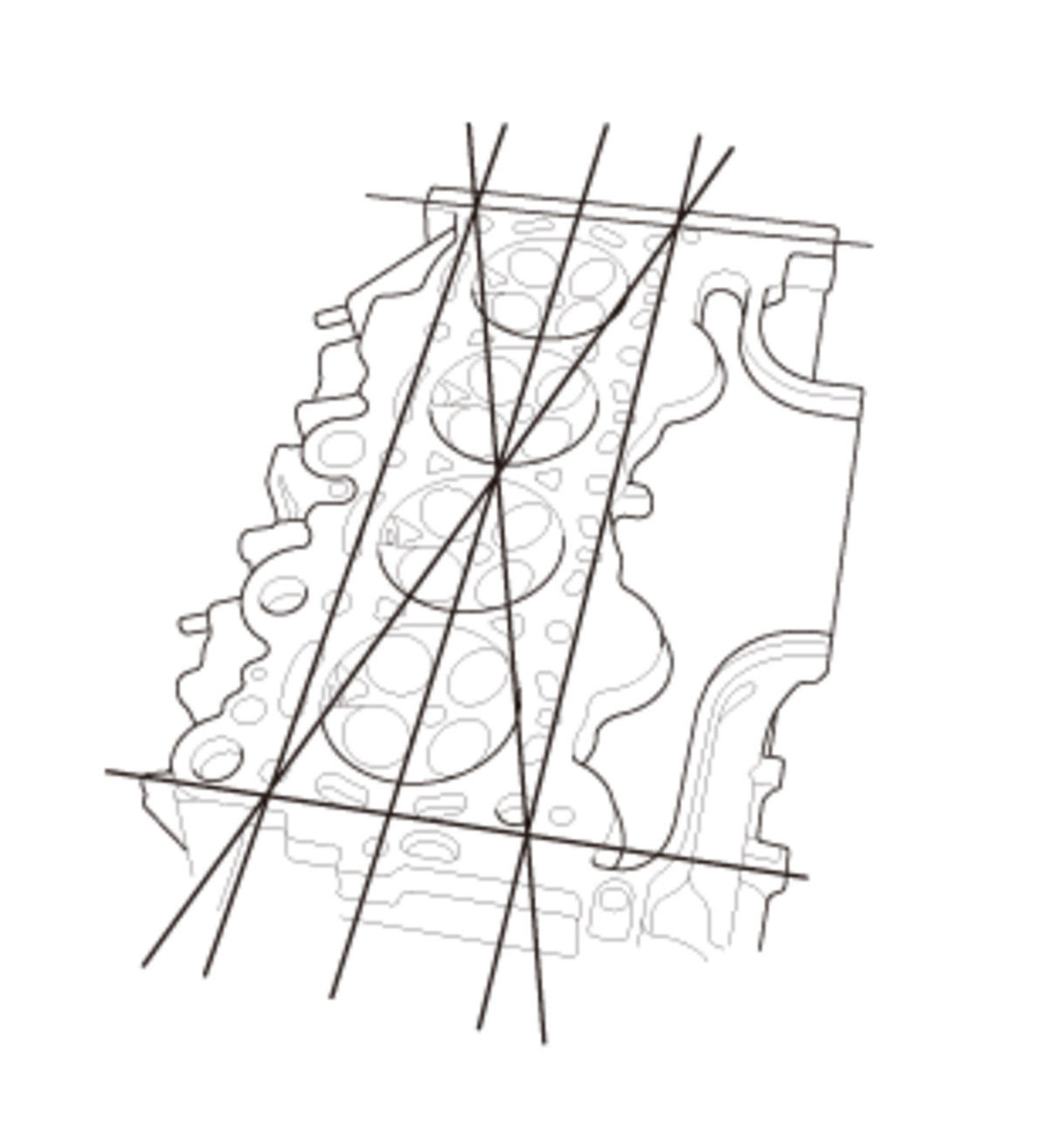

1. Check the cylinder head for warpage. Measure along the edges, and three ways across the center:

If warpage is less than 0.08 mm (0.003 in) cylinder head resurfacing is not required.
Maximum resurface limited to the cylinder head height standard as shown.

Warpage
Standard (New):	0.08 mm (0.003 in) max.

Cylinder Head Height
Standard (New):	126.95-127.05 mm (4.9980-5.0020 in)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
