Cylinder Head Assembly Component Location Index (2.4 L Engine) (2017 2018 2019)

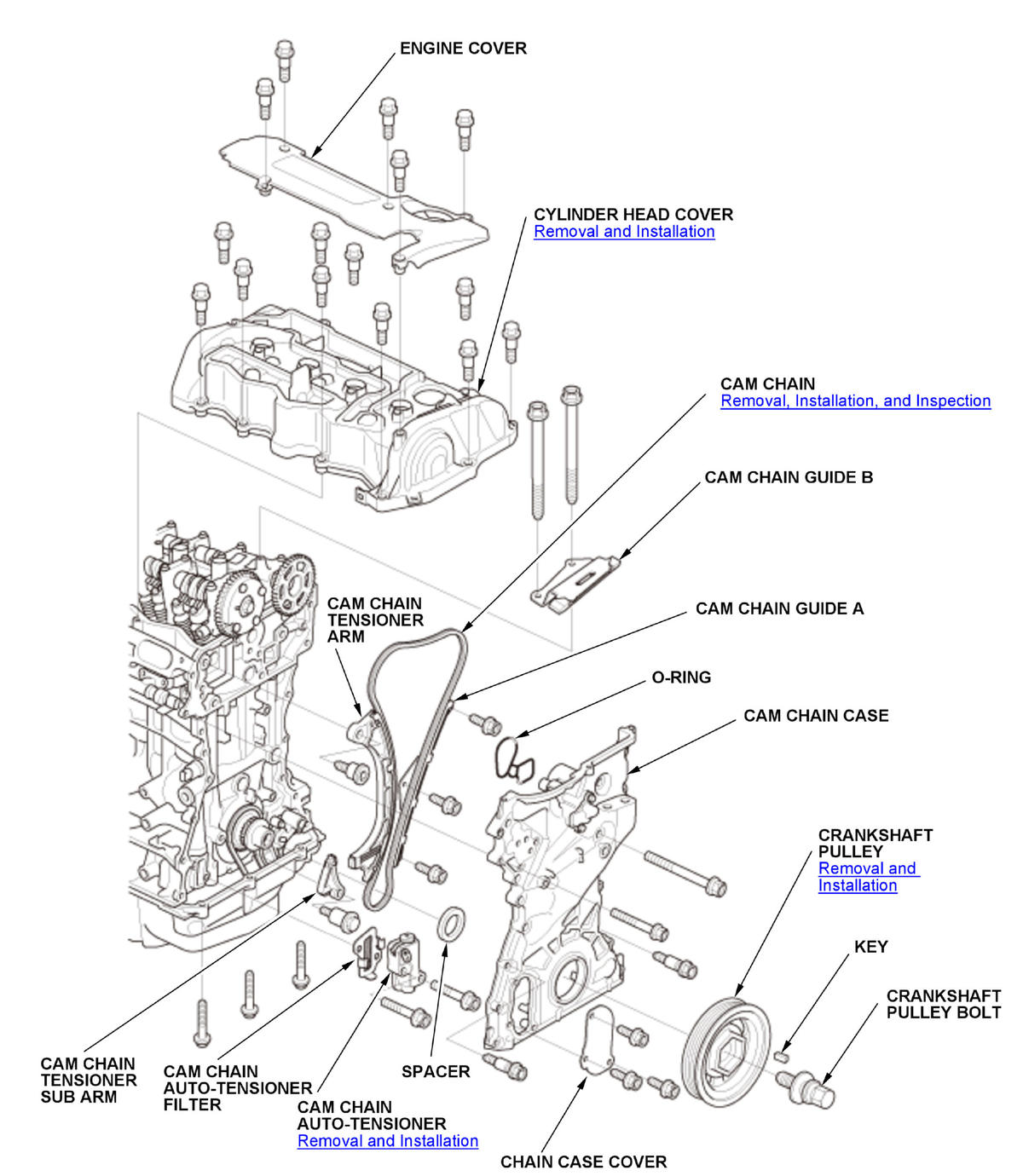

GHH426739

Courtesy of HONDA, U.S.A., INC.

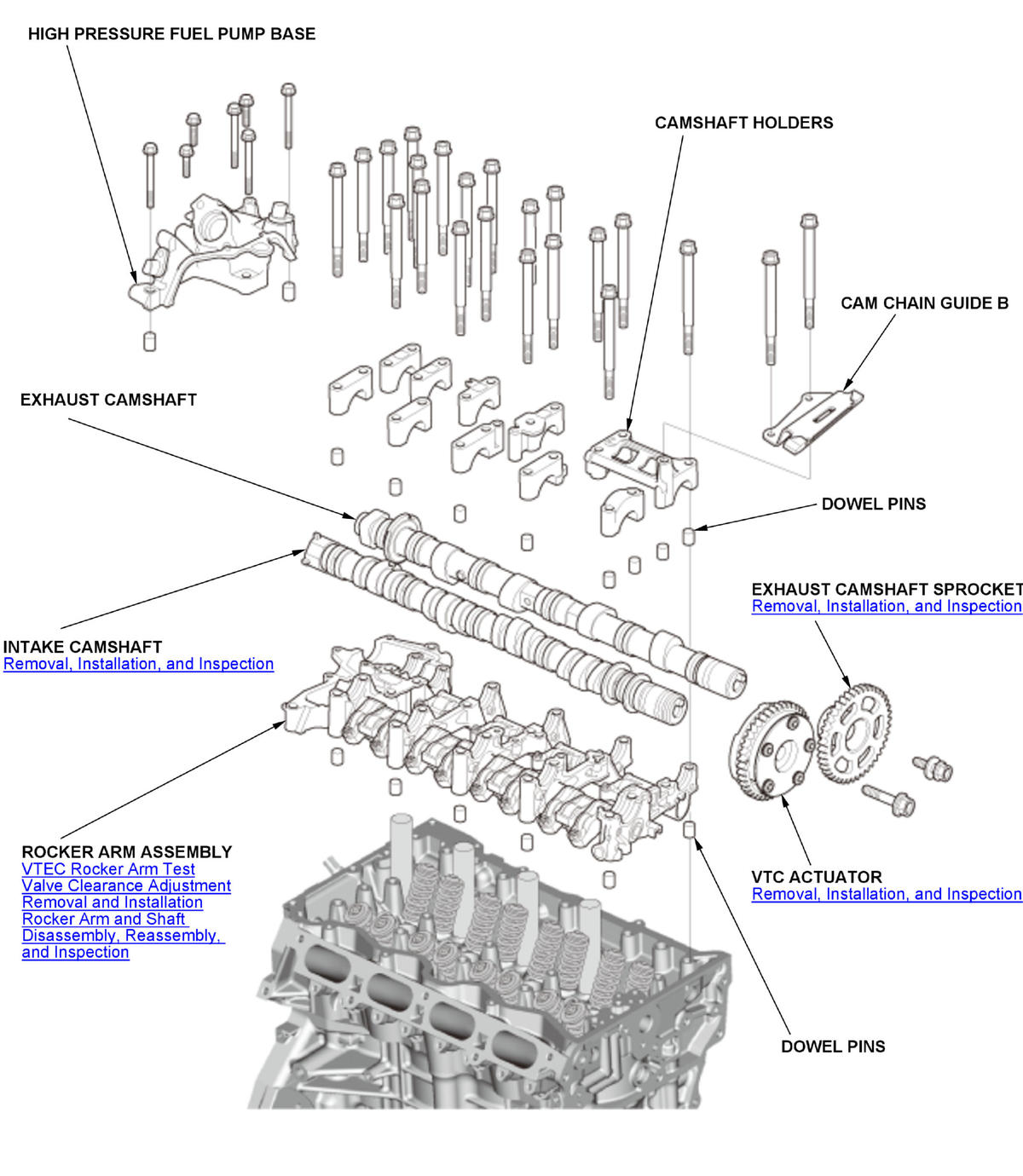

GHH426740

Courtesy of HONDA, U.S.A., INC.

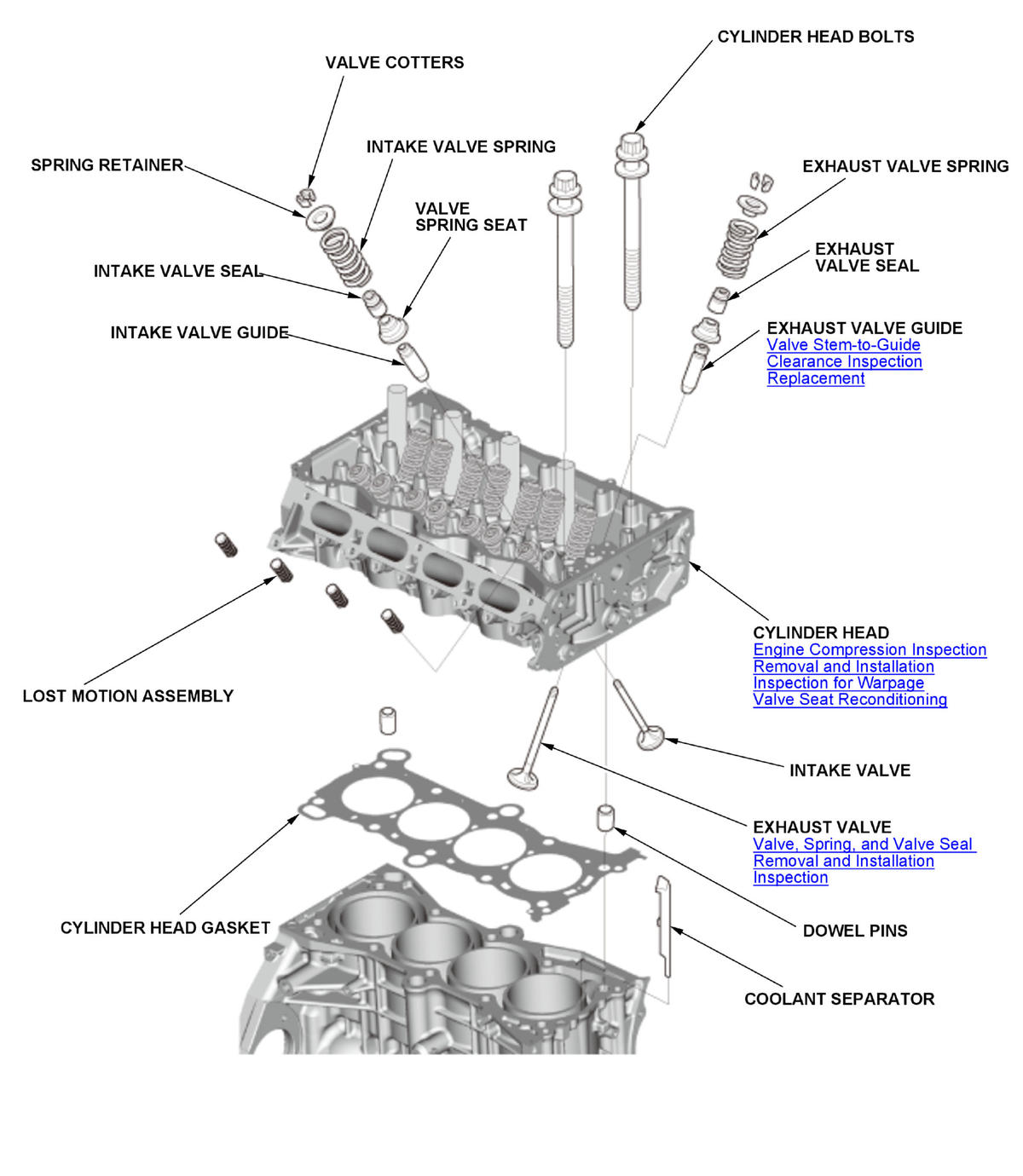

GHH426741

Courtesy of HONDA, U.S.A., INC.
