Removal and Installation

NOTE:

Where icon is shown, further information shown below.
Tighten the turbocharger/bracket mounting bolts and nuts in the numbered sequence shown.

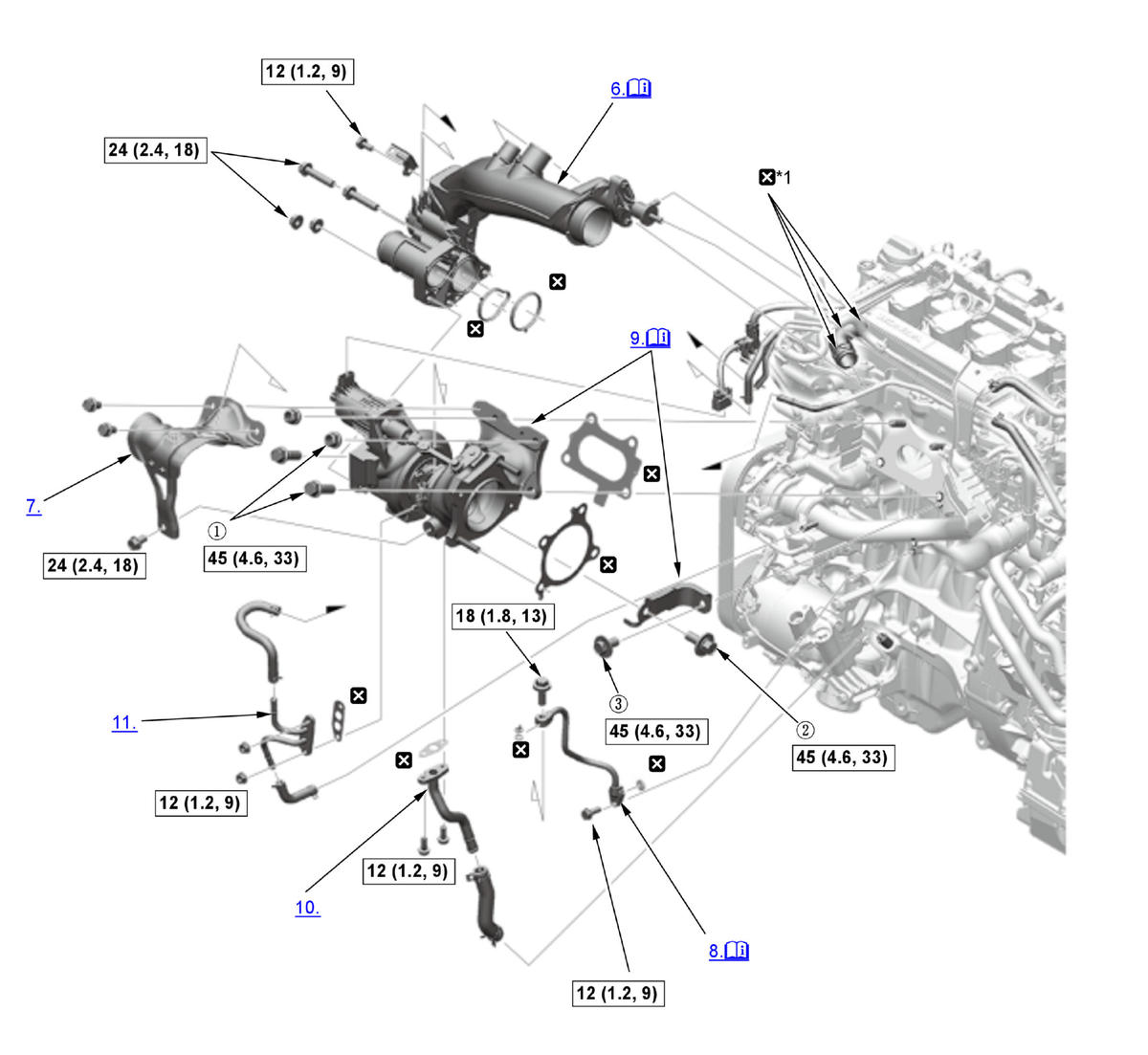

Fig 1: Tightening Turbocharger/Bracket Mounting Bolts In Sequence With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace
*1	With break head band

Turbocharger Joint - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE: (With break head band) Use commercially available cutting pliers as necessary to cut the band off the hose while avoiding damage to the hose.

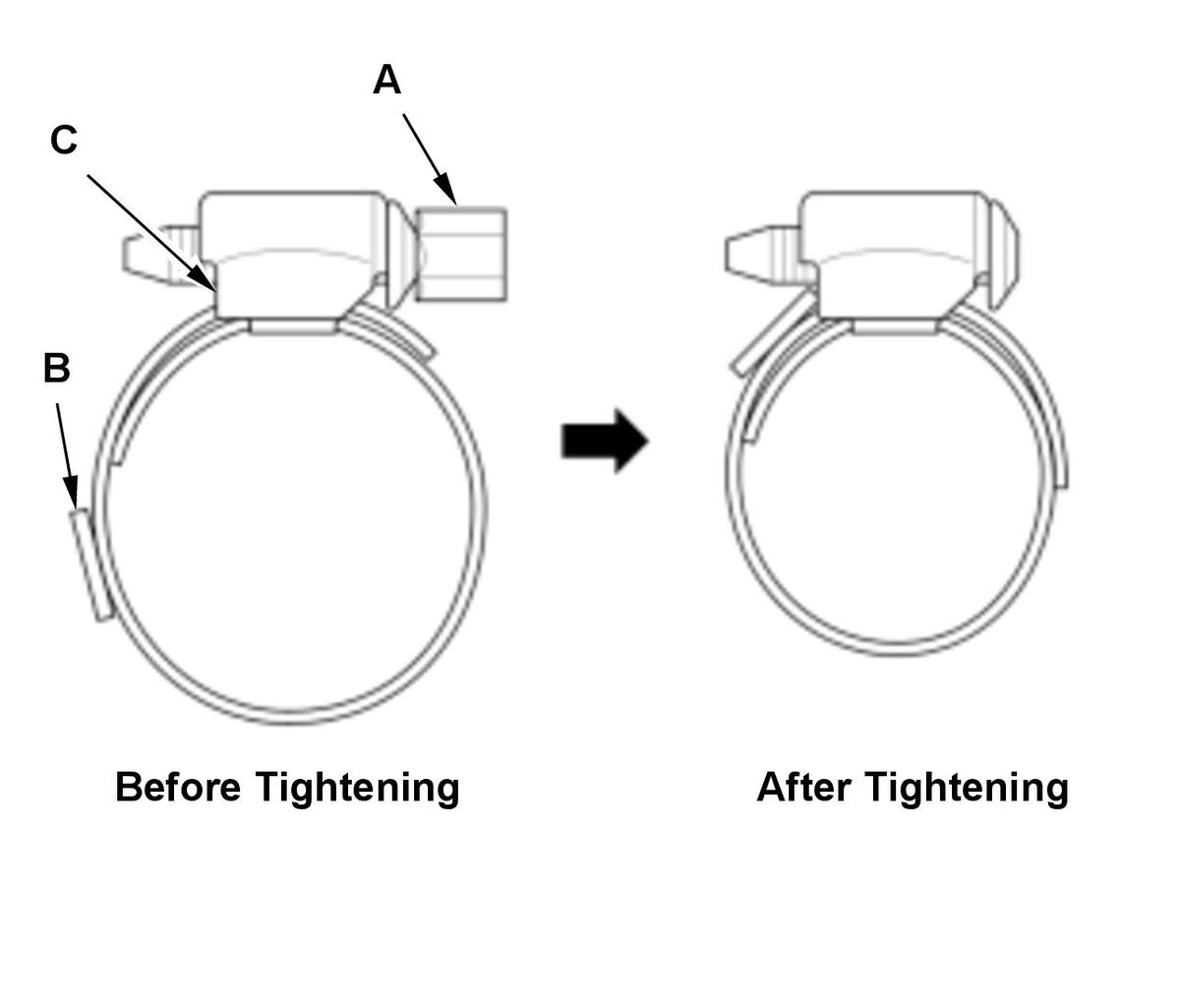

Note for installation (with break head band):

When installing a new break head band, do the following procedures.

1. Tighten the break head bolt until the bolt head (A) is twisted off completely.

NOTE:

Do not use an air tool.

2. Make sure the stopper end (B) contacts to the housing end (C) after tightening the break head bolt.

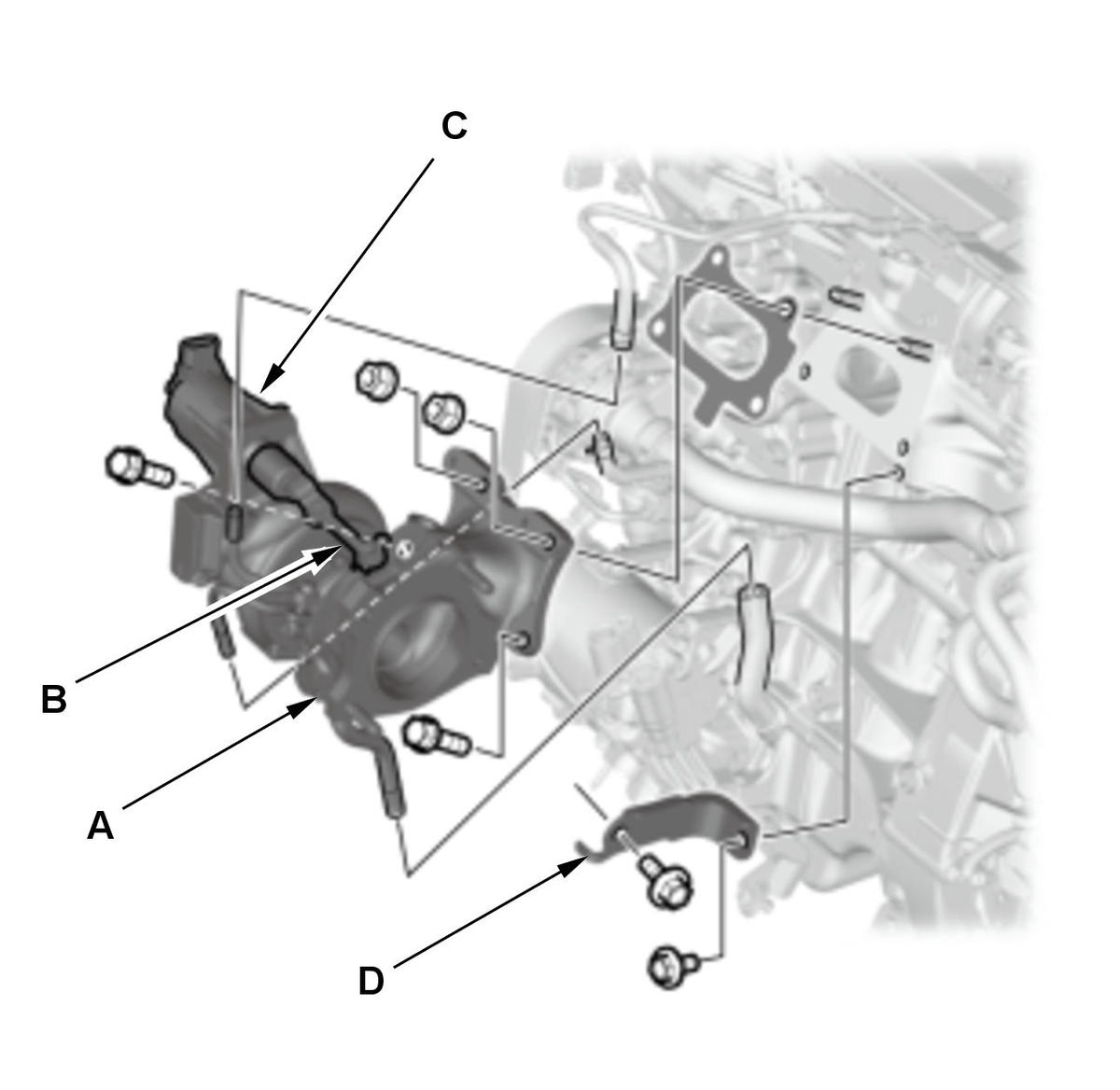

Turbocharger and Bracket - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the turbocharger (A).

NOTE:

Do not hold the wastegate control valve rod (B) and the turbocharger wastegate control actuator (C).

2. Remove the bracket (D).

Oil Return Pipe - Remove

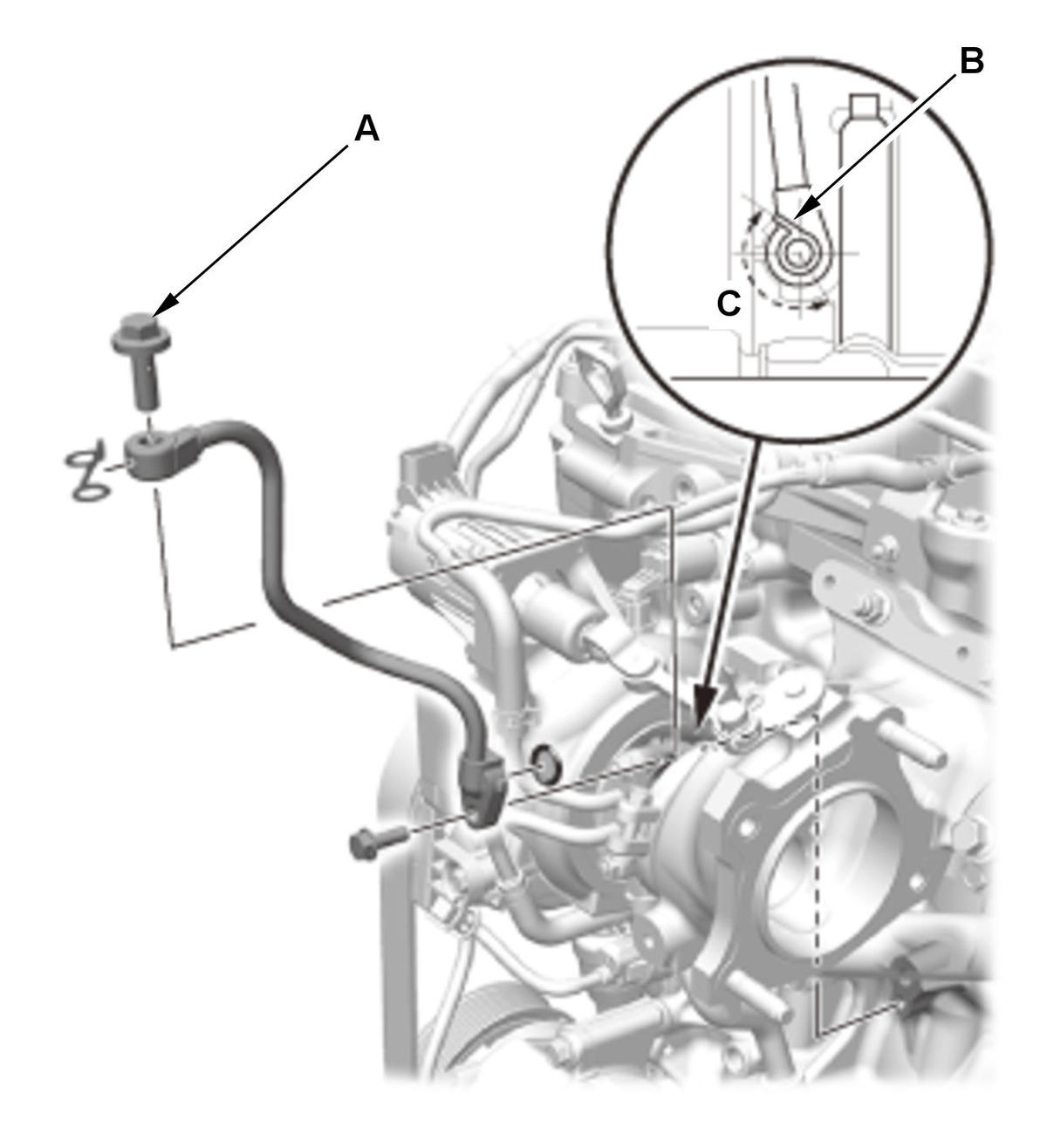

Water Pipe - Remove
All Removed Parts - Install

1. Install the parts in the reverse order of removal.

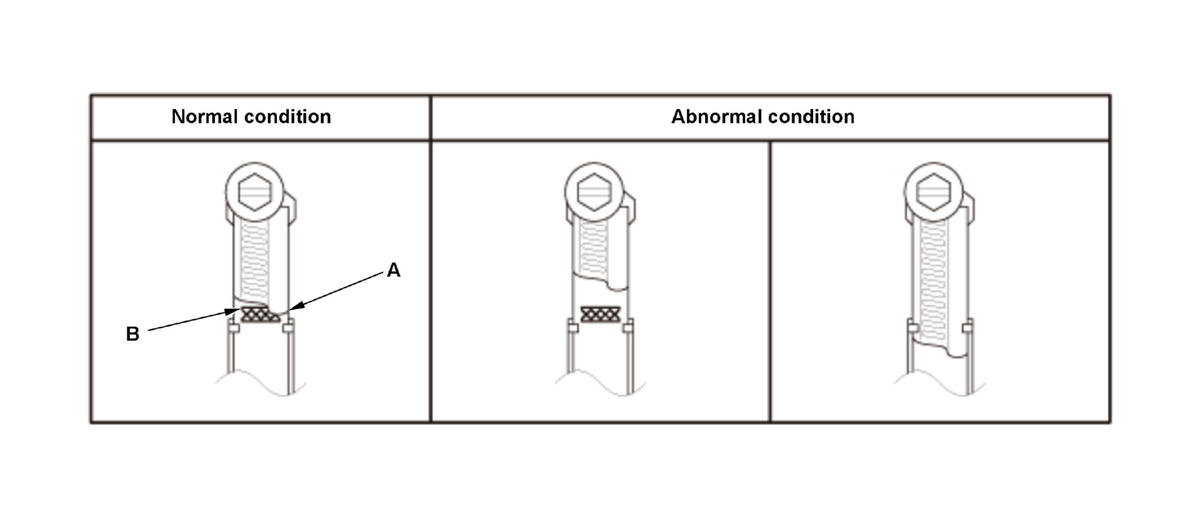

Hose Band - Precaution
Note for installation

NOTE: Make sure the end of the hose band (A) is at or within the hash mark (B) on the hose band after the parts are installed.

Courtesy of HONDA, U.S.A., INC.
Engine Oil Level - Check
Procedure After Replacing Turbocharger
PCM - Reset
PCM Idle - Learn
