Removal and Installation

1

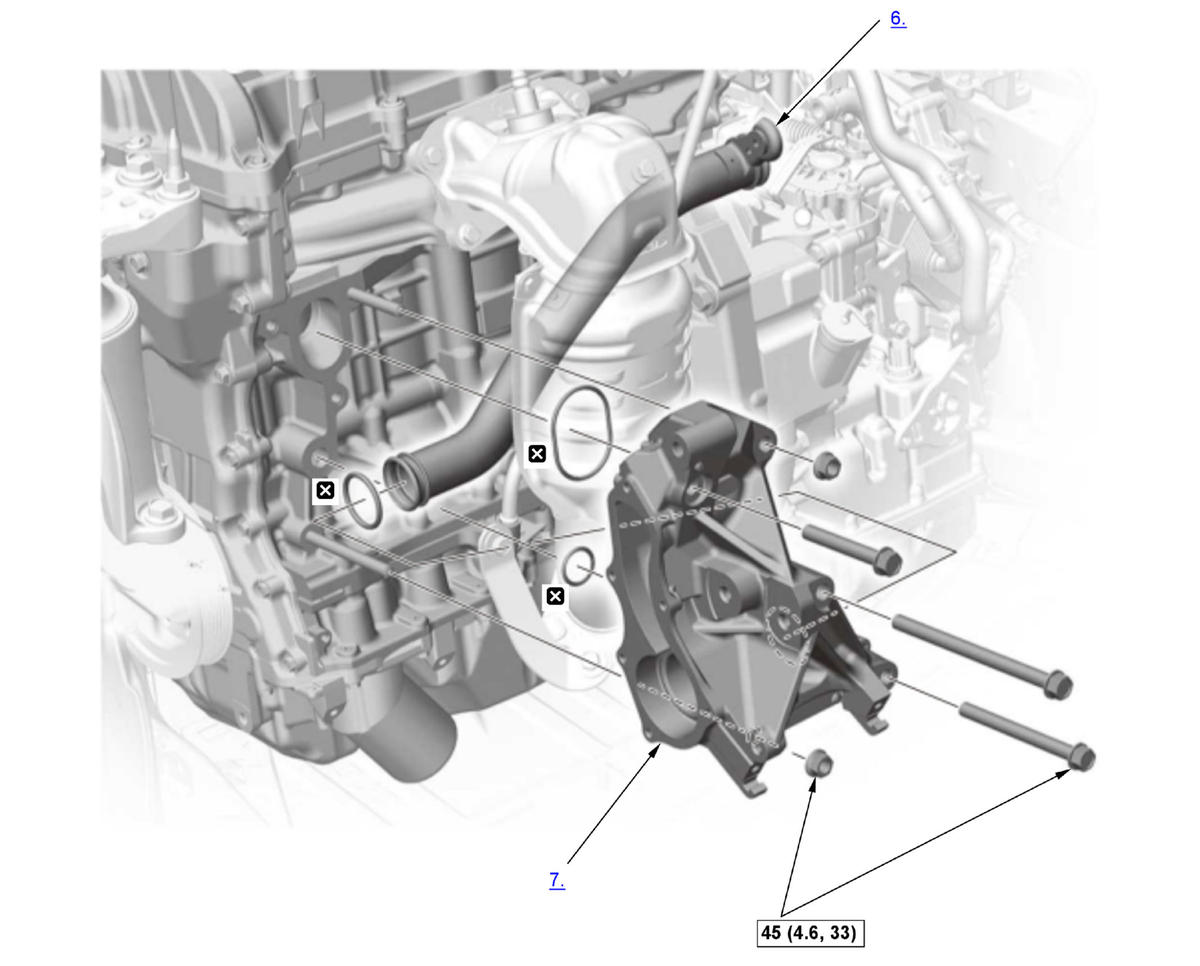

Fig 1: Water Passage Bolts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Engine Coolant - Drain
2. Alternator - Remove
3. A/C Compressor - Move

   NOTE:

   • Do not disconnect the A/C hoses.
   • Do not bend the A/C hoses excessively.
   • Hang the A/C compressor with a wire tie.
4. Water Pump - Remove
5. Thermostat Housing - Remove
6. Connecting Pipe - Remove
7. Water Passage - Remove
8. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
