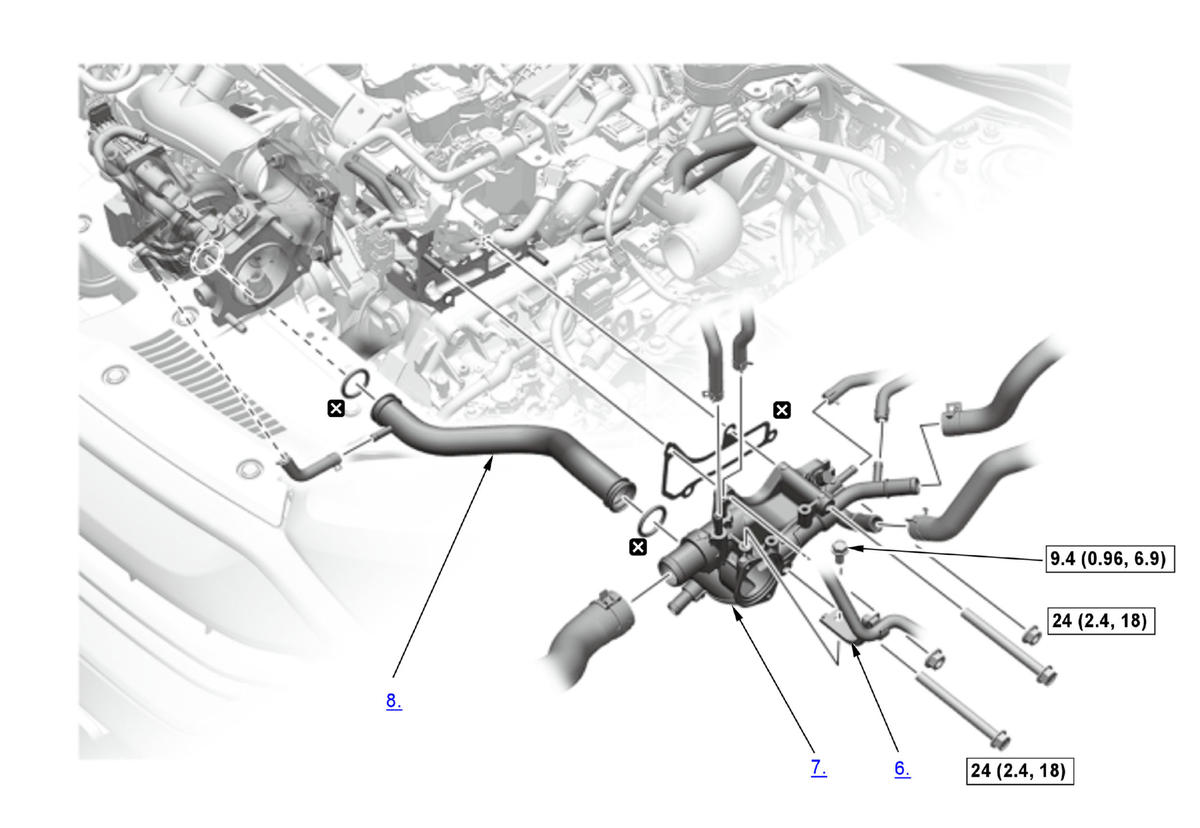

Removal and Installation

1

Courtesy of HONDA, U.S.A., INC.

	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Engine Coolant - Drain
2. Air Cleaner - Remove
3. ECT Sensor 1 - Remove
4. Thermostat - Remove
5. ATF Warmer Hose - Disconnect
6. Bracket - Remove
7. Thermostat Housing - Remove
8. Connecting Pipe - Remove
9. All Removed Parts - Install

   1. Install the parts in the reverse order of removal. NOTE: After installing all the removed parts, refill the radiator with engine coolant, and bleed the air from the cooling system .
