Wire Harness and Ground Locations

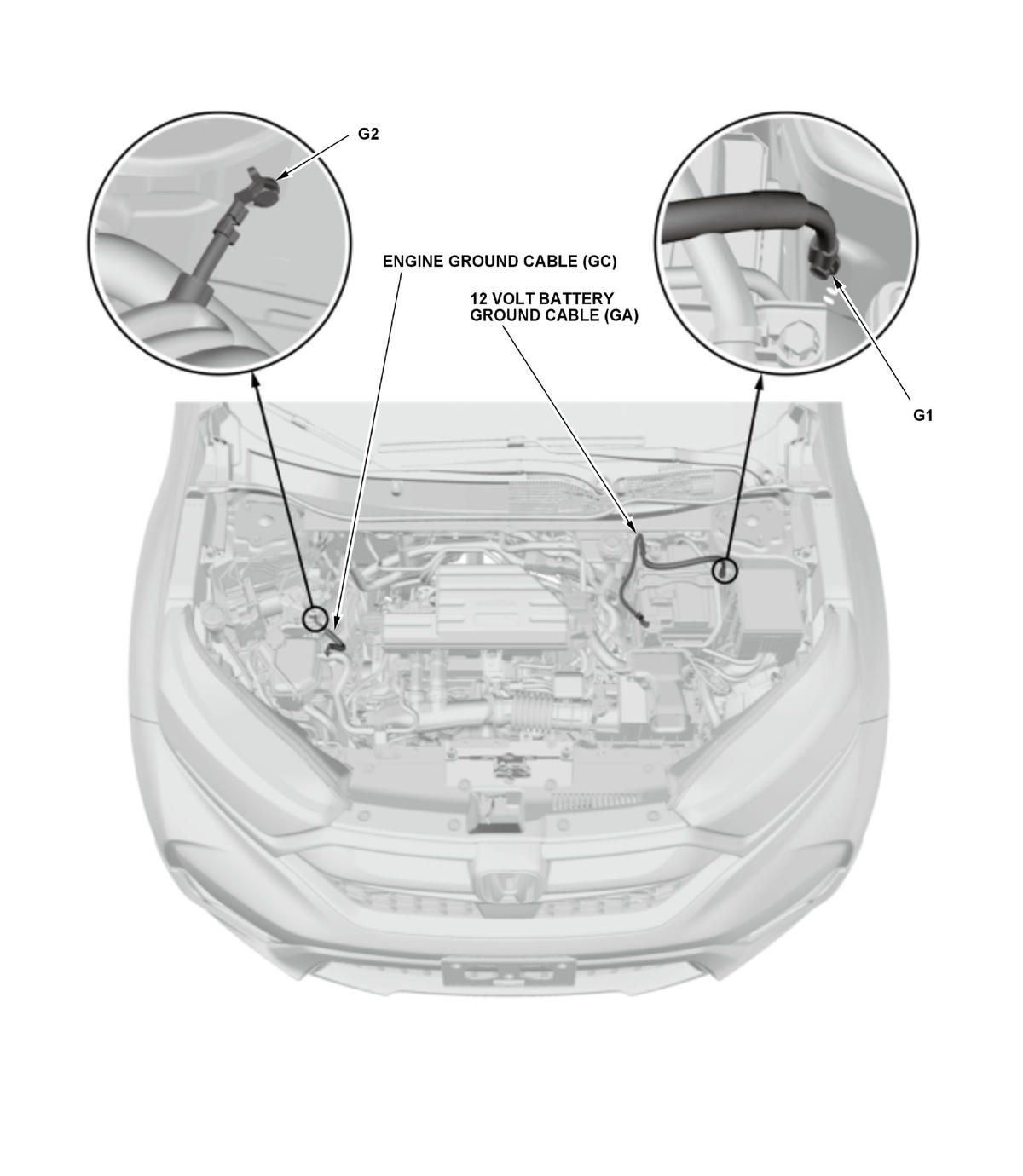

Engine Compartment - 1/6 (With Auto Idle Stop System)

Courtesy of HONDA, U.S.A., INC.

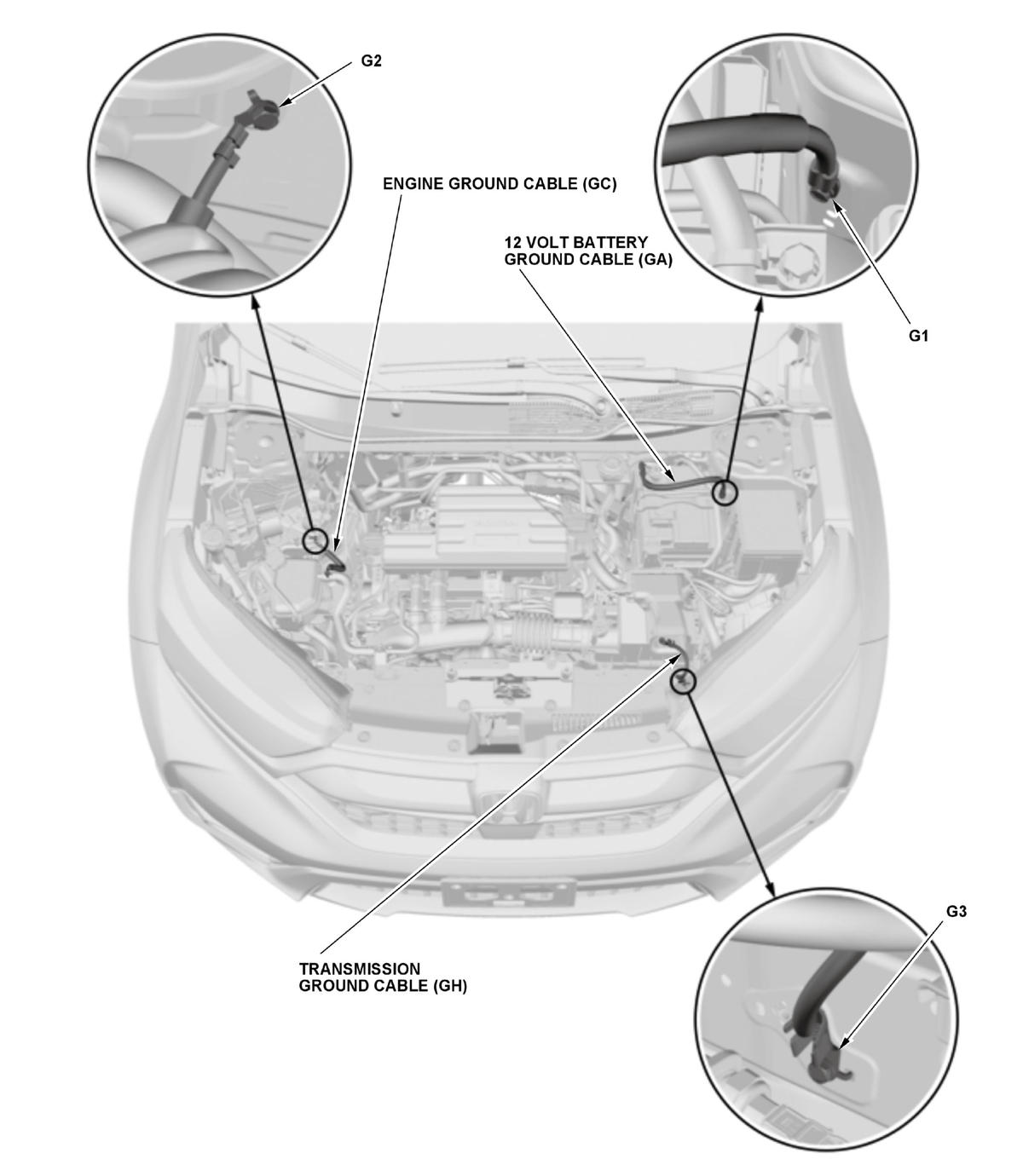

Engine Compartment - 2/6 (Without Auto Idle Stop System)

Courtesy of HONDA, U.S.A., INC.

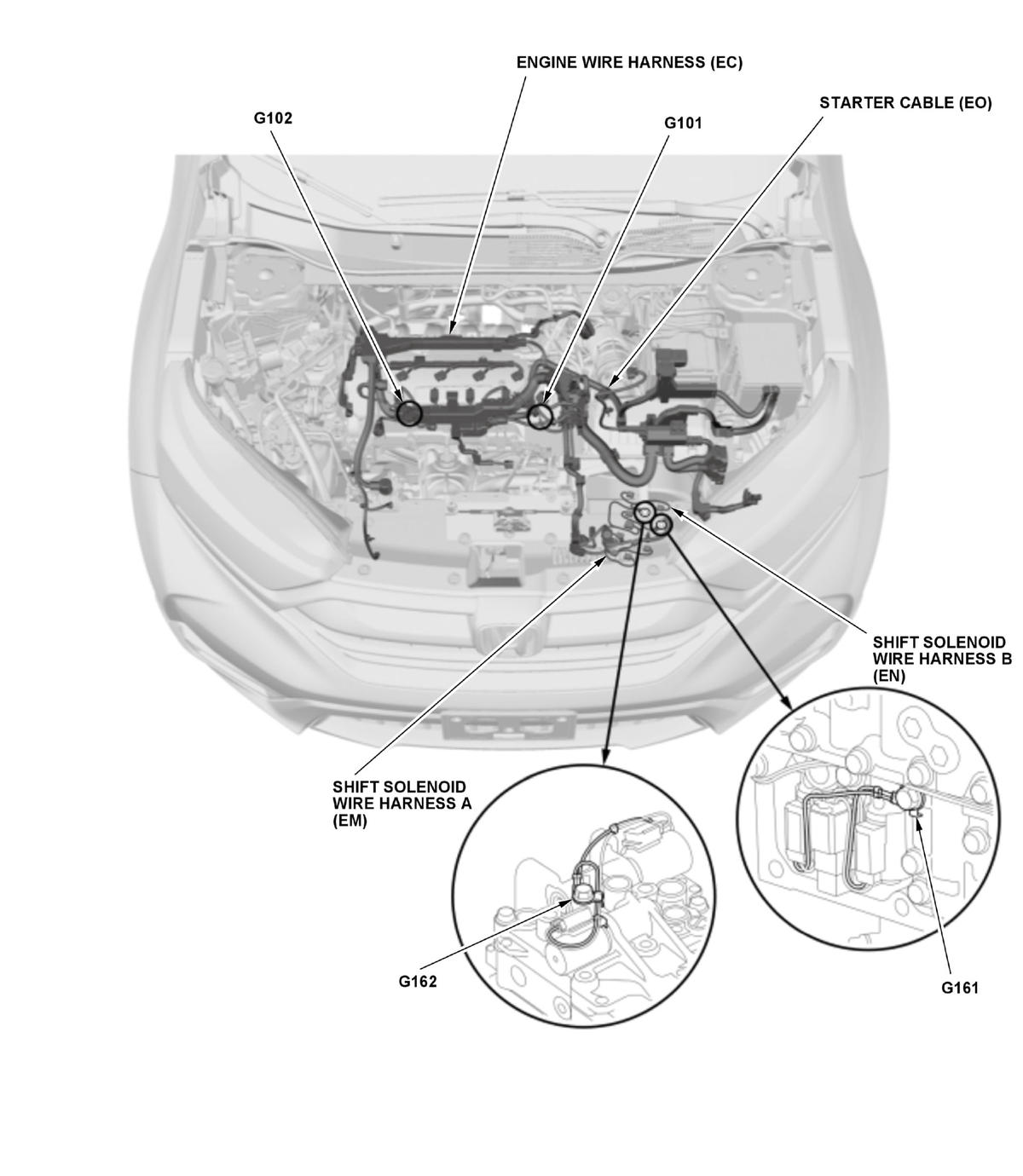

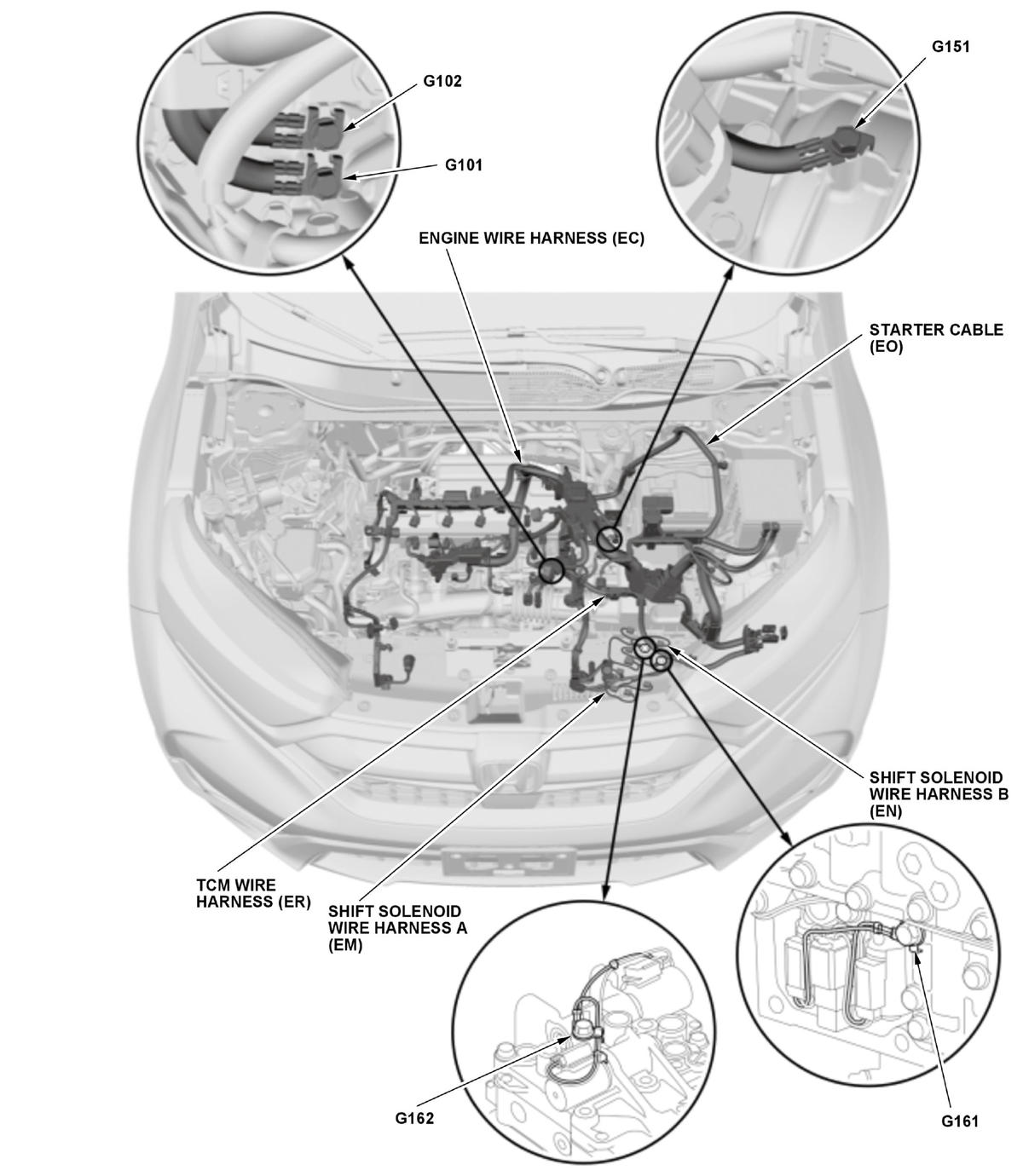

Engine Compartment - 3/6 (1.5 L Engine)

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 4/6 (2.4 L Engine)

Courtesy of HONDA, U.S.A., INC.

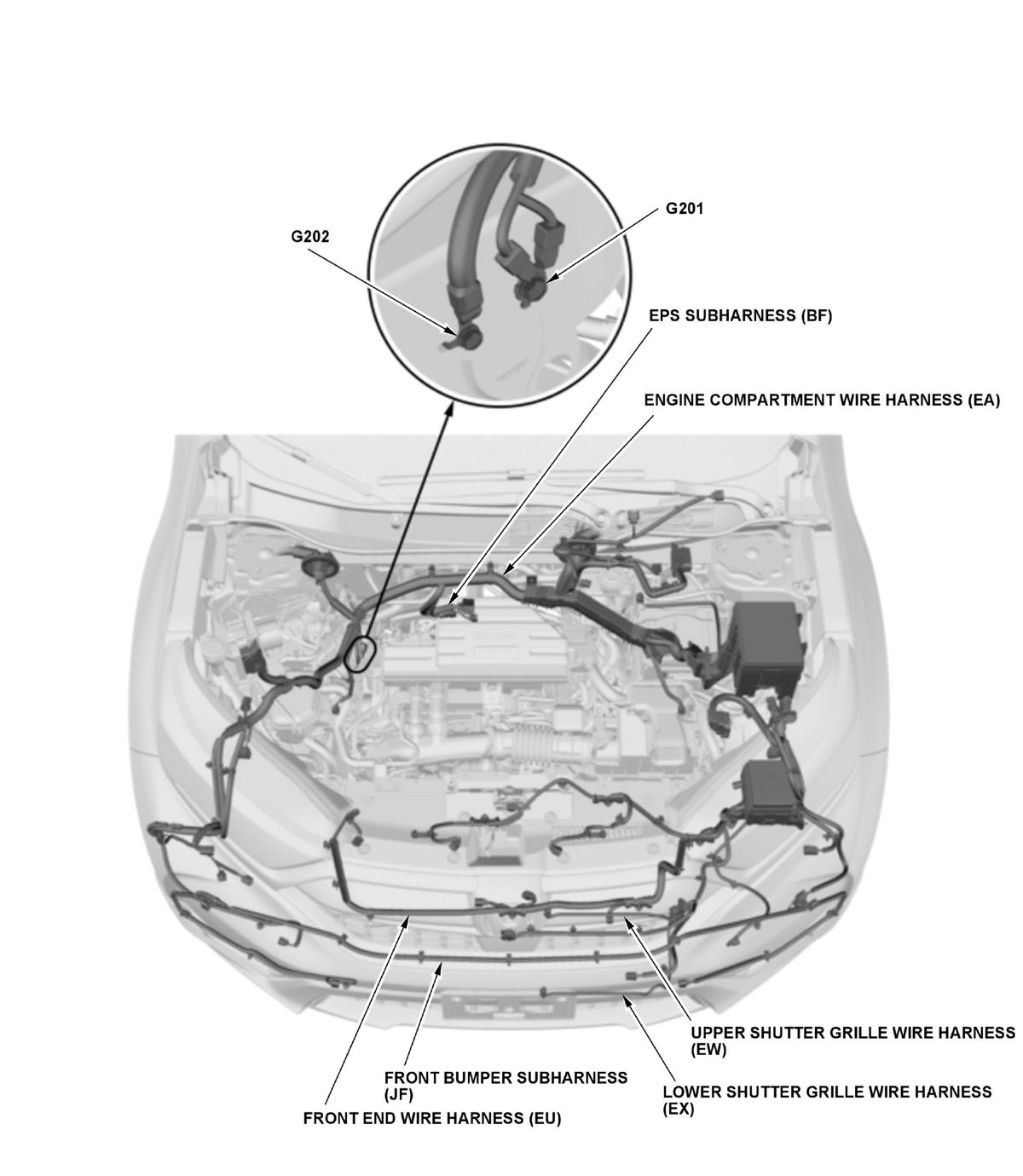

Engine Compartment - 5/6

Courtesy of HONDA, U.S.A., INC.

Engine Compartment - 6/6

Courtesy of HONDA, U.S.A., INC.

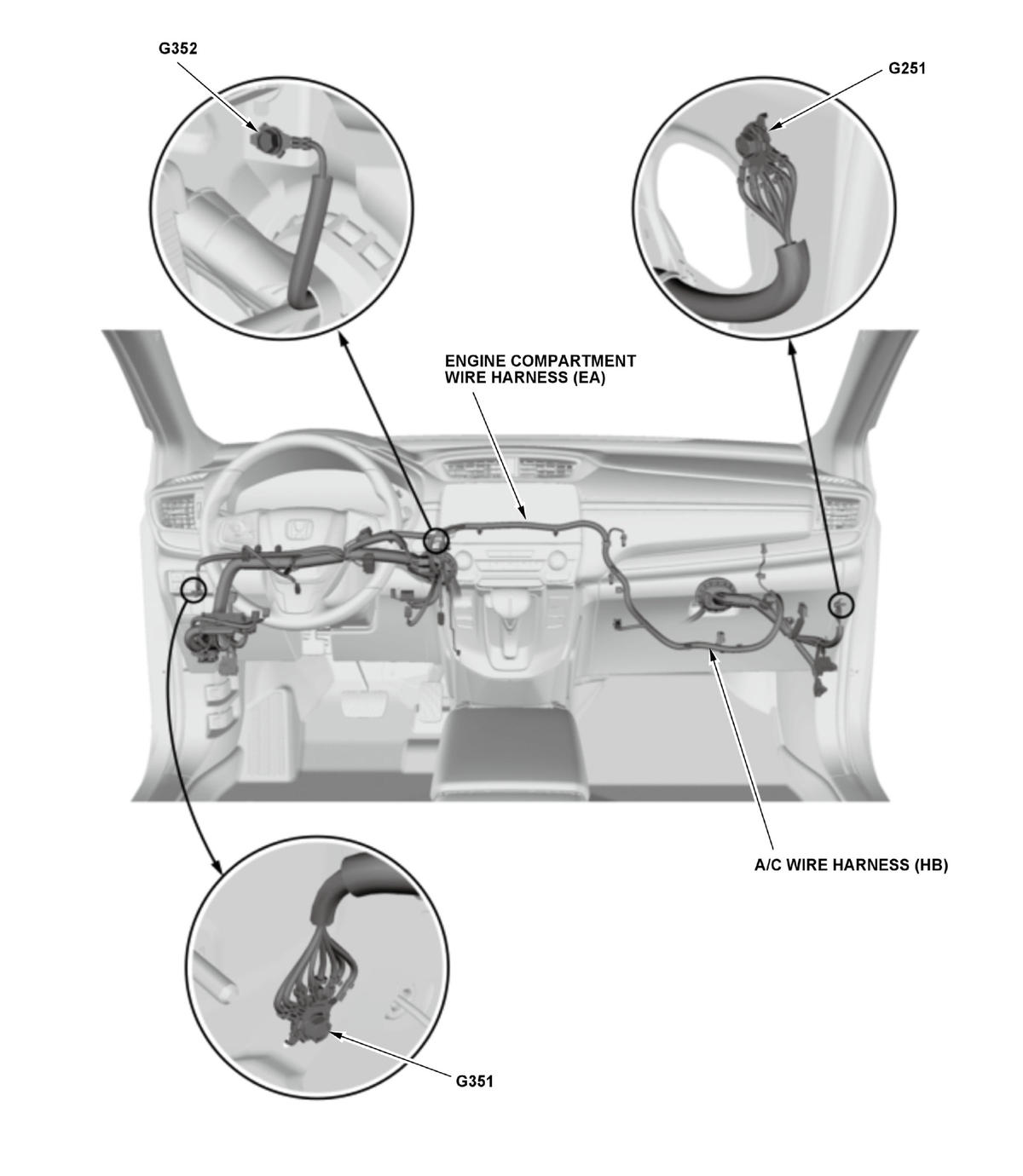

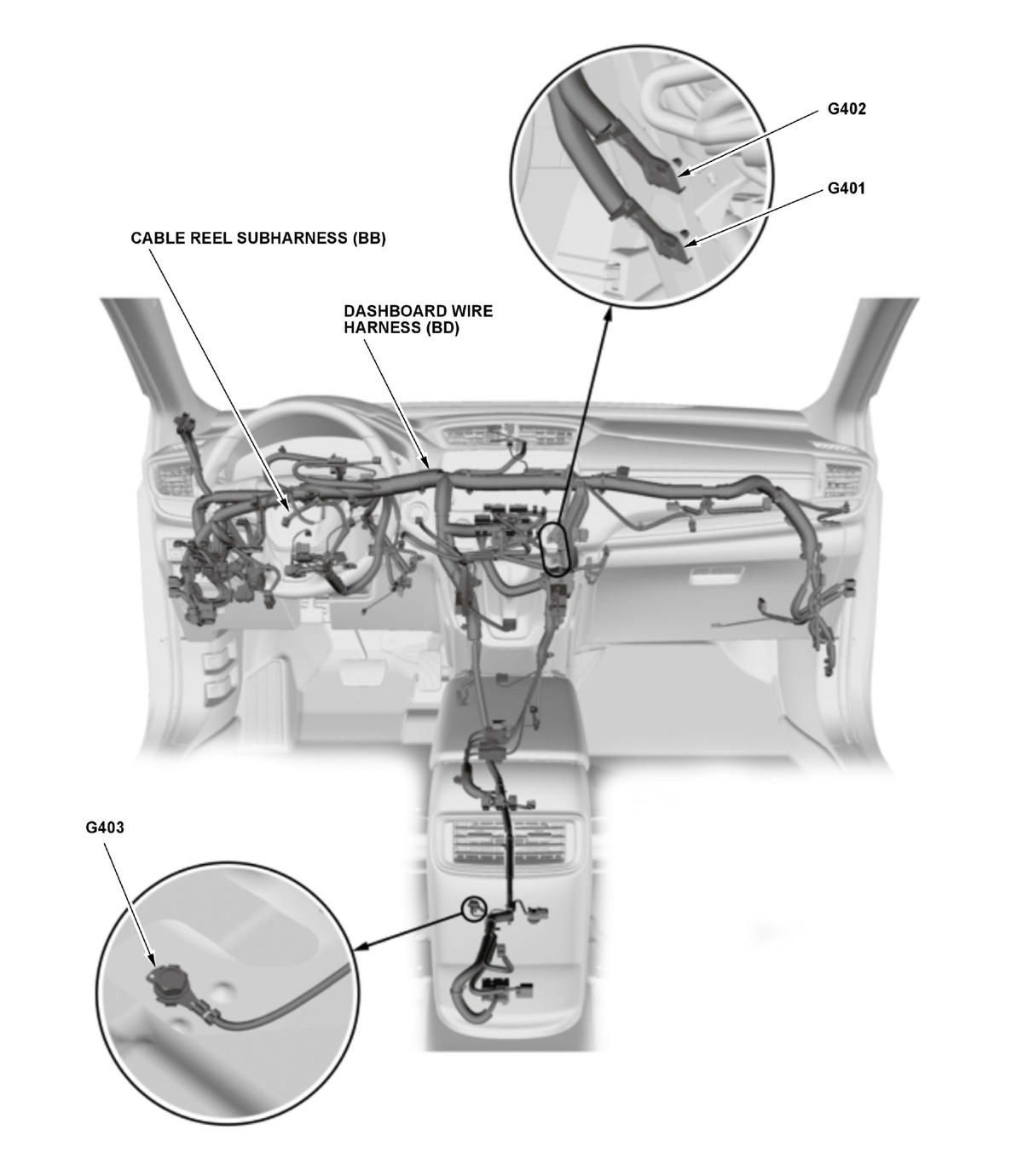

Dashboard

Courtesy of HONDA, U.S.A., INC.

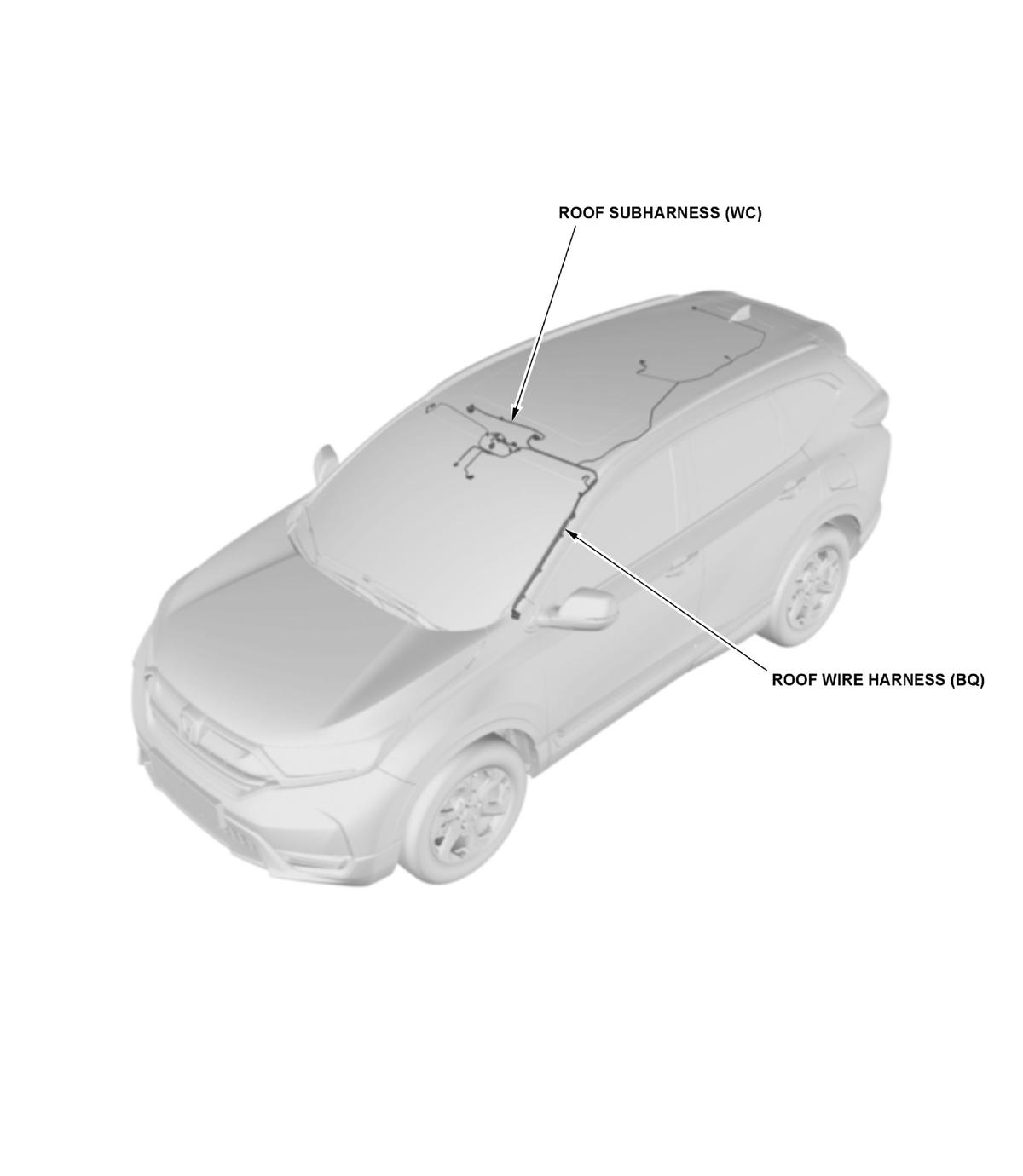

Roof

Courtesy of HONDA, U.S.A., INC.

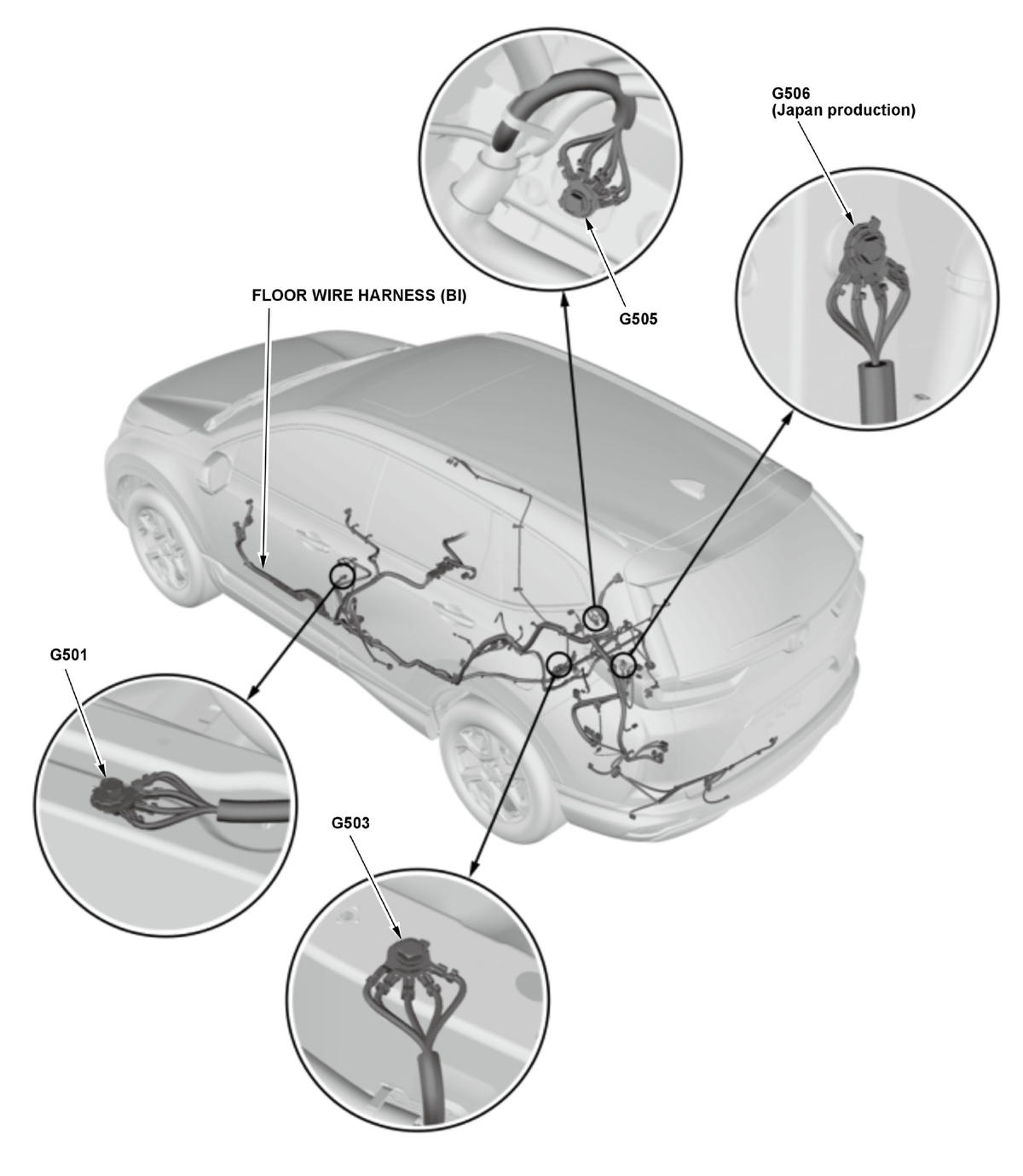

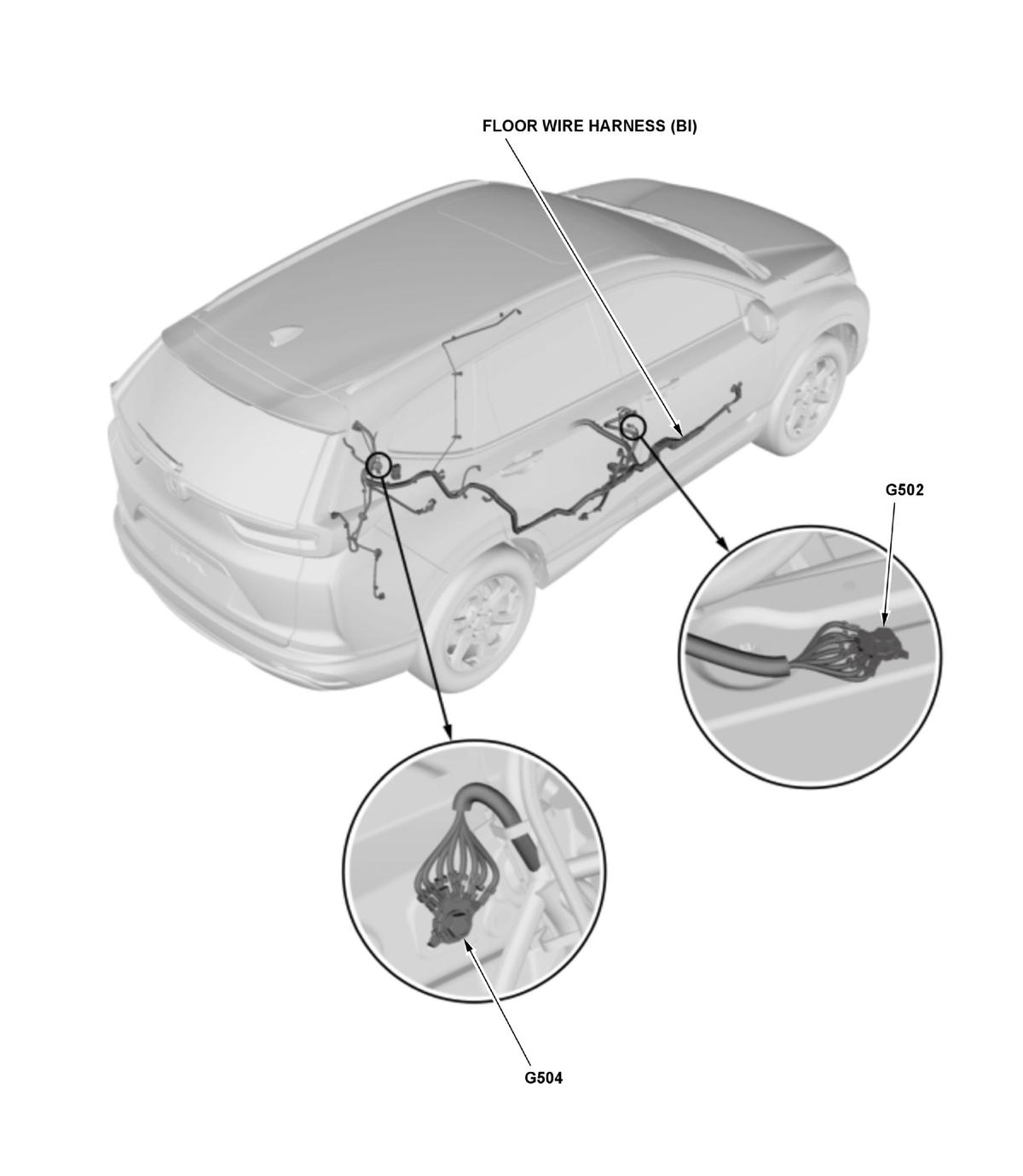

Floor - 1/2

Courtesy of HONDA, U.S.A., INC.

Floor - 2/2

Courtesy of HONDA, U.S.A., INC.

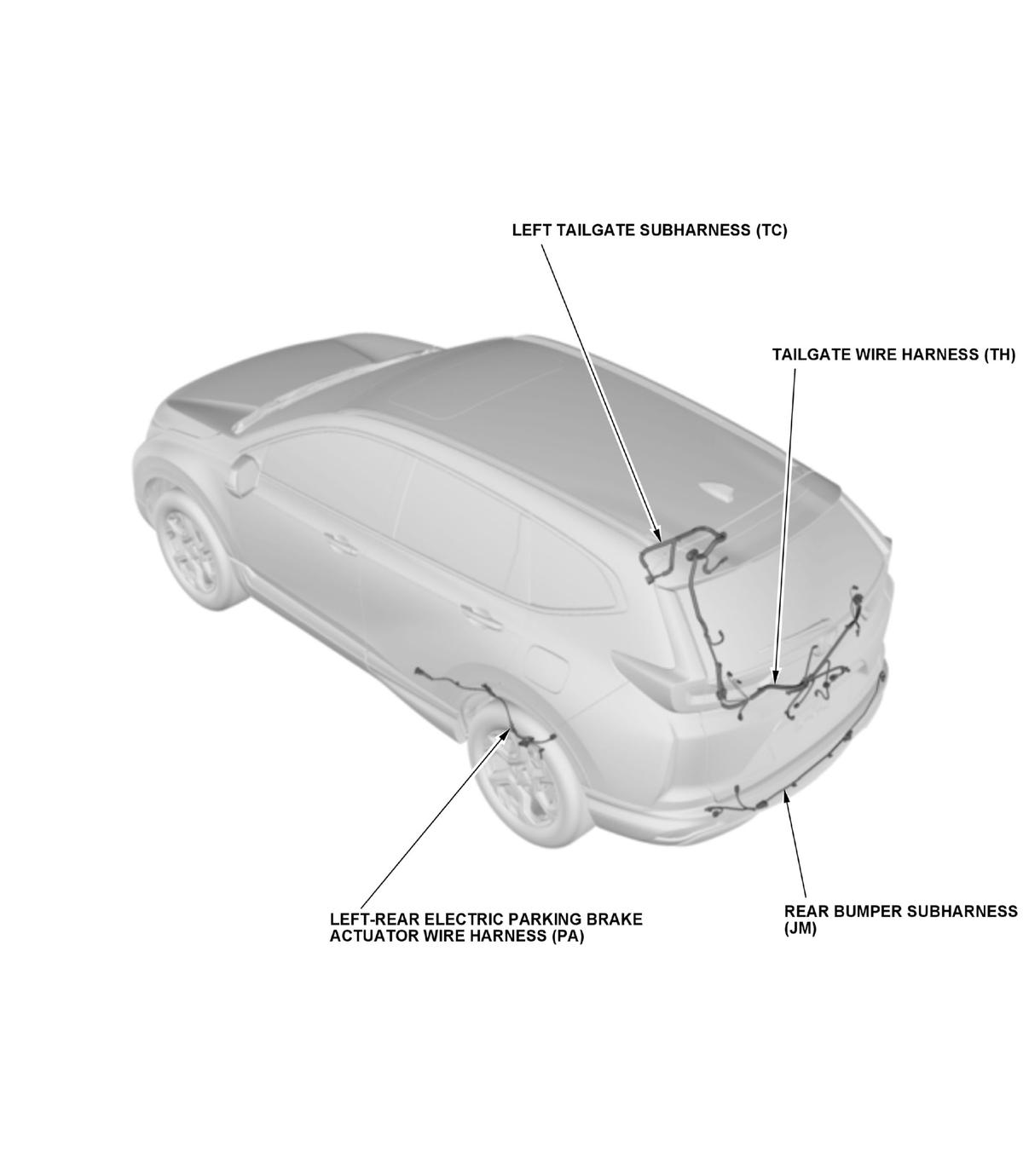

Rear - 1/2

Courtesy of HONDA, U.S.A., INC.

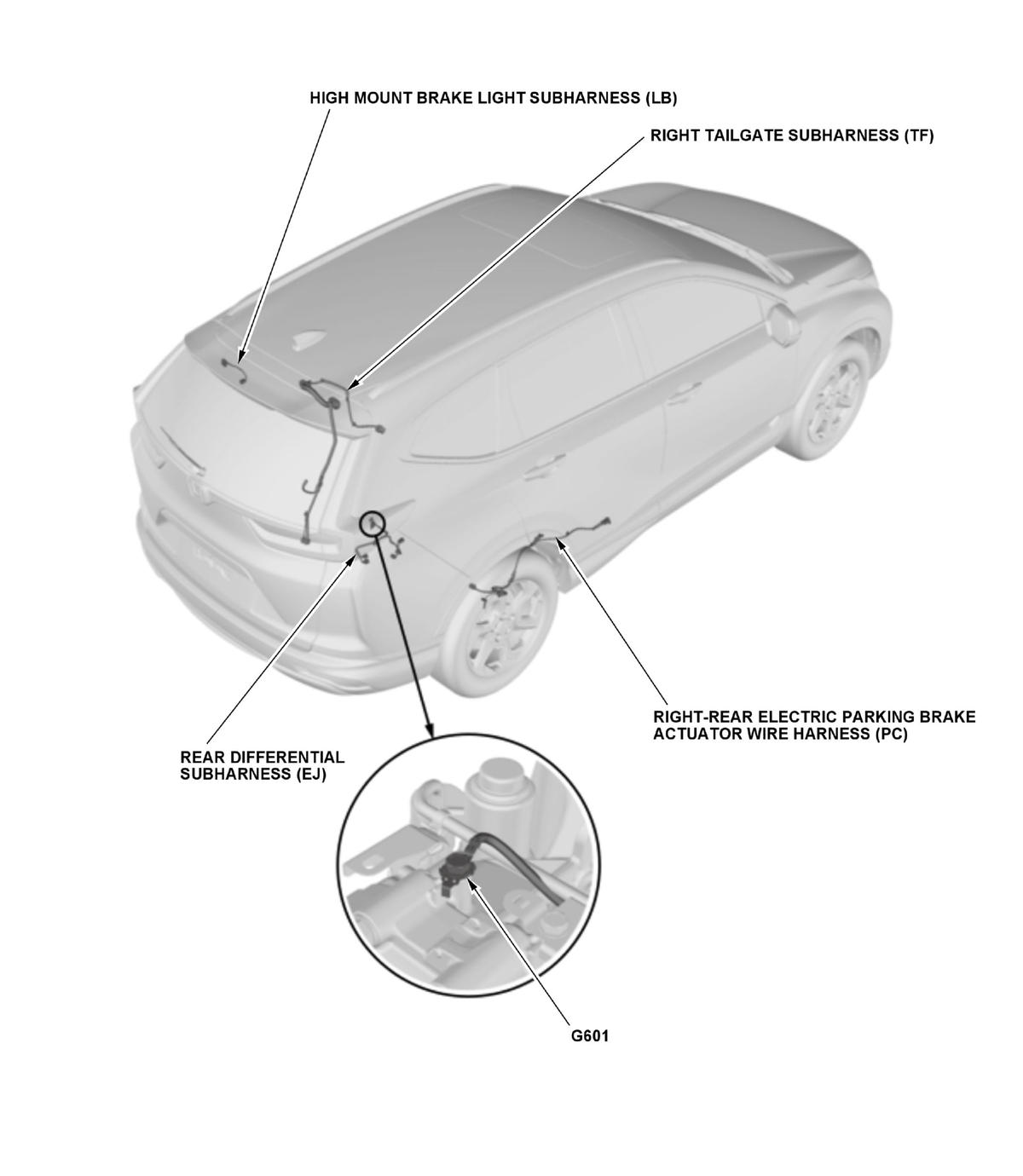

Rear - 2/2

Courtesy of HONDA, U.S.A., INC.

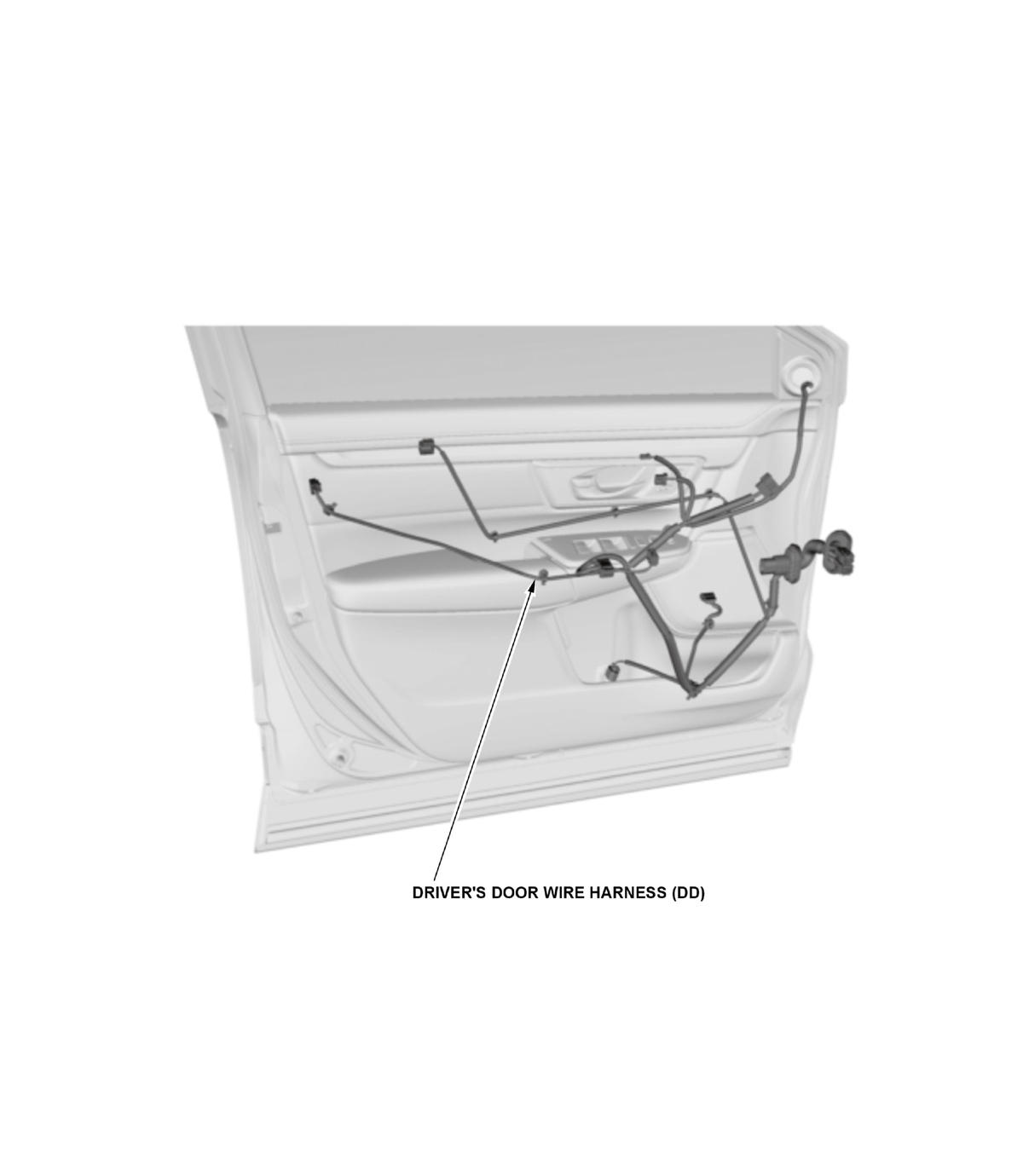

Driver's Door

Courtesy of HONDA, U.S.A., INC.

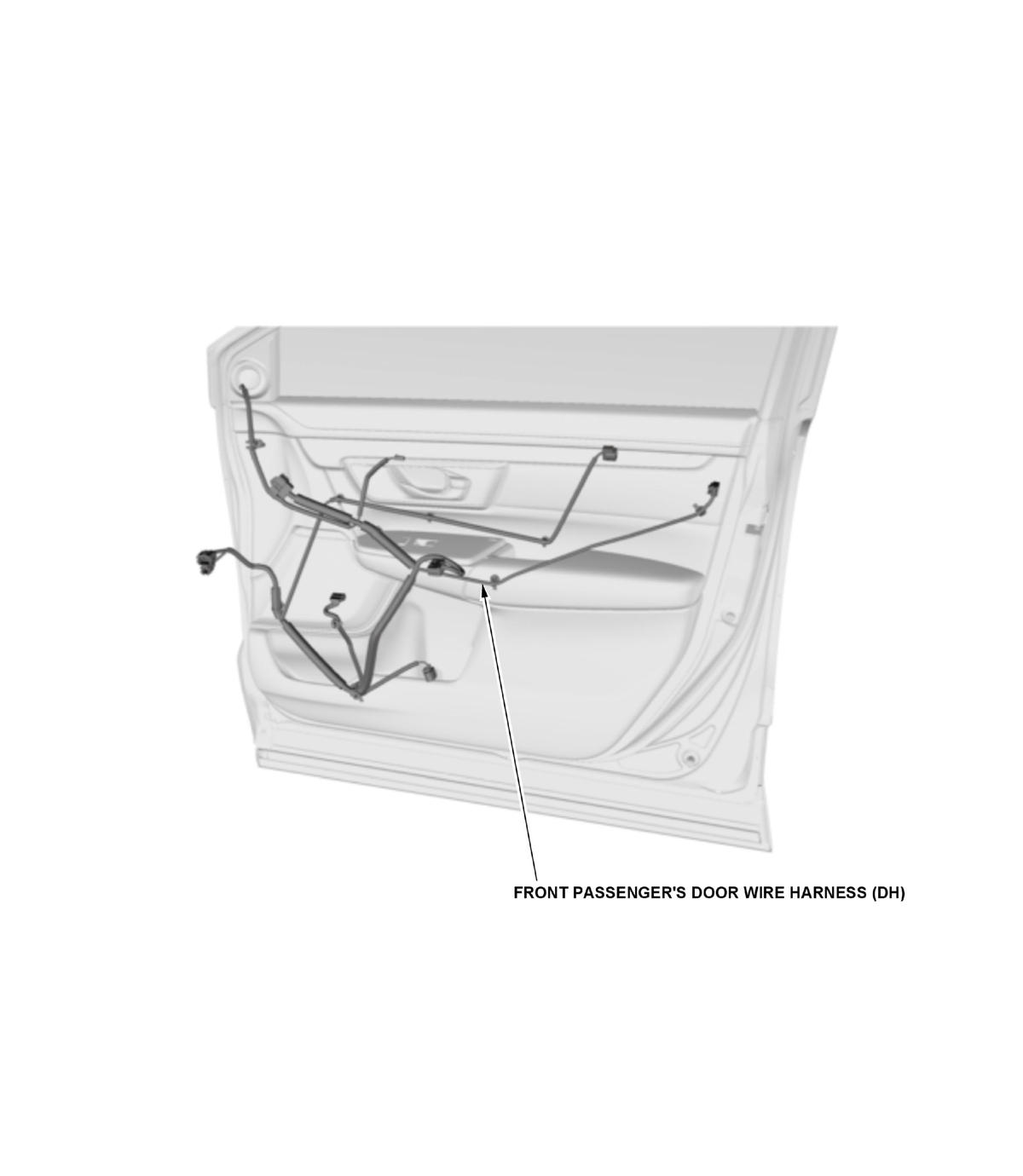

Front Passenger's Door

Courtesy of HONDA, U.S.A., INC.

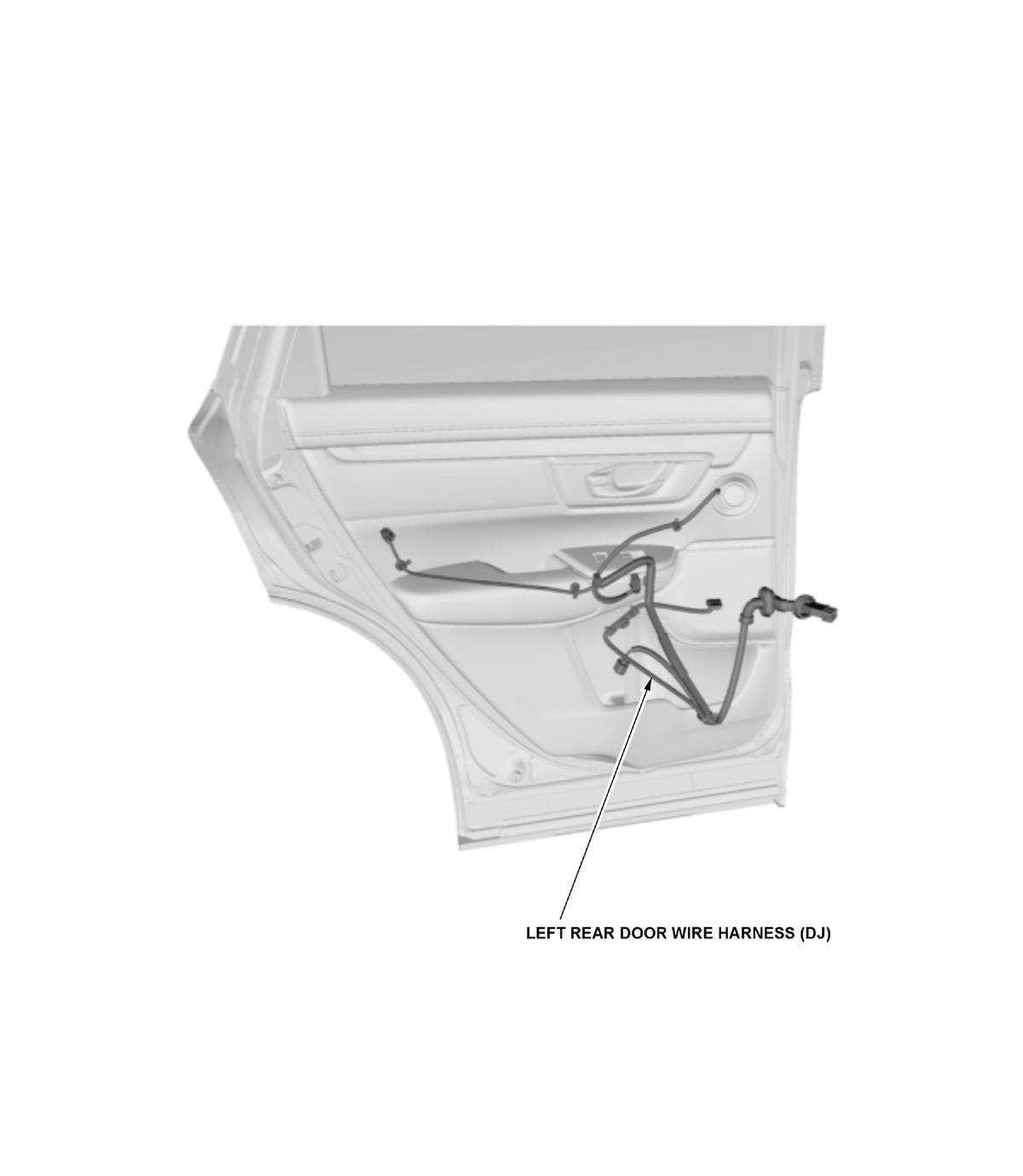

Left Rear Door

Courtesy of HONDA, U.S.A., INC.

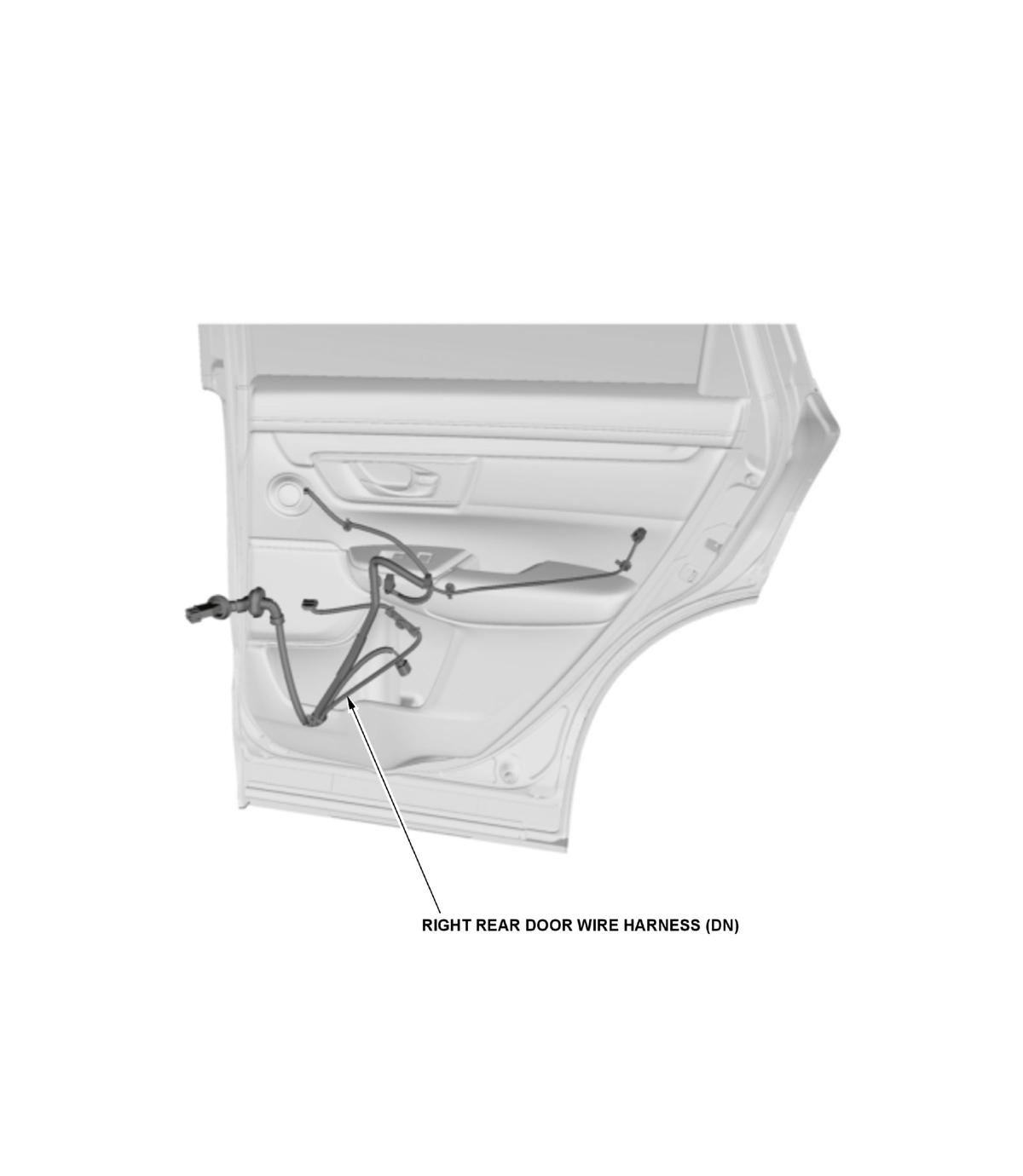

Right Rear Door

Courtesy of HONDA, U.S.A., INC.

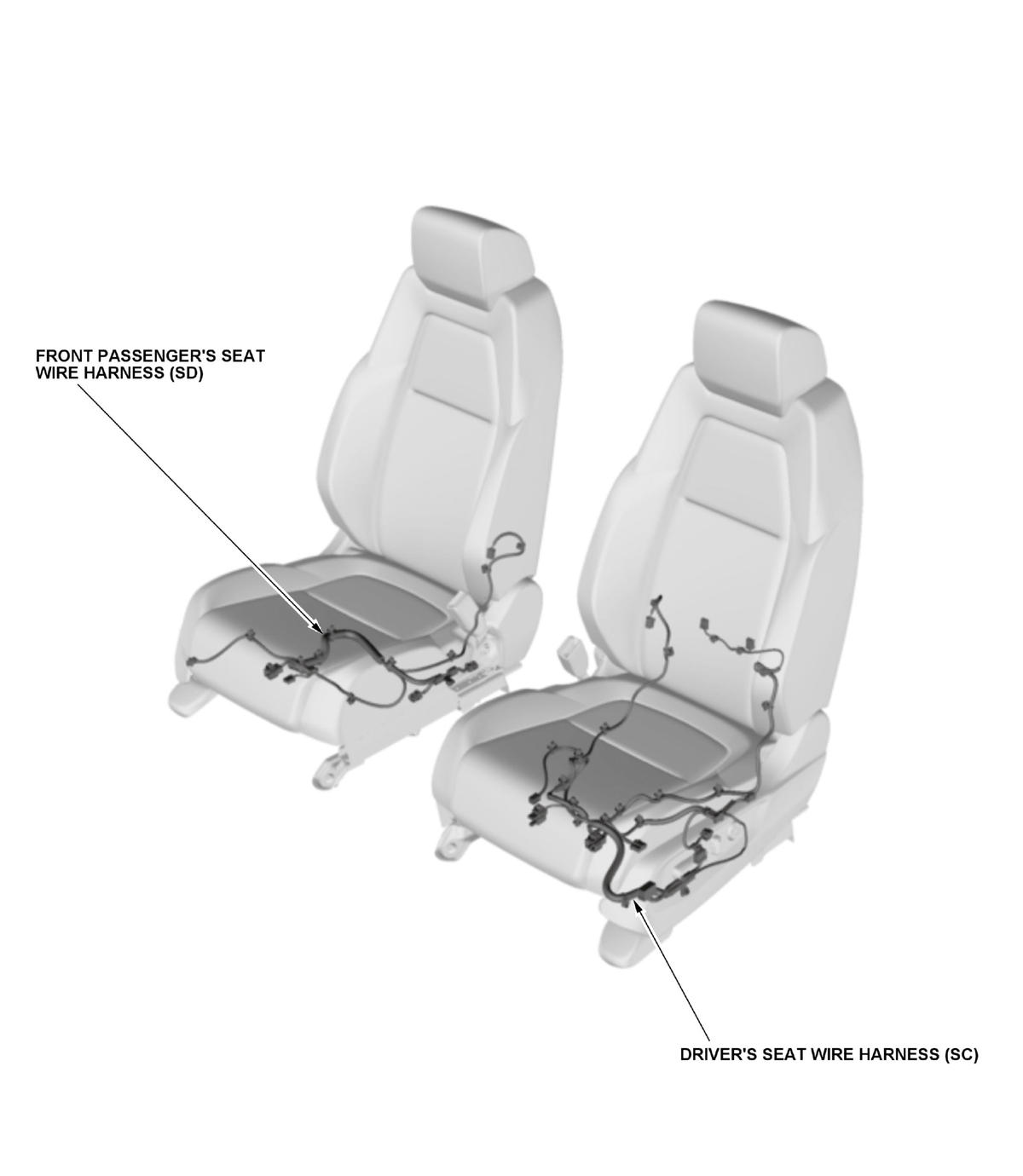

Seat

Courtesy of HONDA, U.S.A., INC.
