Removal and Installation

  1. Moonroof Wind Deflector - Remove

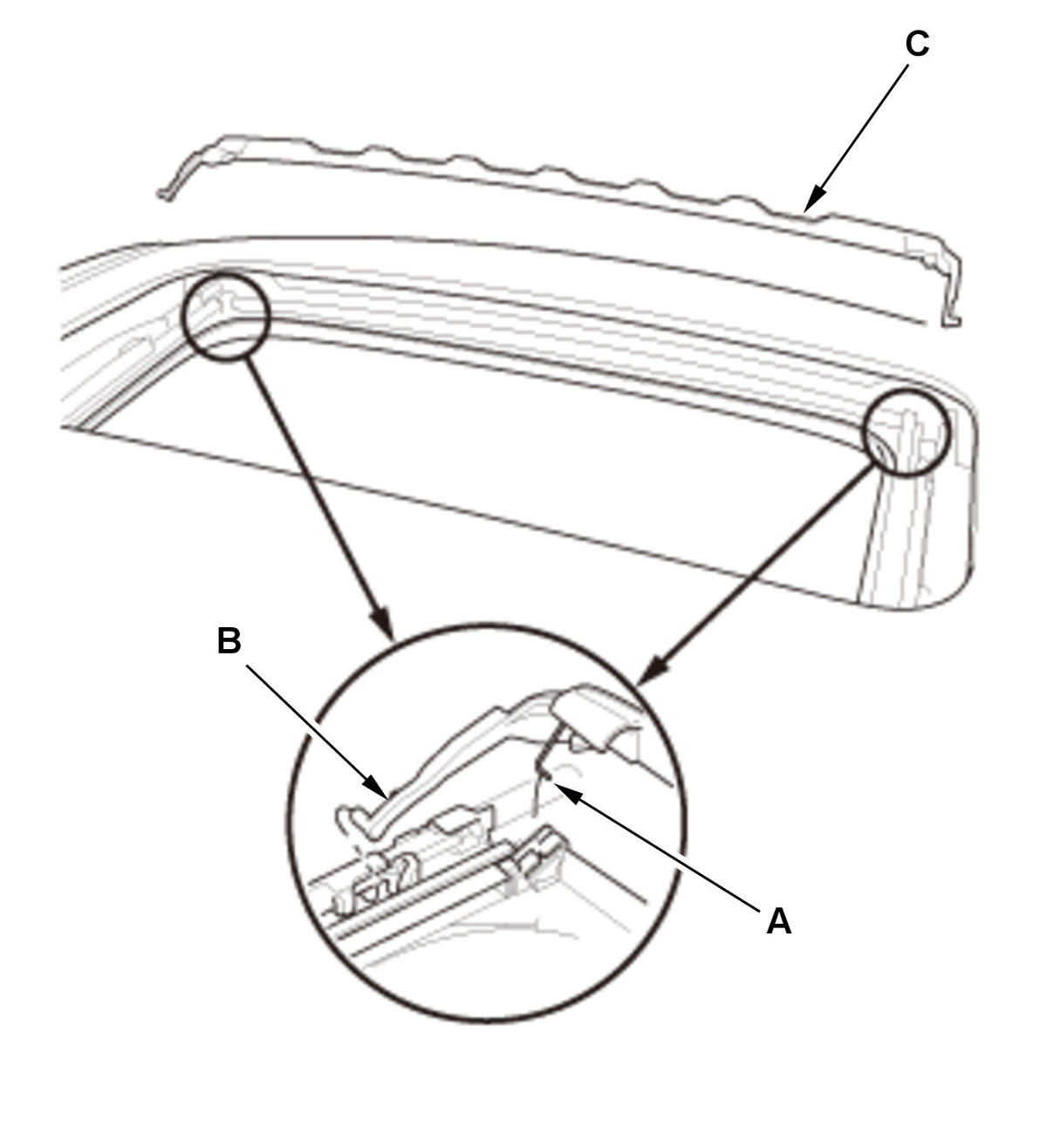

    GHH429573Courtesy of HONDA, U.S.A., INC.
    		 1. Open the glass fully.

    2. Release both deflector springs (A) and both deflector blades (B).

    3. Remove the wind deflector (C).
  2. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  3. Moonroof Motor-Control Unit - Reset
