Removal and Installation

Rear Seat - Remove

Rear Seat Cushion Cover/Pad - Remove

Courtesy of HONDA, U.S.A., INC.

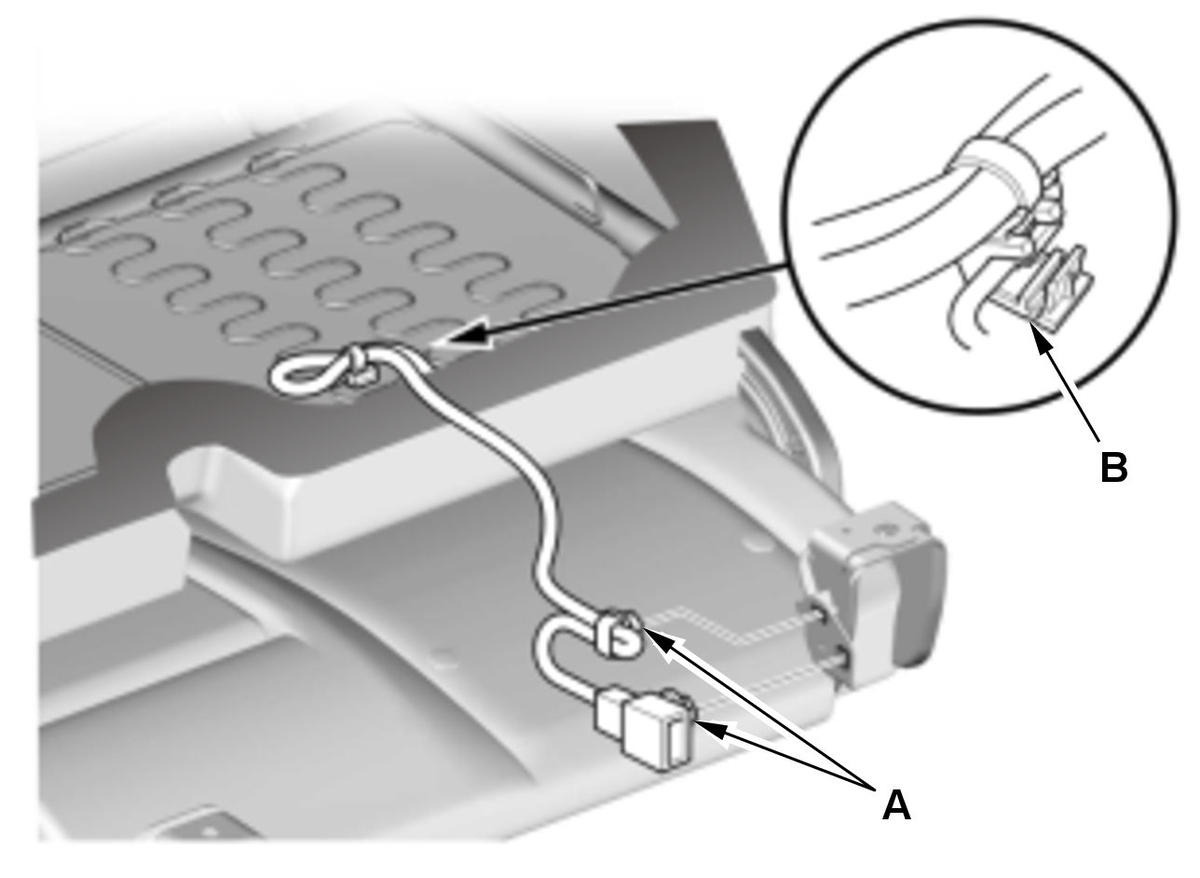

1. With seat cushion heater: Remove the harness clips (A) and the harness holder (B).

Left seat cushion

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Right seat cushion

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

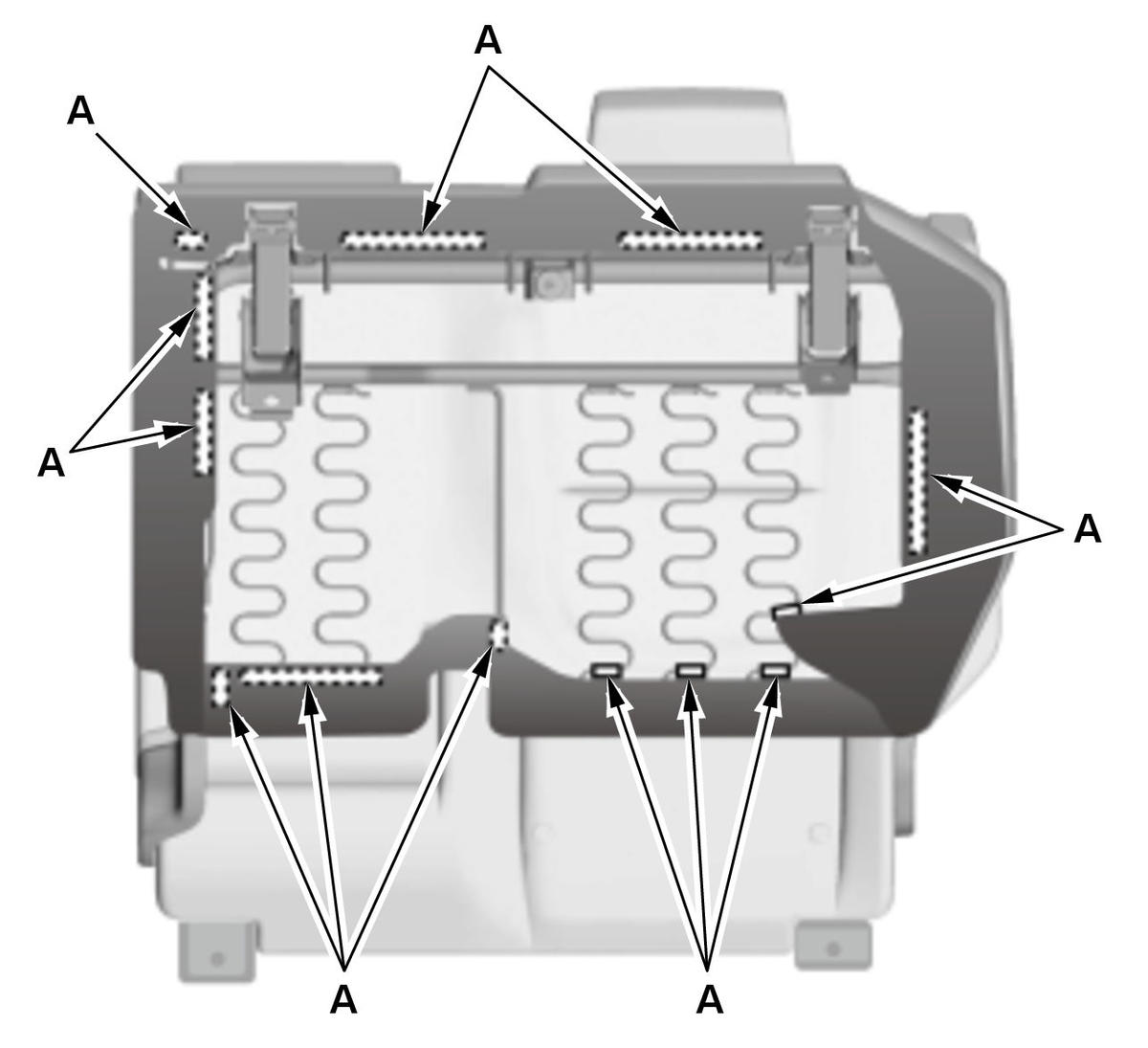

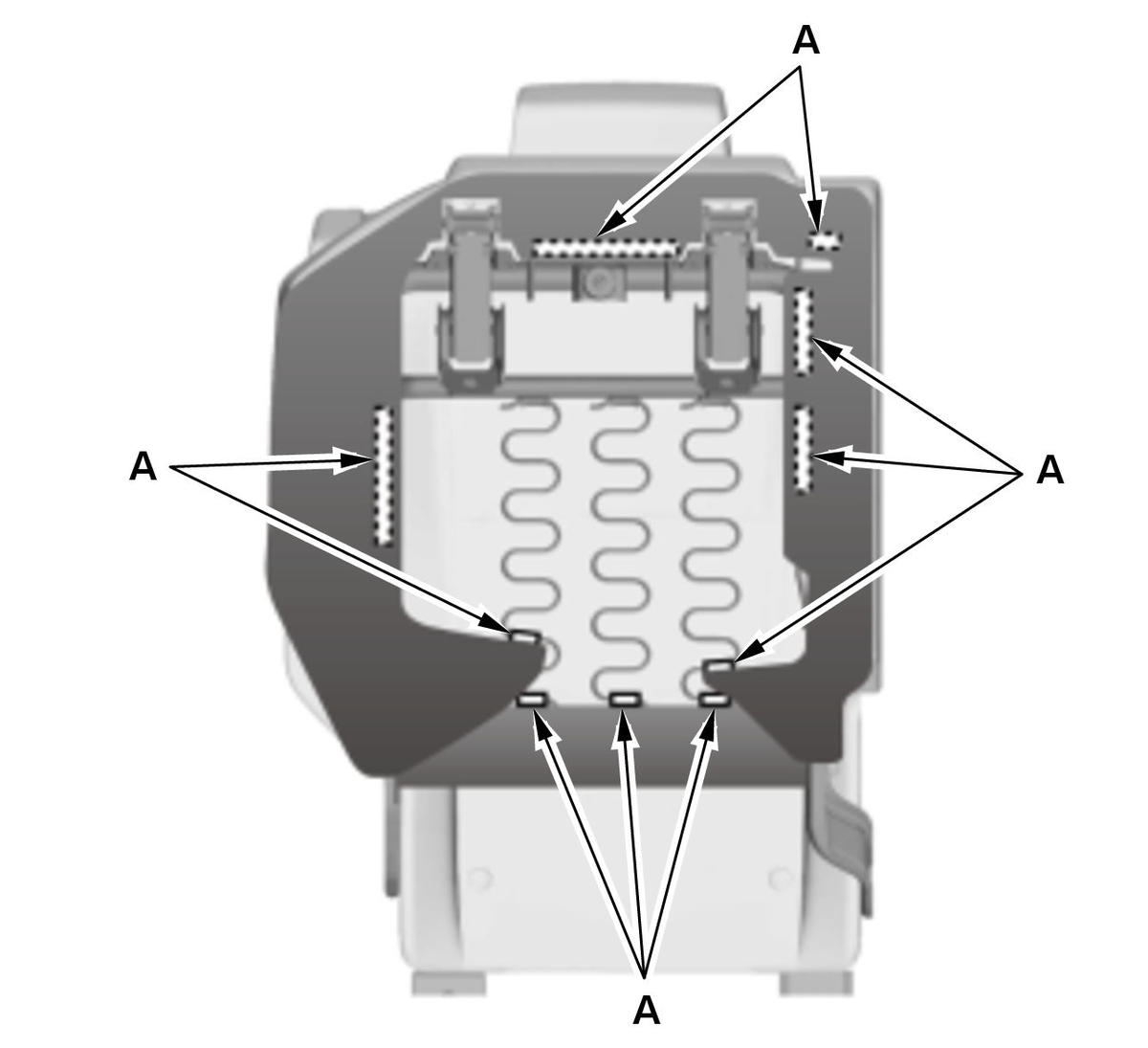

2. Release the hooks (A).

Courtesy of HONDA, U.S.A., INC.

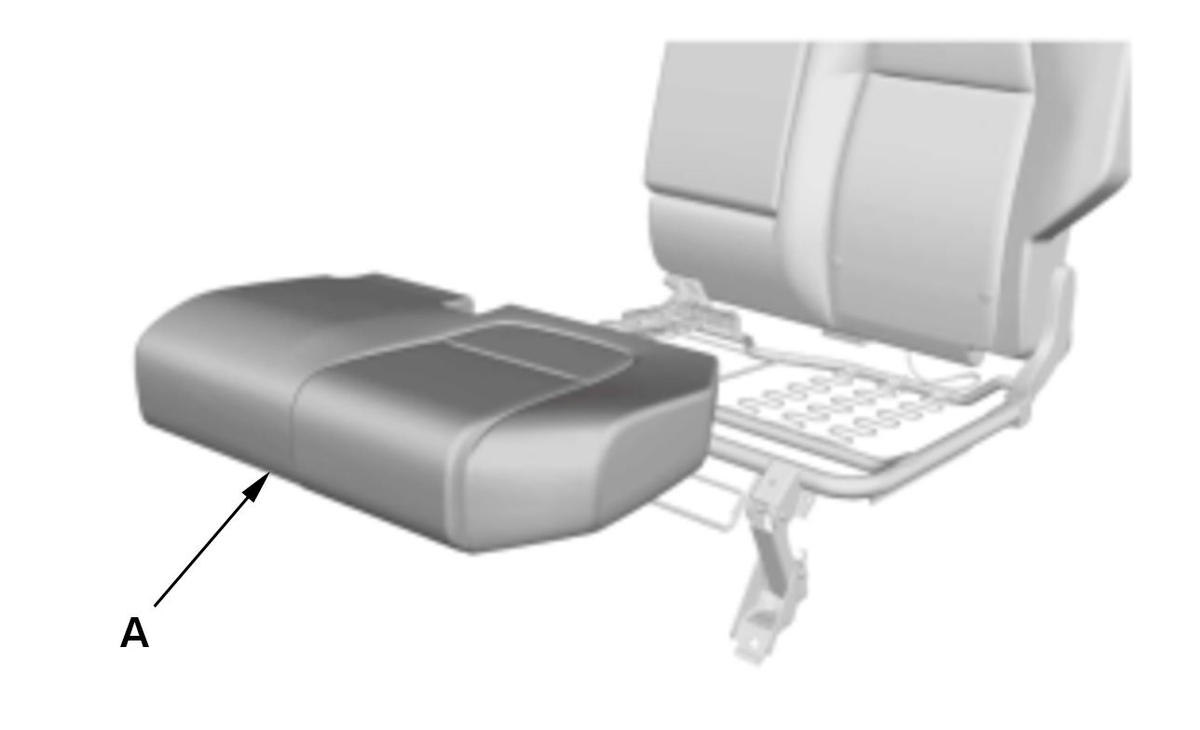

3. Remove the seat cushion cover/pad (A).

Rear Seat Cushion Cover - Remove

Left seat cushion

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Right seat cushion

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

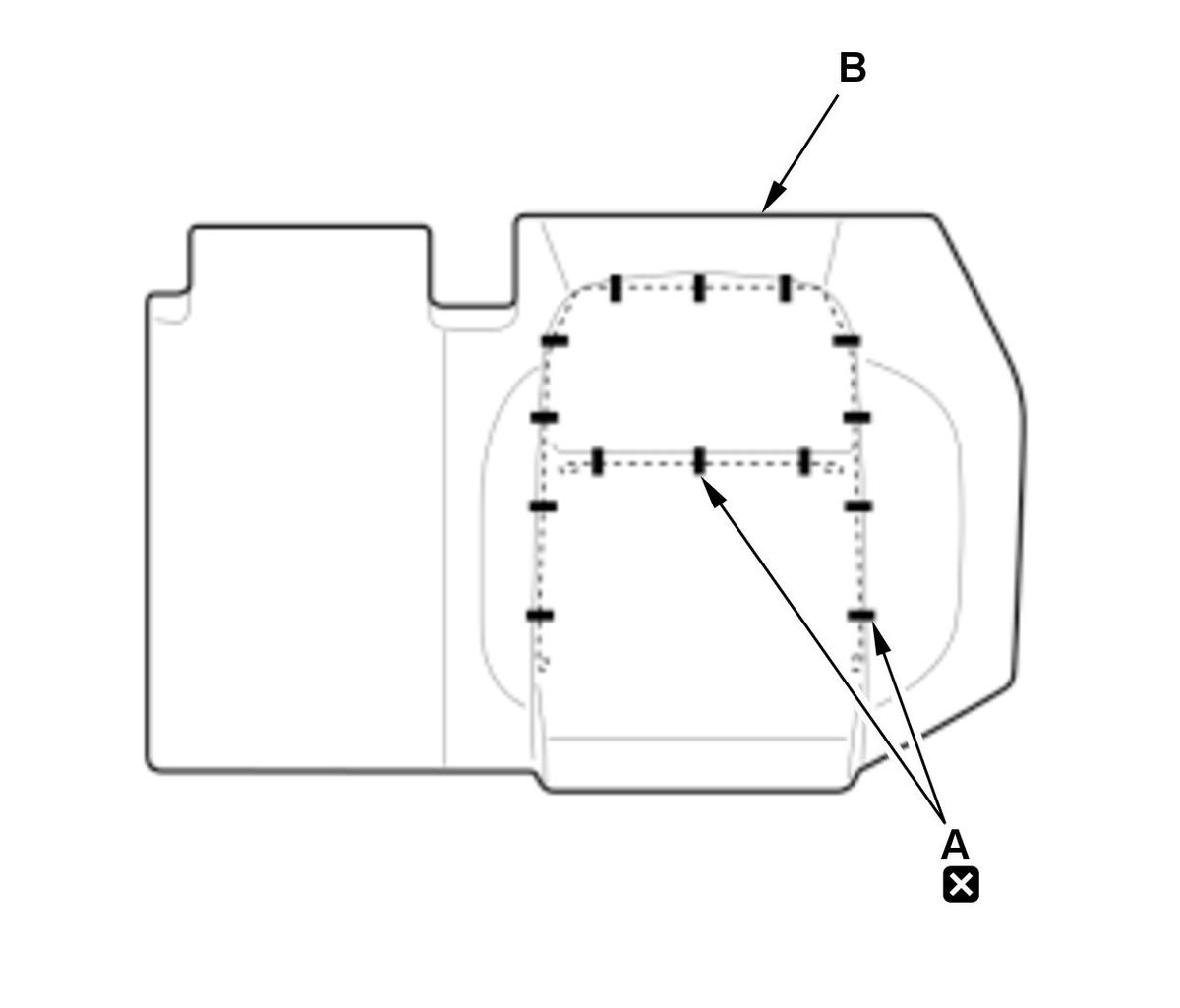

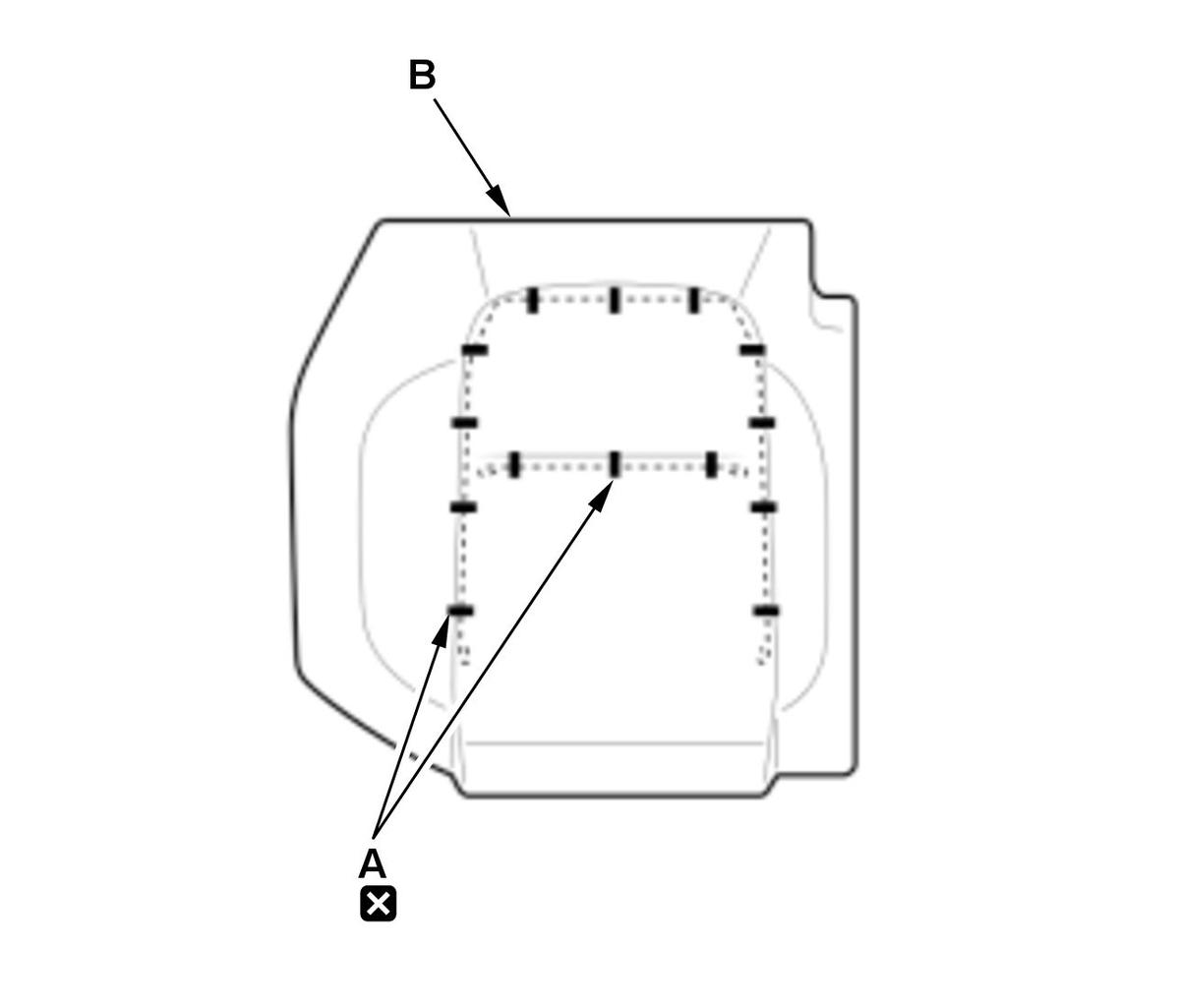

1. Remove the upholstery rings (A), and then remove the seat cushion cover (B).

All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

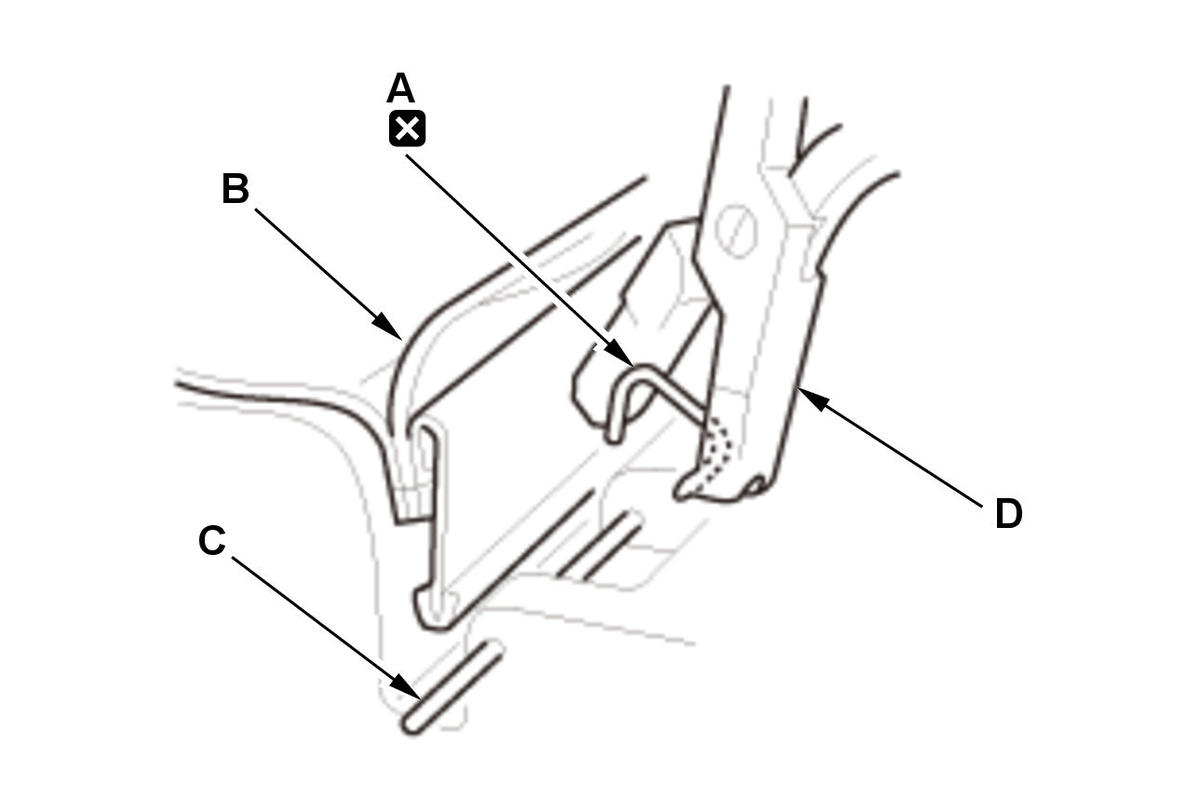

NOTE: Replace all of the upholstery rings (A) fastening the seat cushion cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
