Doors automatically relock 30 seconds after being unlocked with the remote even though a door has been opened

NOTE:  Before troubleshooting, check the B-CAN DTCs. If any DTC is indicated, troubleshoot the indicated DTC first.

1. Determine possible failure area (body control module, others)

   -1. With interior light switch: Turn the interior light switch to the DOOR position and ceiling light switch to the MIDDLE position.

   -2. Without interior light switch: Turn the ceiling light switch to the MIDDLE position.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Watch the individual map lights, the ceiling light, and the door indicators on the gauge control module.

   Do the individual map lights and door indicators come on when the door is open, and go off when the door is closed?

   YES

   Replace the body control module .

   NO

   Go to step 2.

2. Open wire check (FL DOOR SW, FR DOOR SW, RL DOOR SW, RR DOOR SW, T/G SW lines)

   -1. Disconnect the following connectors.

   Body control module connector D (40P)Each door switch 1P connectorPower tailgate closer unit connector B (6P) (with power tailgate)Tailgate latch 4P connector (without power tailgate)

   -2. Check for continuity between test points 1 and 2 respectively.

   Driver's door switch

   Test condition	Vehicle OFF (LOCK) modeBody control module connector D (40P): disconnectedDriver's door switch 1P connector: disconnected
   Test point 1	Body control module connector D (40P) No. 22

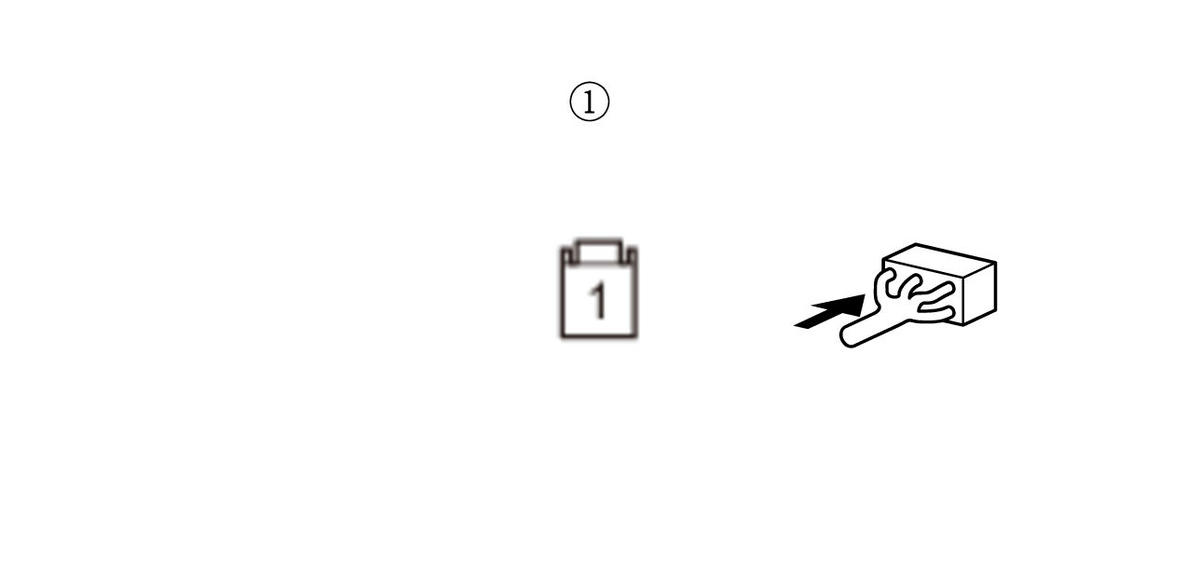

   Test point 2	Driver's door switch 1P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   Front passenger's door switch

   Test condition	Vehicle OFF (LOCK) modeBody control module connector D (40P): disconnectedFront passenger's door switch 1P connector: disconnected
   Test point 1	Body control module connector D (40P) No. 23
   Test point 2	Front passenger's door switch 1P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   Left rear door switch

   Test condition	Vehicle OFF (LOCK) modeBody control module connector D (40P): disconnectedLeft rear door switch 1P connector: disconnected
   Test point 1	Body control module connector D (40P) No. 24
   Test point 2	Left rear door switch 1P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   Right rear door switch

   Test condition	Vehicle OFF (LOCK) modeBody control module connector D (40P): disconnectedRight rear door switch 1P connector: disconnected
   Test point 1	Body control module connector D (40P) No. 28
   Test point 2	Right rear door switch 1P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   Power tailgate closer unit (with power tailgate)

   Test condition	Vehicle OFF (LOCK) modeBody control module connector D (40P): disconnectedPower tailgate closer unit connector B (6P): disconnected
   Test point 1	Body control module connector D (40P) No. 27

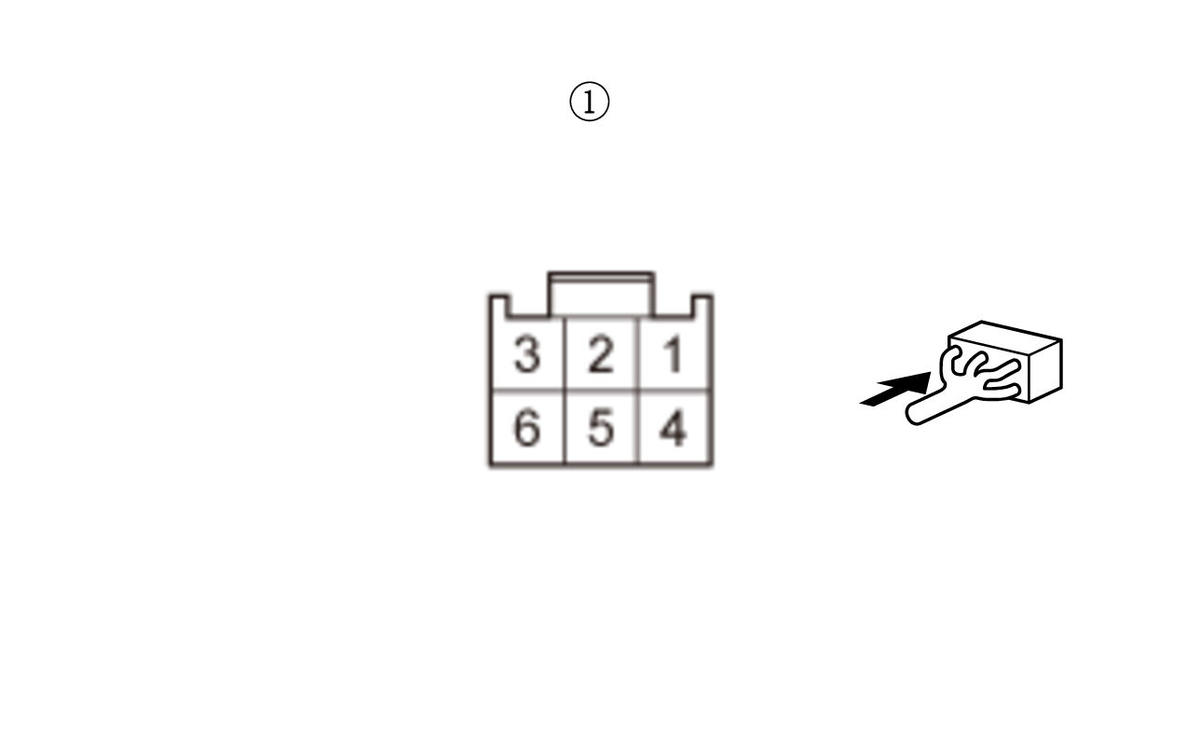

   Test point 2	Power tailgate closer unit connector B (6P) (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   Tailgate latch switch (without power tailgate)

   Test condition	Vehicle OFF (LOCK) modeBody control module connector D (40P): disconnectedTailgate latch 4P connector: disconnected
   Test point 1	Body control module connector D (40P) No. 27

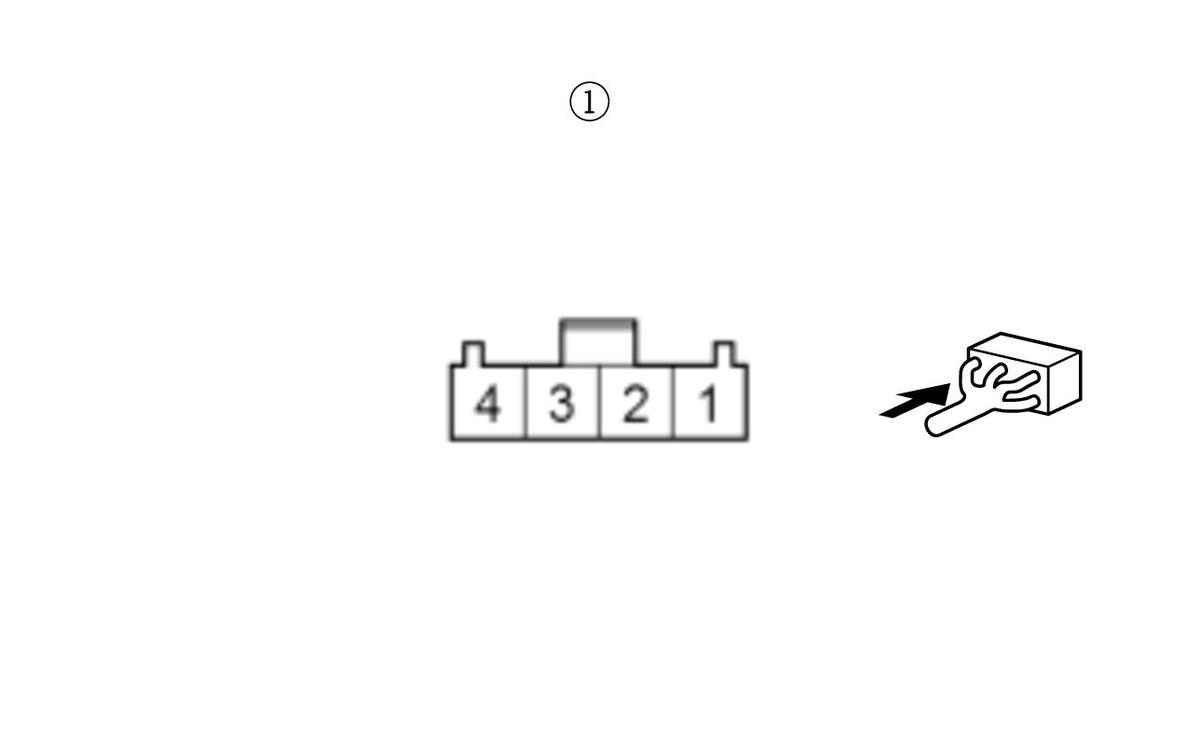

   Test point 2	Tailgate latch 4P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES: Door switch

   The FL DOOR SW, FR DOOR SW, RL DOOR SW, and RR DOOR SW wires are OK. Replace the bad door switch.

   YES: Power tailgate closer unit (with power tailgate)

   The T/G SW wire is OK. Faulty Power tailgate closer unit circuit. Check for Power tailgate control unit DTCs.

   YES: Tailgate latch switch (without power tailgate)

   The T/G SW wire is OK. Faulty tailgate latch switch or GND line, go to step 3.

   NO

   Repair an open or high resistance in the wire.

3. Open wire check (GND line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) modeBody control module connector D (40P): disconnectedTailgate latch 4P connector: disconnected
   Test point 1	Tailgate latch 4P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The GND wire is OK. Faulty tailgate latch switch; replace the tailgate latch .

   NO

   Repair an open or high resistance in the ground wire or poor ground (G505).
