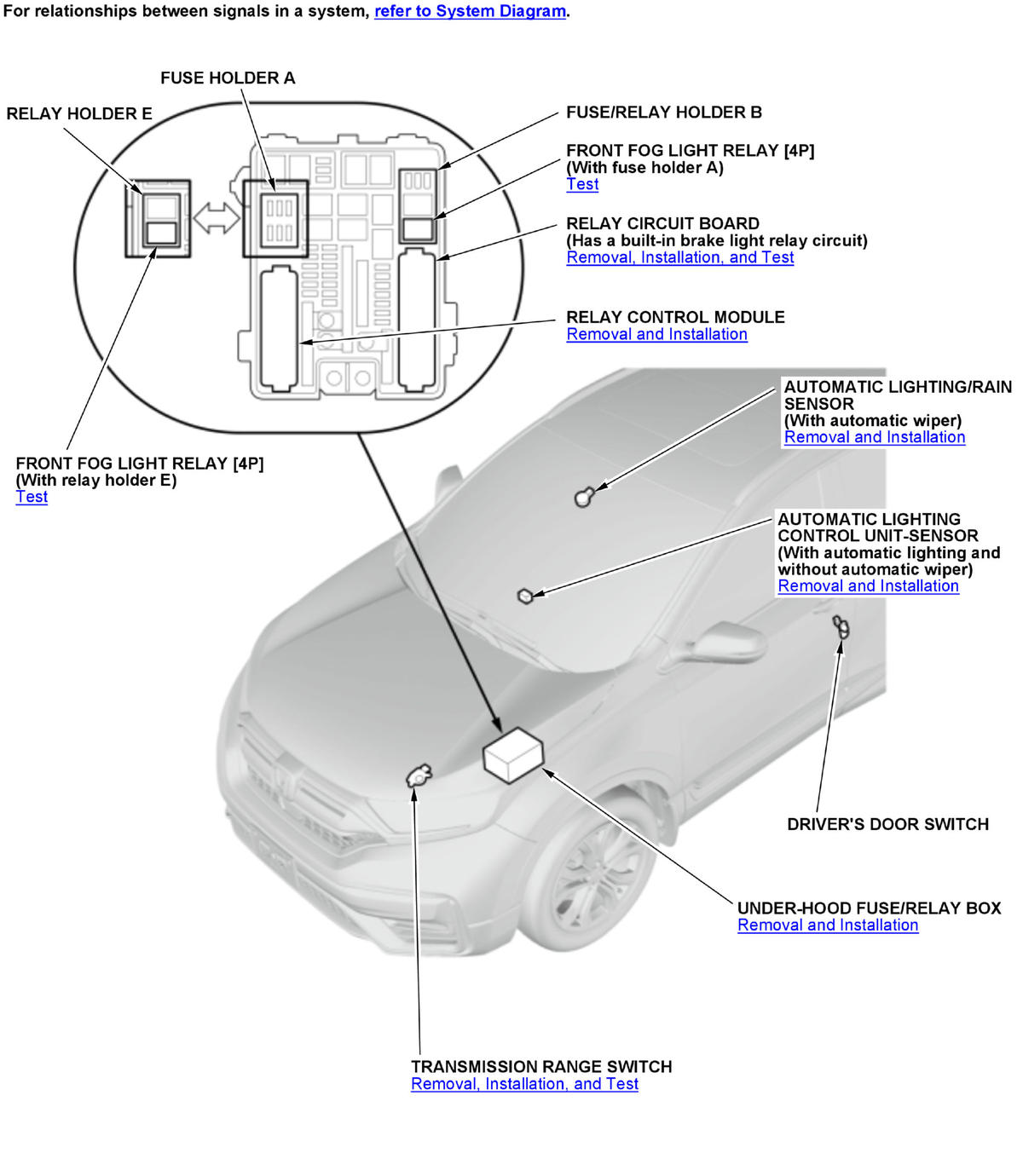

Exterior Lights Component Location Index

Courtesy of HONDA, U.S.A., INC.

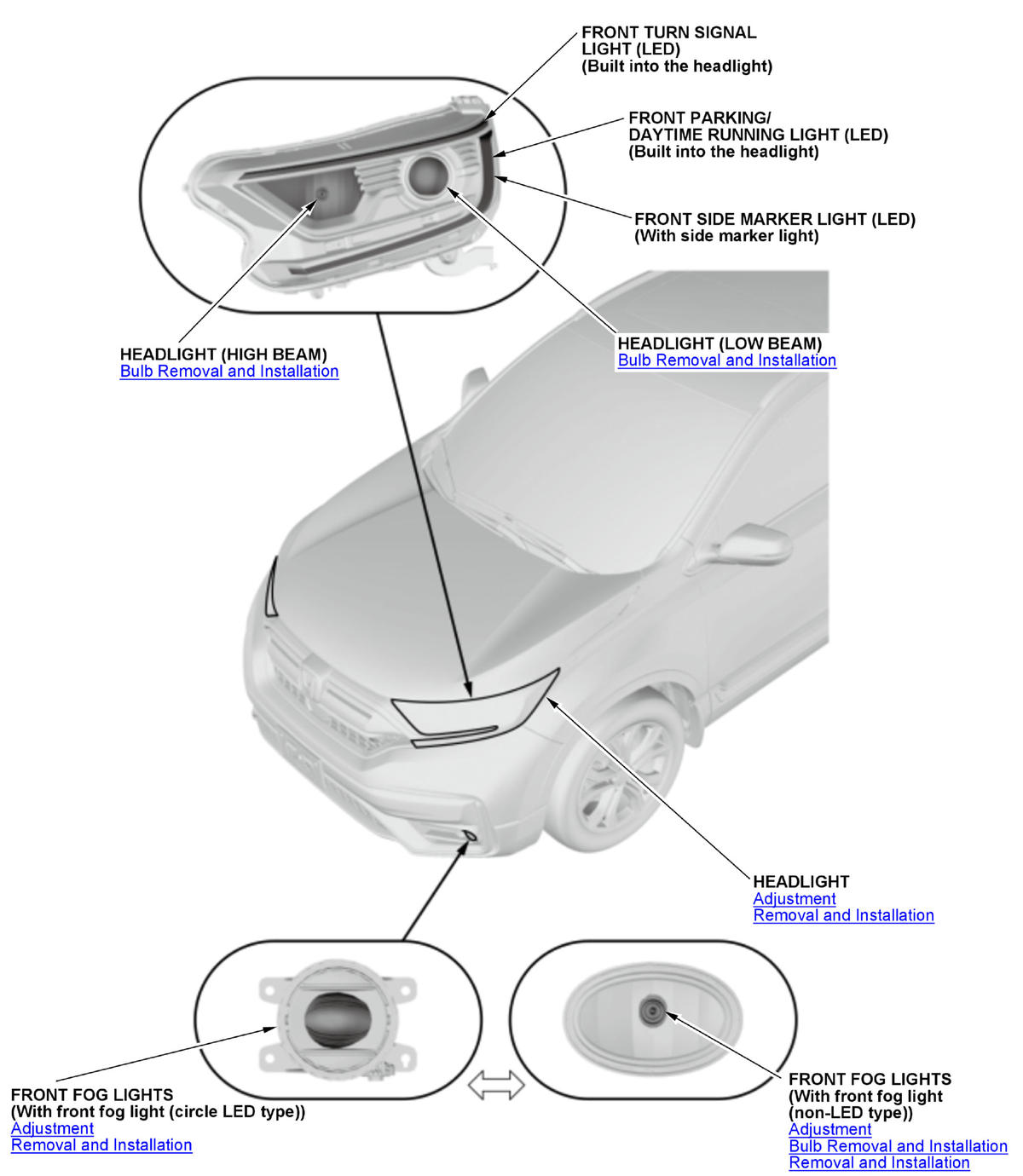

Headlight (HIGH/LOW) (bulb type)

Courtesy of HONDA, U.S.A., INC.

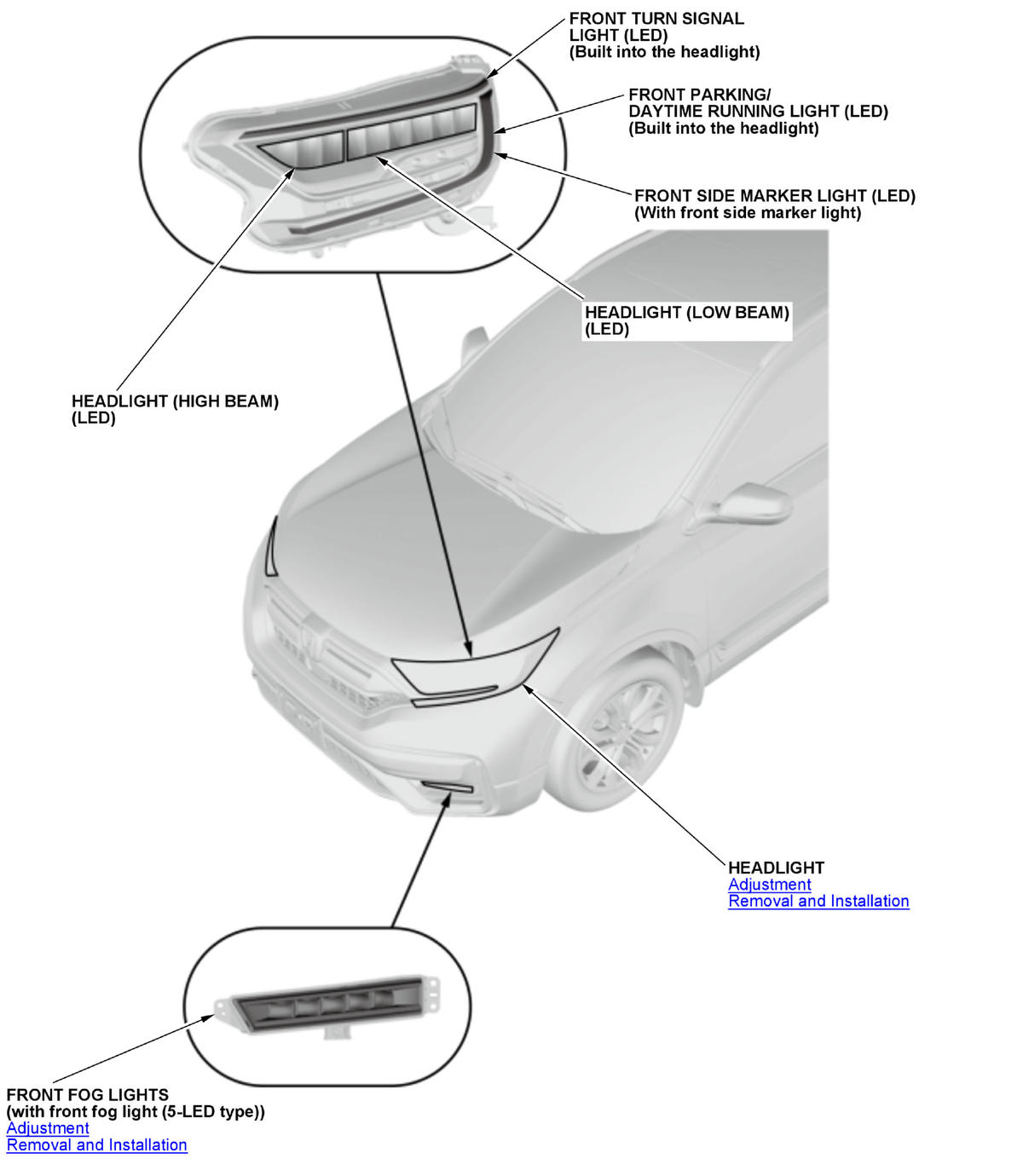

Headlight (HIGH/LOW) (LED type)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
