Front Fog Light Adjustment: Adjustment

• Park the vehicle on a level surface.
• Make sure the tire pressures are correct.
• The driver or someone who weighs the same should sit in the driver's seat.
• Unload the vehicle.

The front fog lights should aim down slightly. To check for proper adjustment:

1. Park the vehicle in front of a wall or screen (A).

2. Turn the front fog lights on.

3. Determine if the front fog lights are aimed properly:

• Measure the height (B) of the front fog lights.
• On the wall or screen, mark the height of the front fog lights with a piece of tape (C).

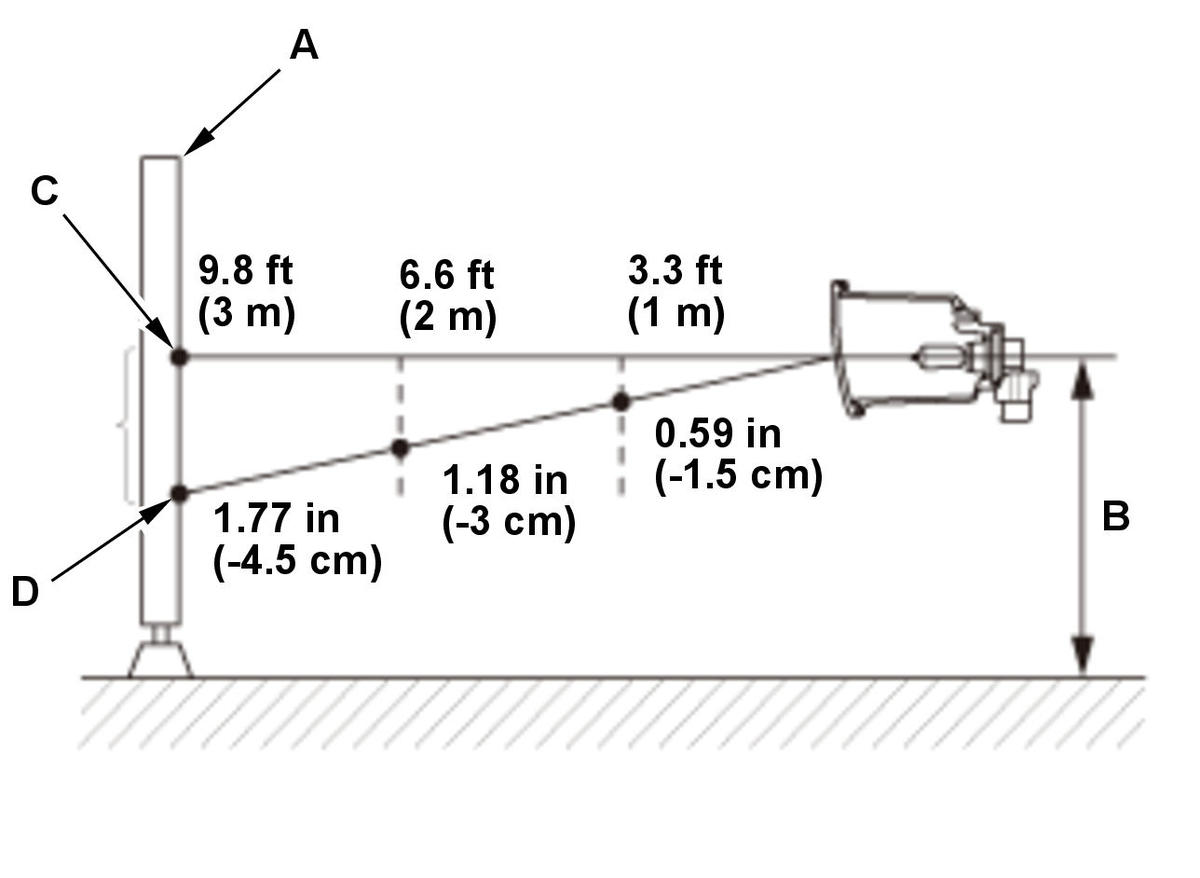

• Check each front fog light beam's height. Adjust them both so they are approximately 1.77 in (4.5 cm) lower (D) than the height of the front fog lights at a distance of 9.8 ft (3 m).

For example, if the vehicle is parked 9.8 ft (3 m) from the wall or screen, the top of the front fog light beam should be 1.77 in (4.5 cm) below the tape mark.

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

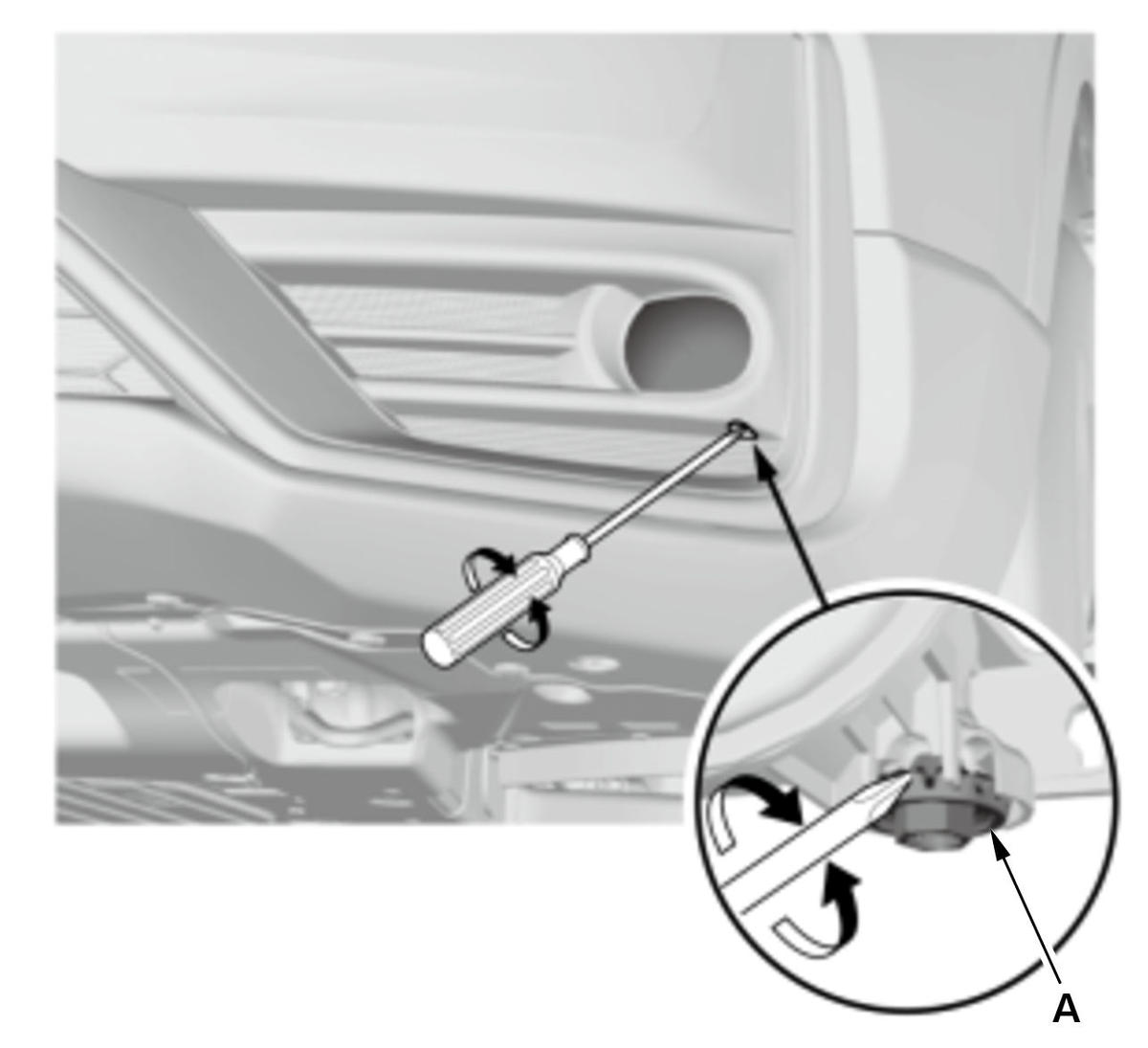

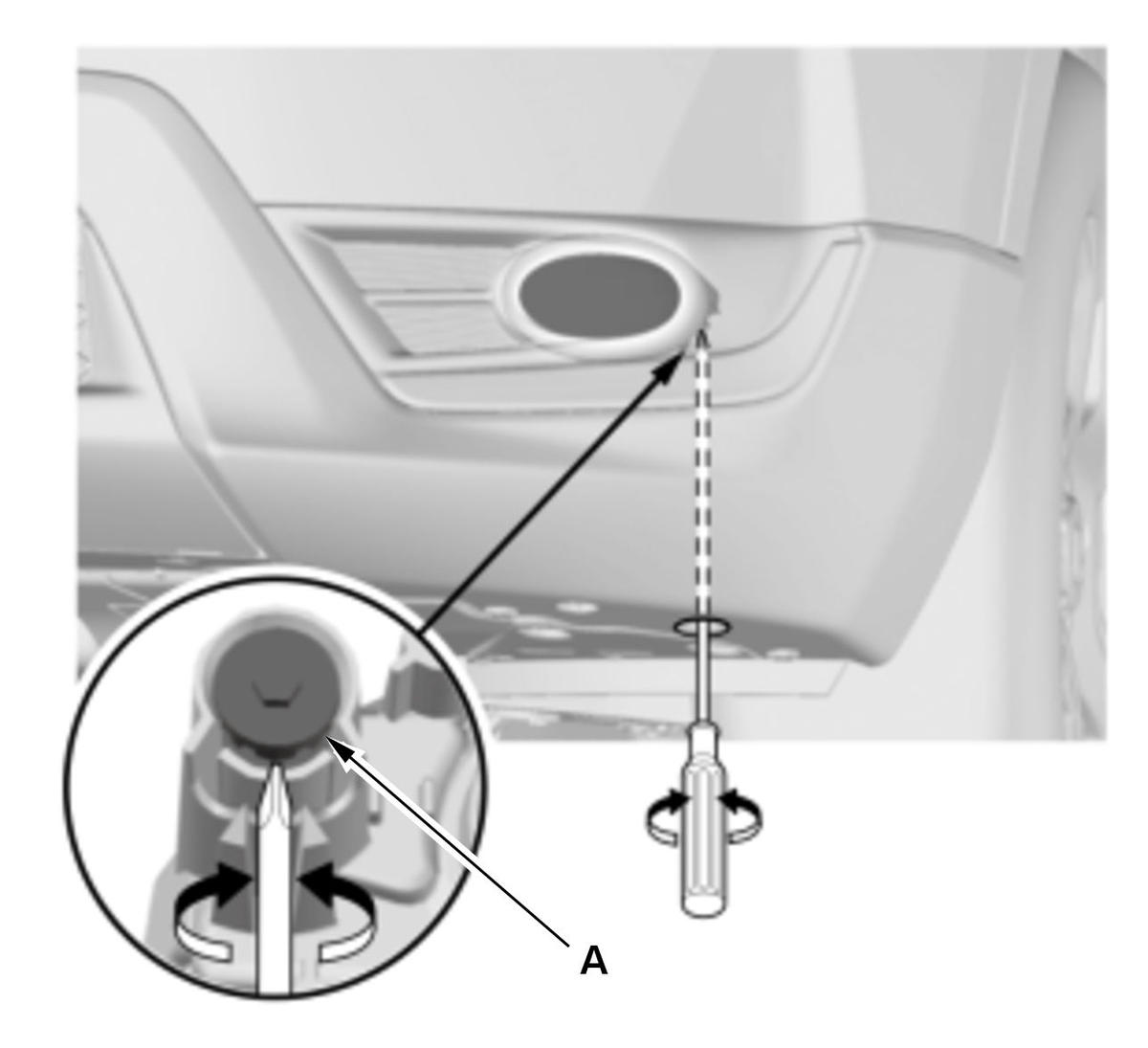

With front fog light (circle LED type)

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

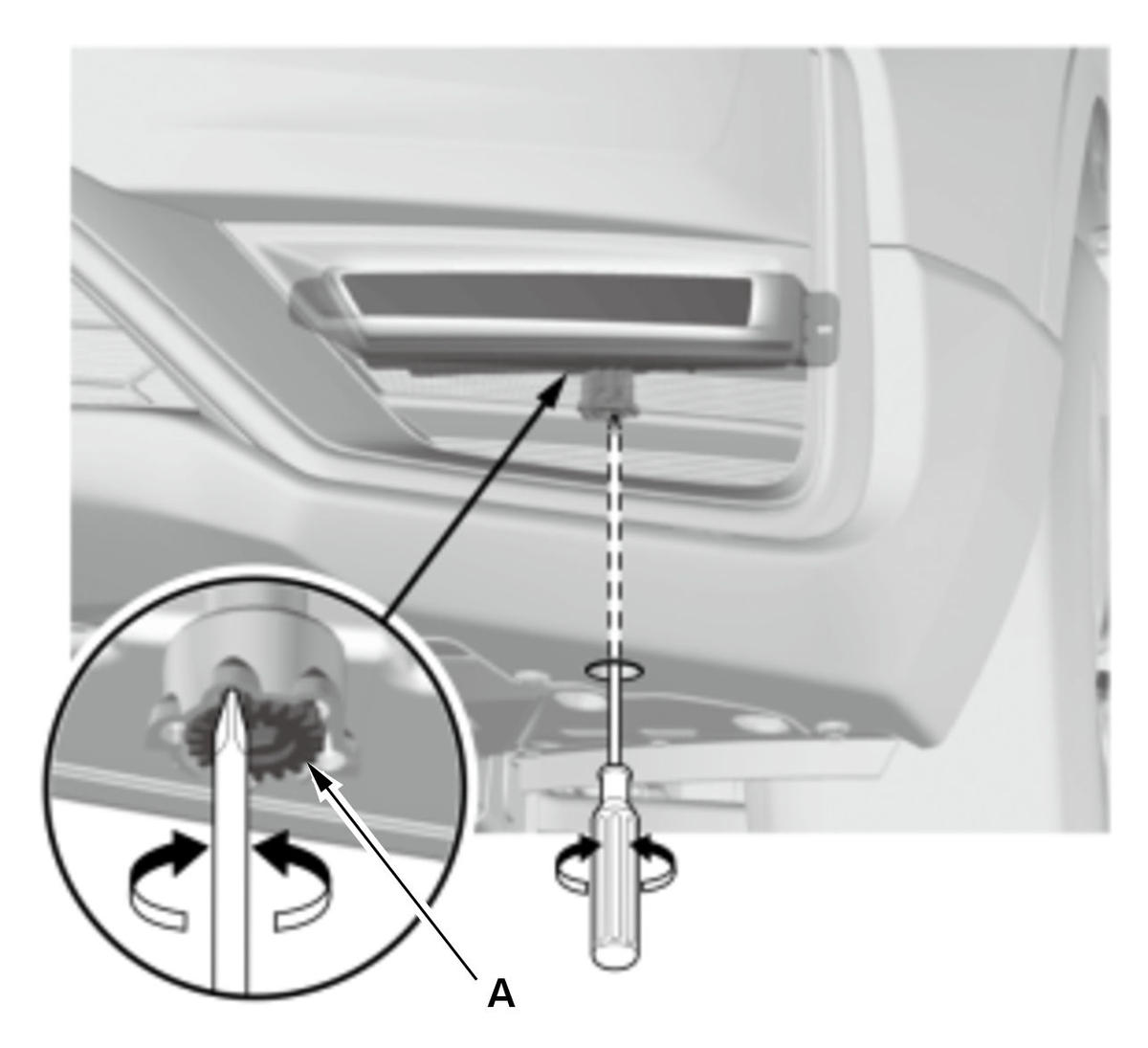

With front fog light (5-LED type)

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.
