Suspension System Description - Components

Noise Reducing Wheel

Each wheel is equipped with a resonator helps to reduce the cavity noise in the tire and mid-frequency noise caused by the tire/road contact. It has a hollow structure with a vent hole. Should the resonator become loose or damaged, the whole wheel must be replaced. The tire replacement procedures are the same as a normal wheel. Make sure not to damage the resonator with tools while replacing the tire.

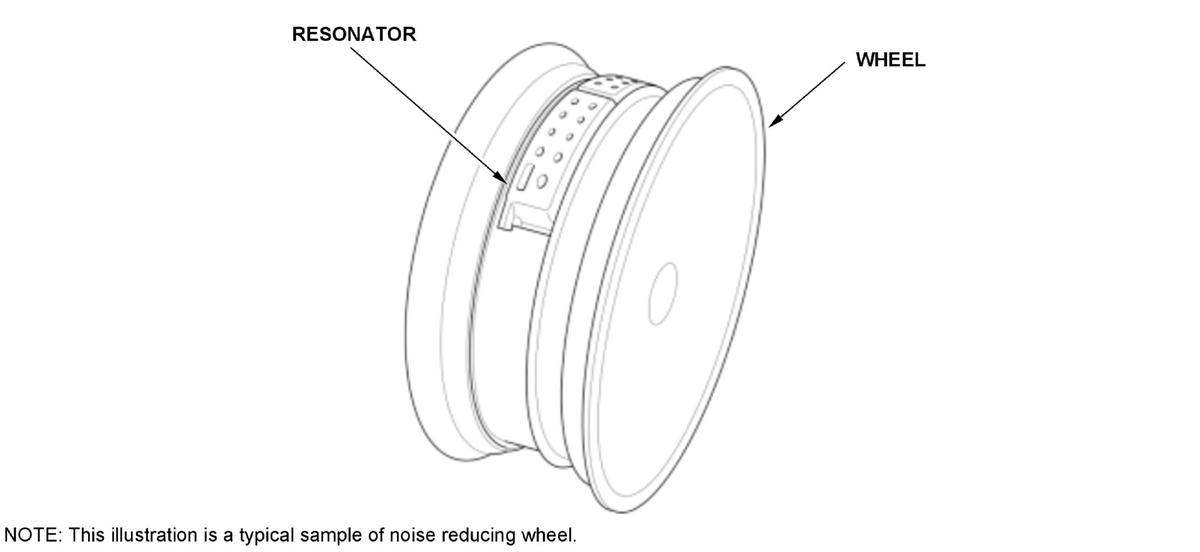

GHH398745Courtesy of HONDA, U.S.A., INC.

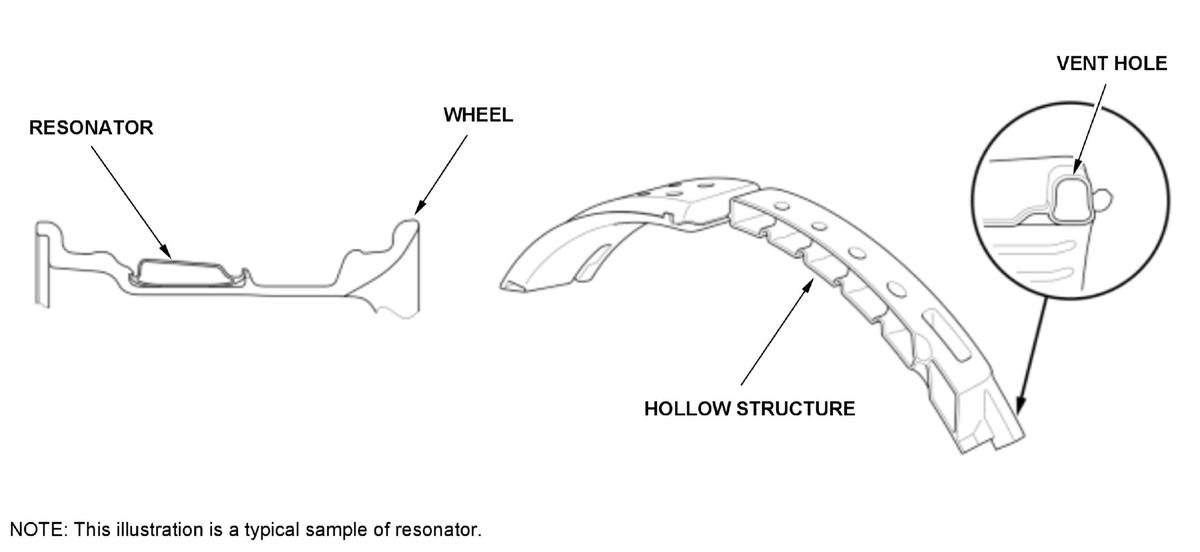

GHH398746Courtesy of HONDA, U.S.A., INC.
