Suspension System - Testing & Troubleshooting (Except Hybrid)
>>
Circuit Diagram
>>

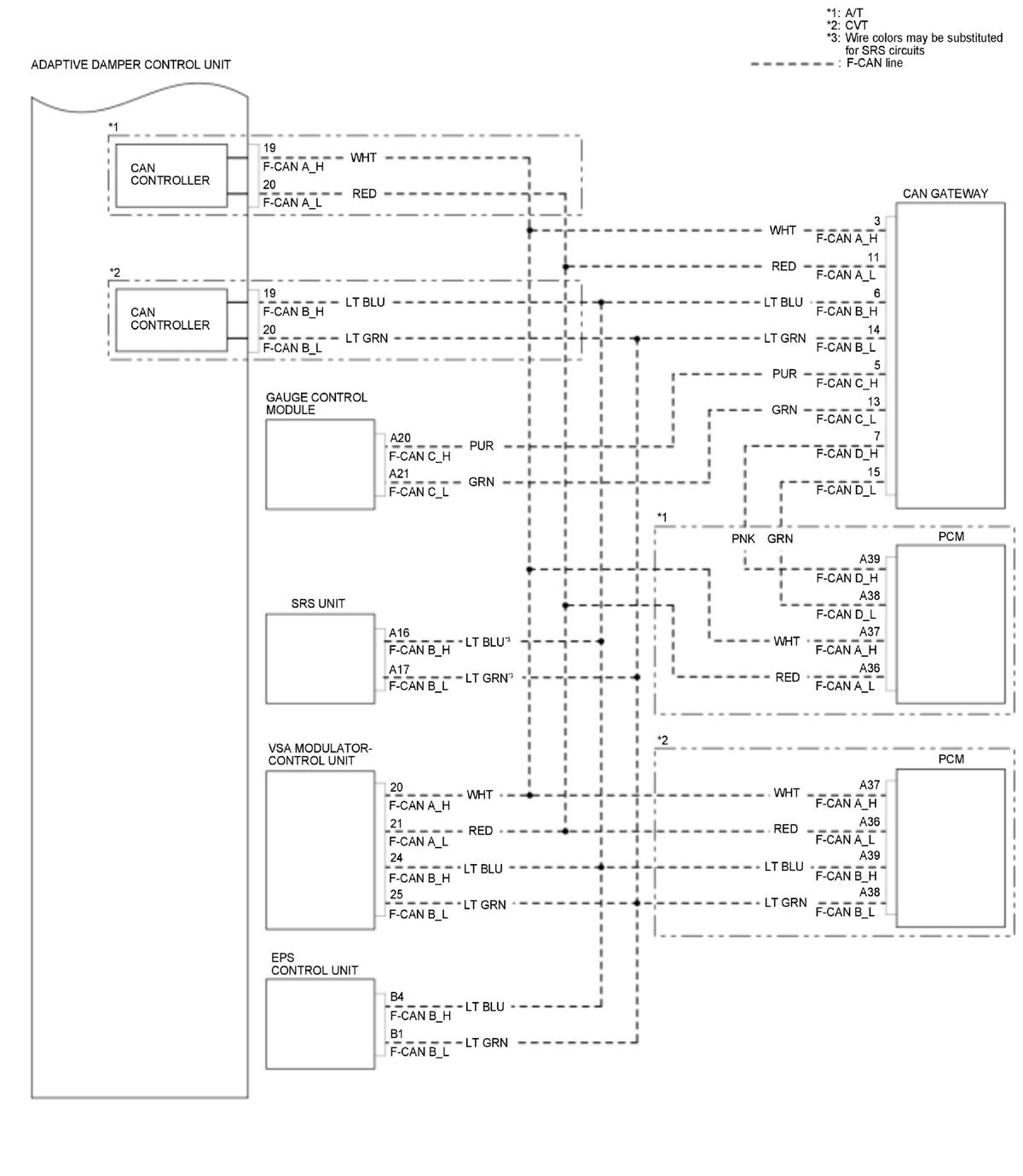

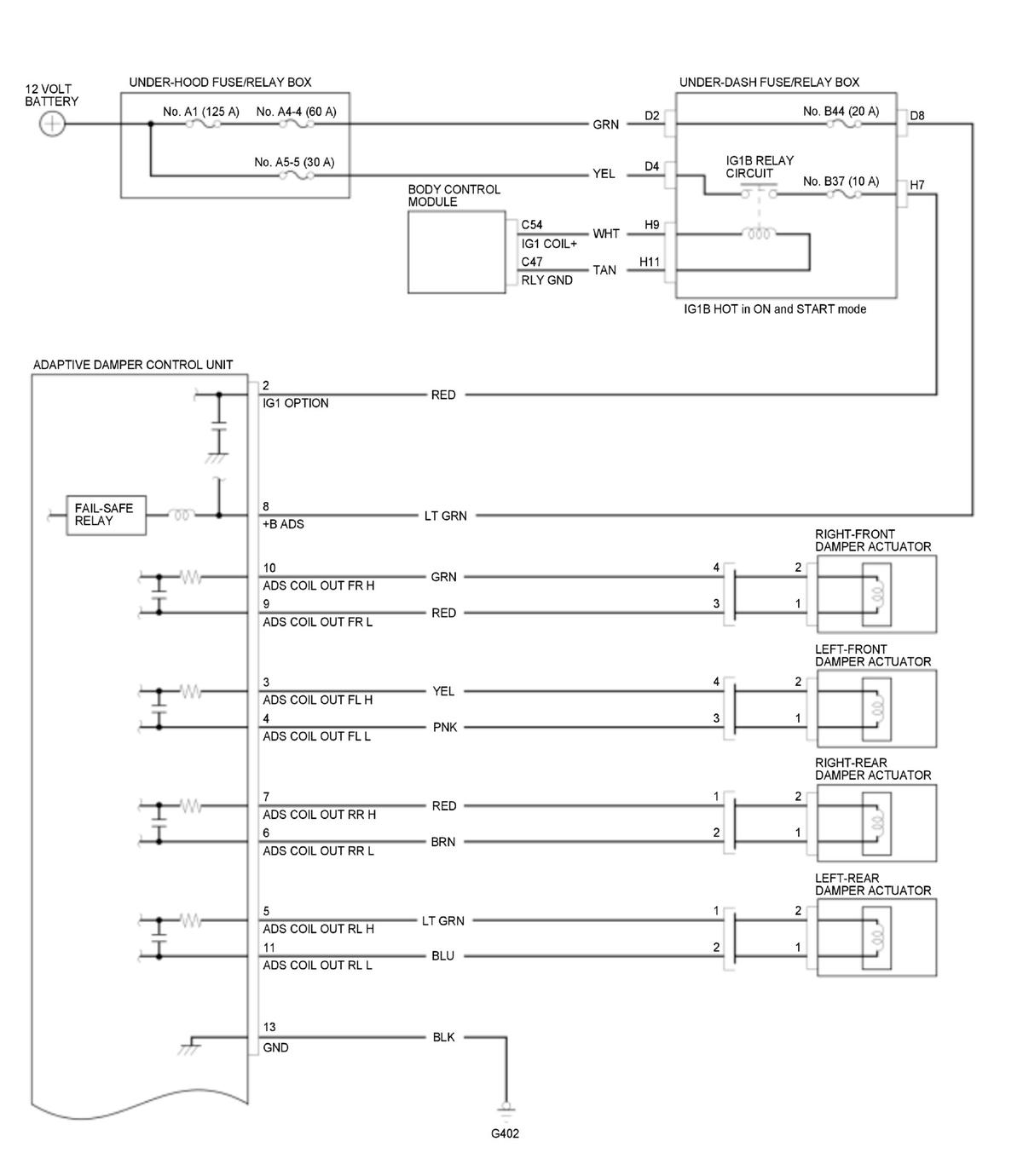

Adaptive Damper System Circuit Diagram
Adaptive Damper System Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
