Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Wireless Charger

Wireless Charger

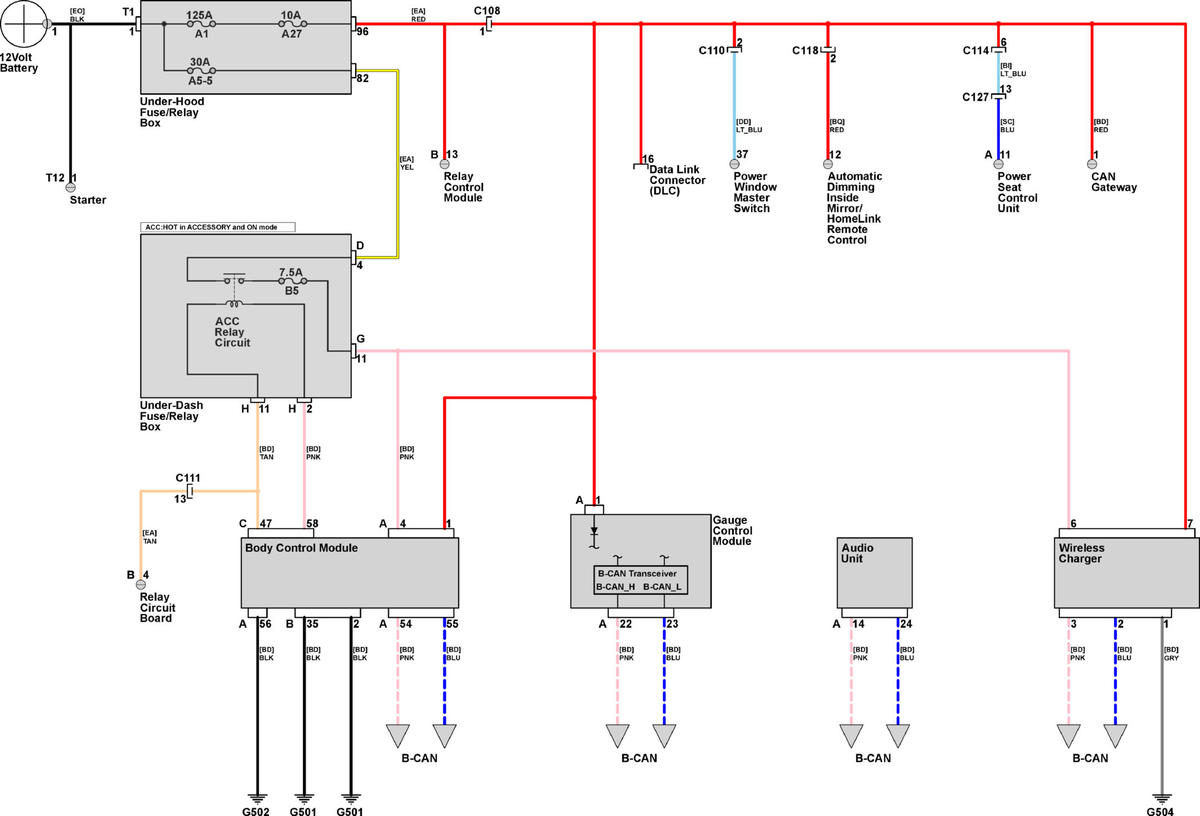

GHHW17273Courtesy of EWD

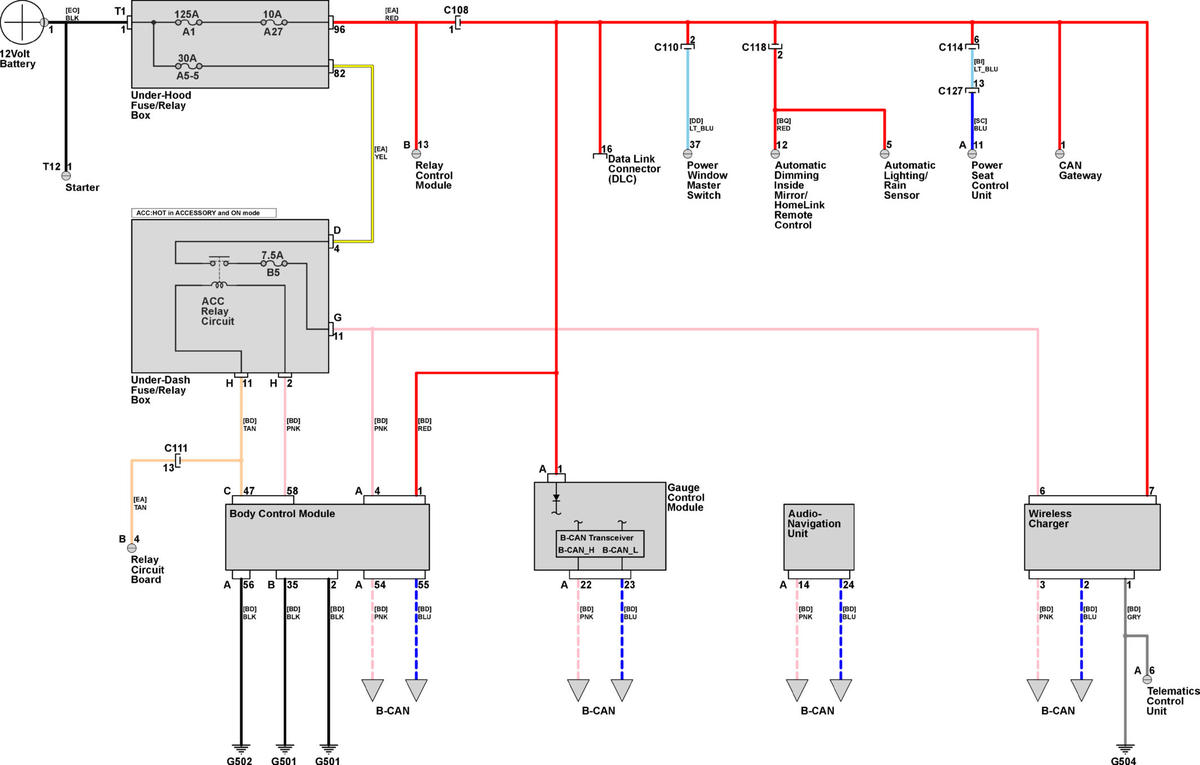

GHHW17274Courtesy of EWD

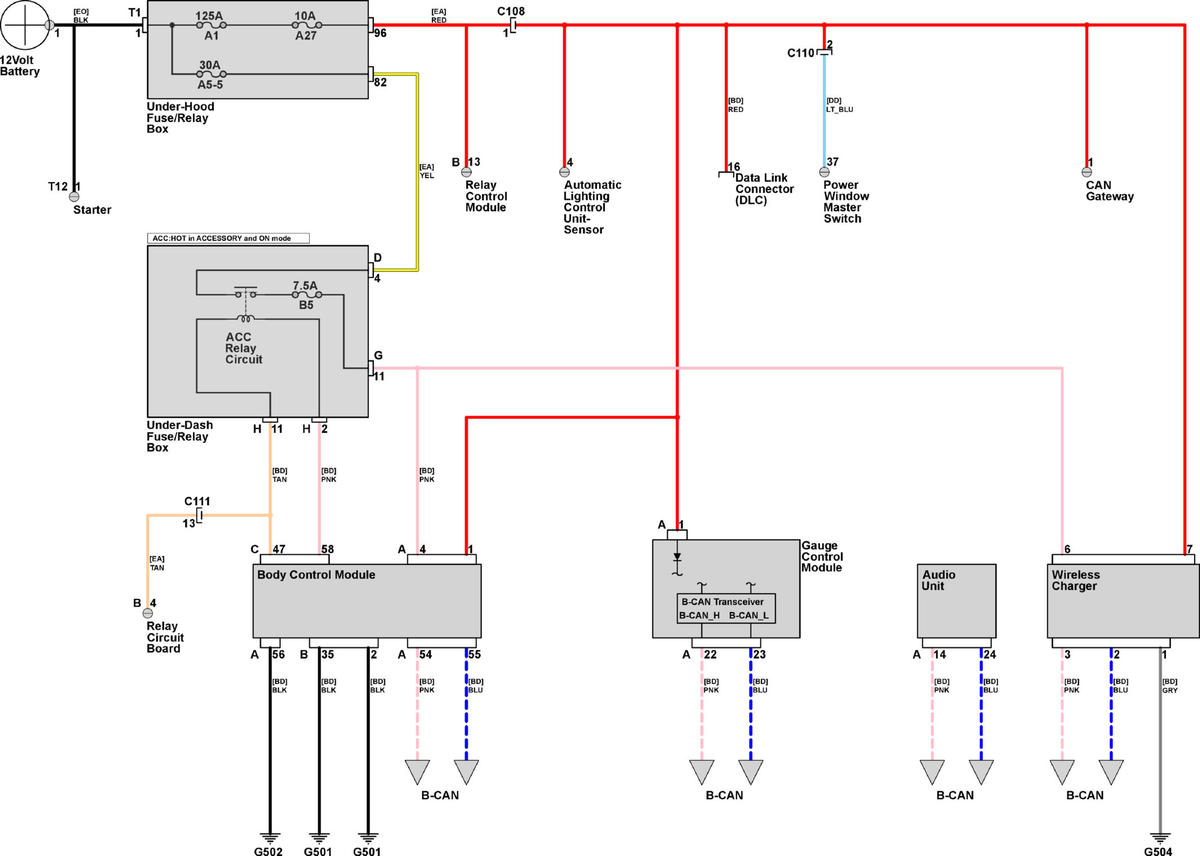

GHHW17275Courtesy of EWD
