Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Except Hybrid) >> Wiper/Washer (Windshield)

Wiper/Washer (Windshield)

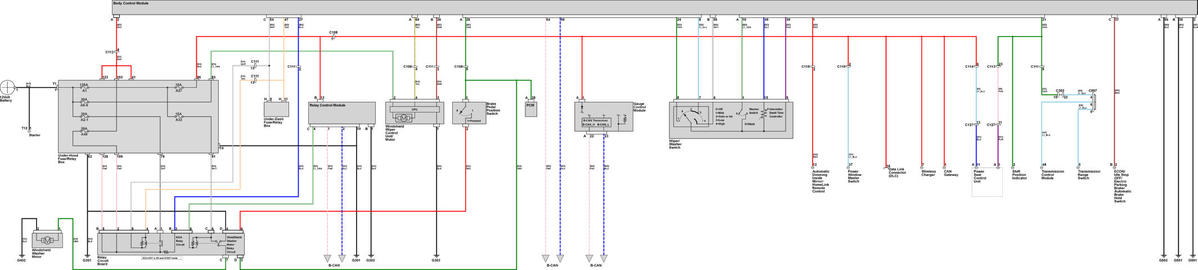

GHHW17268Courtesy of EWD

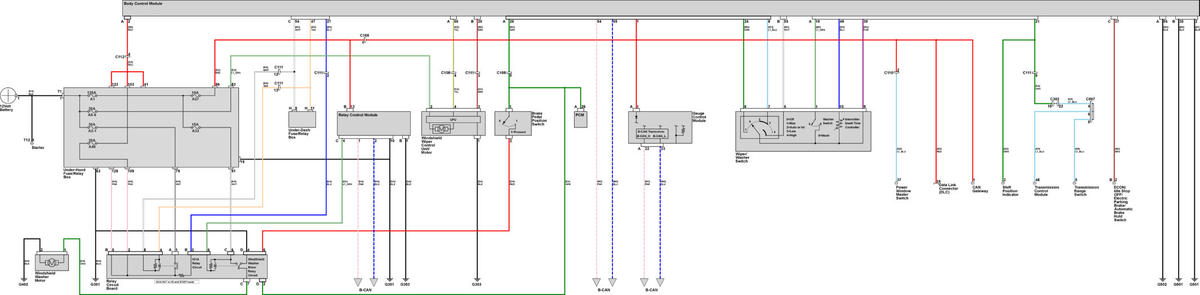

GHHW17269Courtesy of EWD

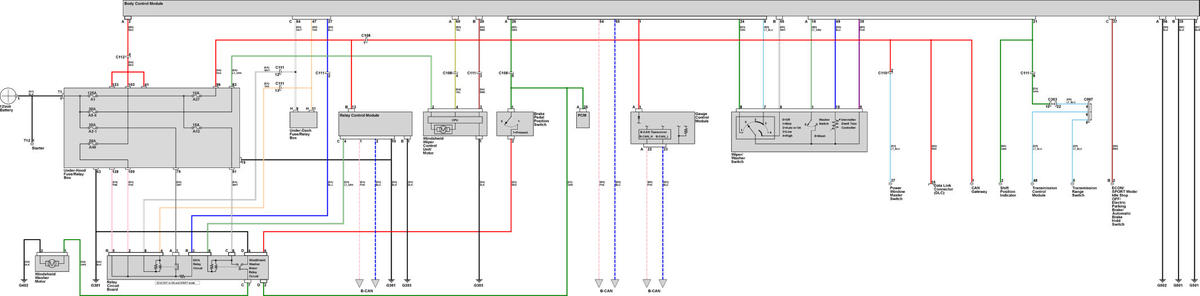

GHHW17270Courtesy of EWD

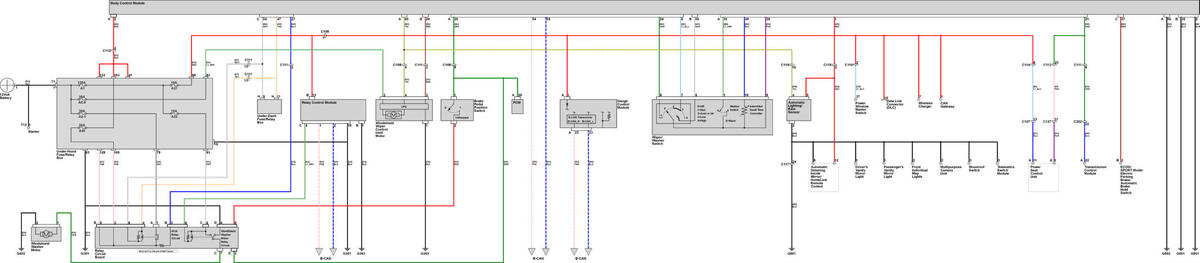

GHHW17271Courtesy of EWD

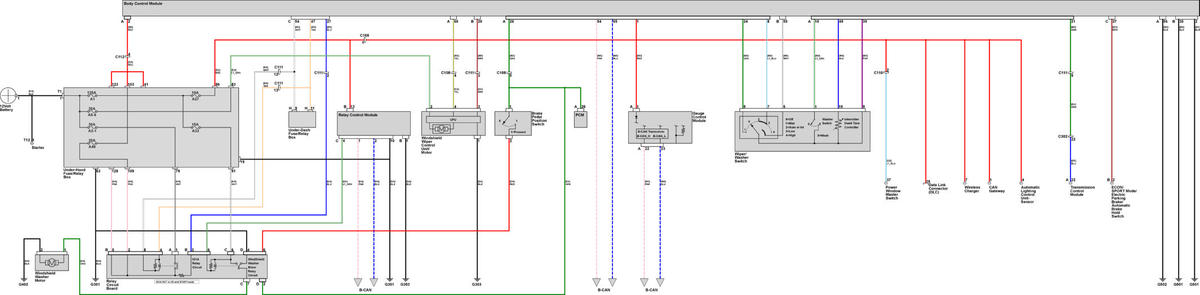

GHHW17272Courtesy of EWD
GHHW17270Courtesy of EWD
