VSA System/TPMS (Tire Pressure Monitoring System)

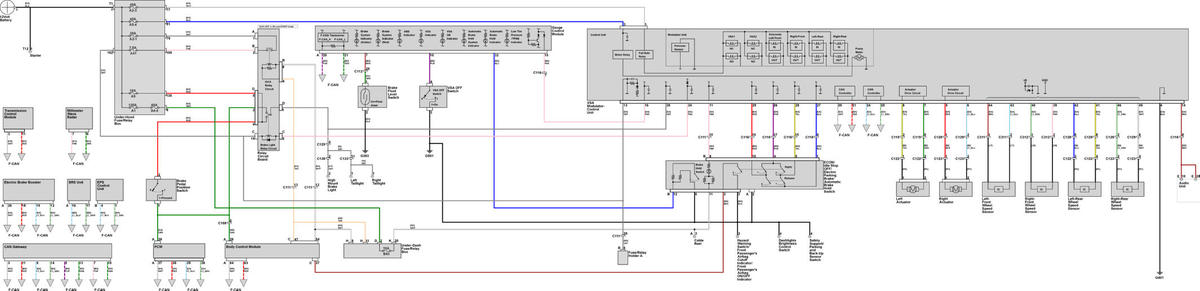

GHHW17261Courtesy of EWD
GHHW17262Courtesy of EWD
GHHW17263Courtesy of EWD
GHHW17264Courtesy of EWD

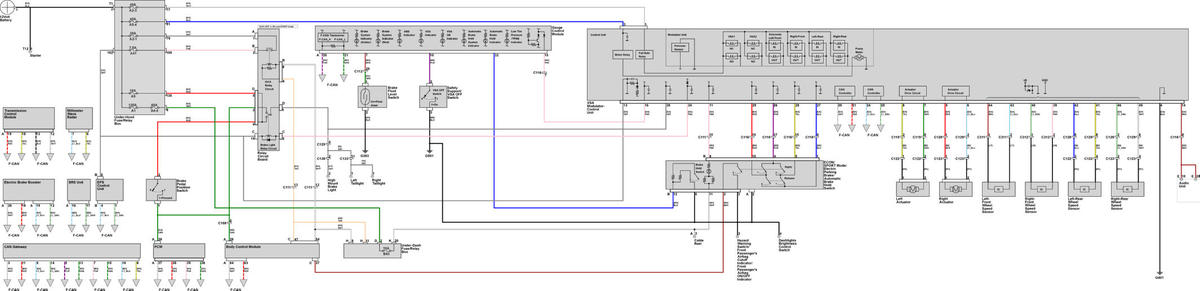

GHHW17265Courtesy of EWD
GHHW17263Courtesy of EWD
