Trunk Lid Opener

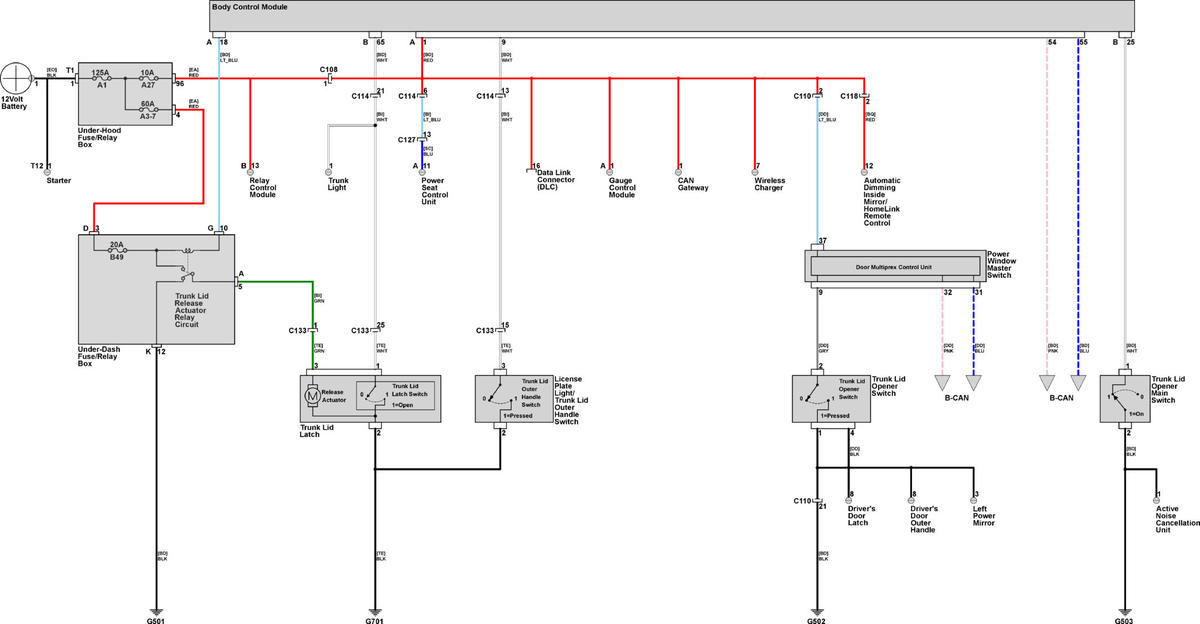

GHHW17255Courtesy of EWD

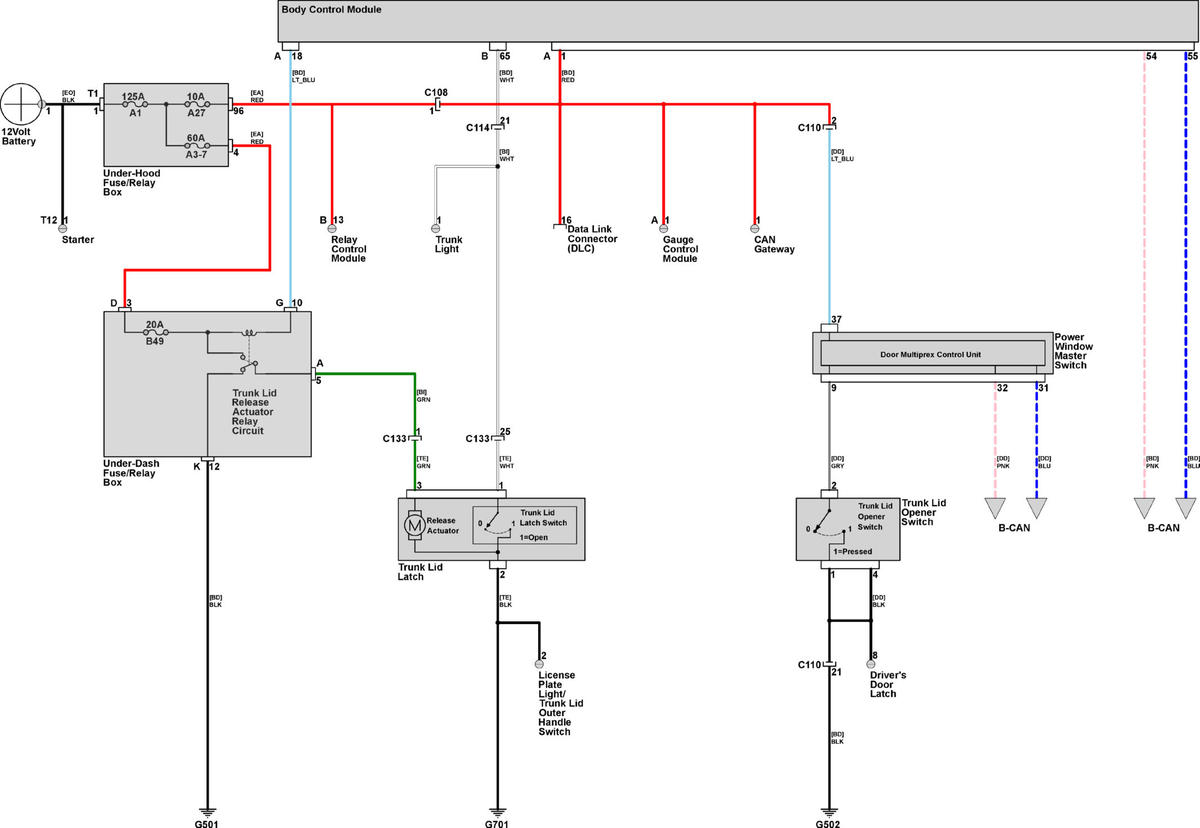

GHHW17256Courtesy of EWD

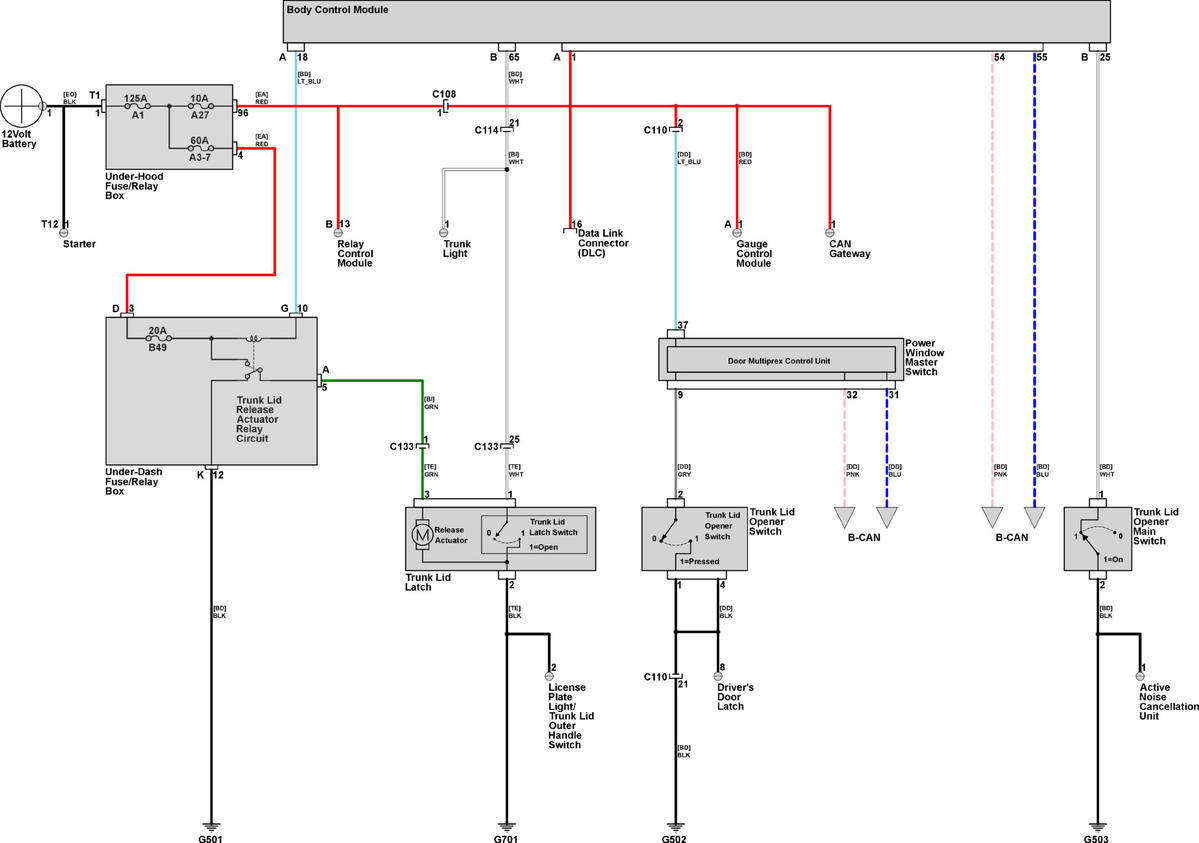

GHHW17257Courtesy of EWD

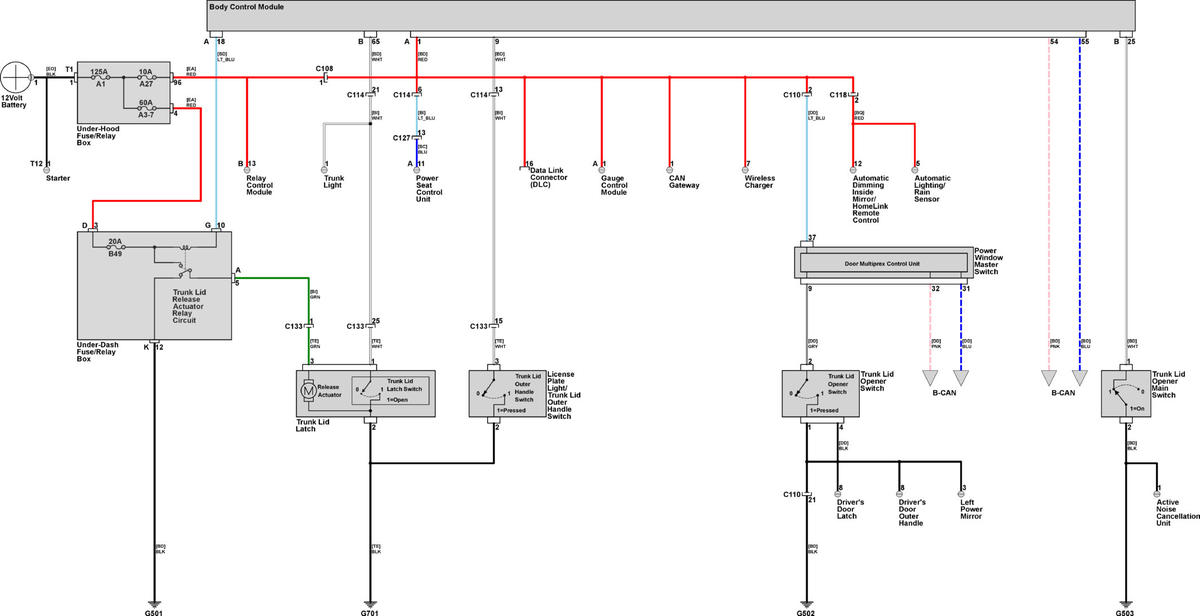

GHHW17258Courtesy of EWD

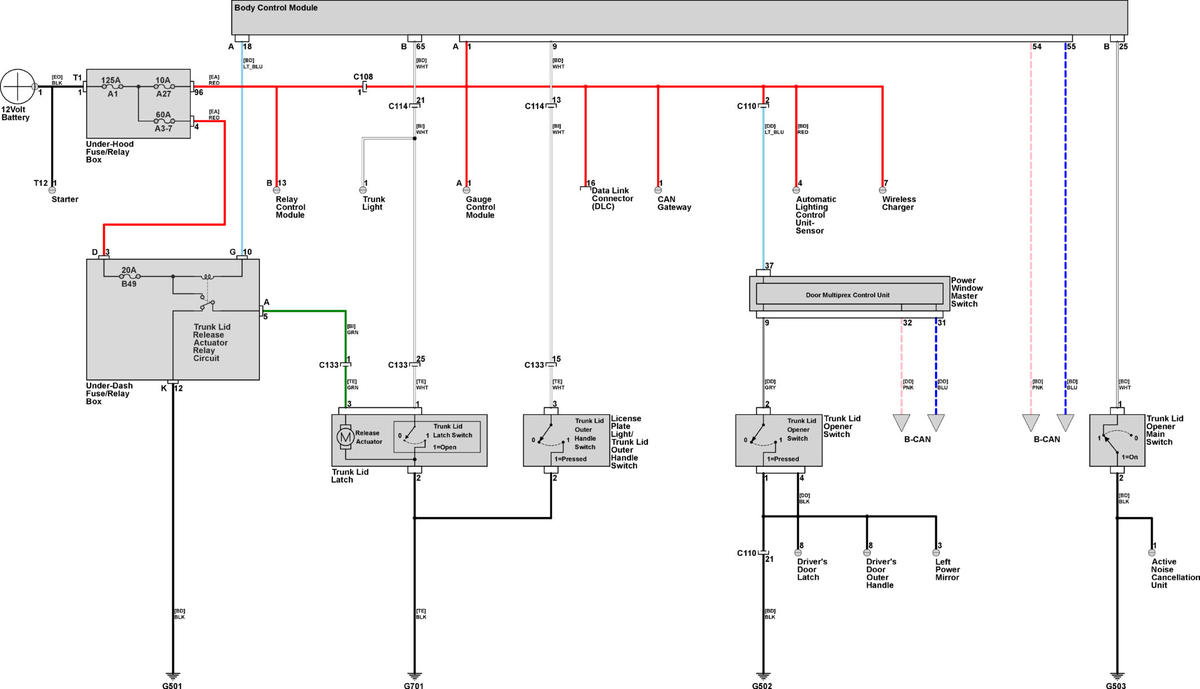

GHHW17259Courtesy of EWD

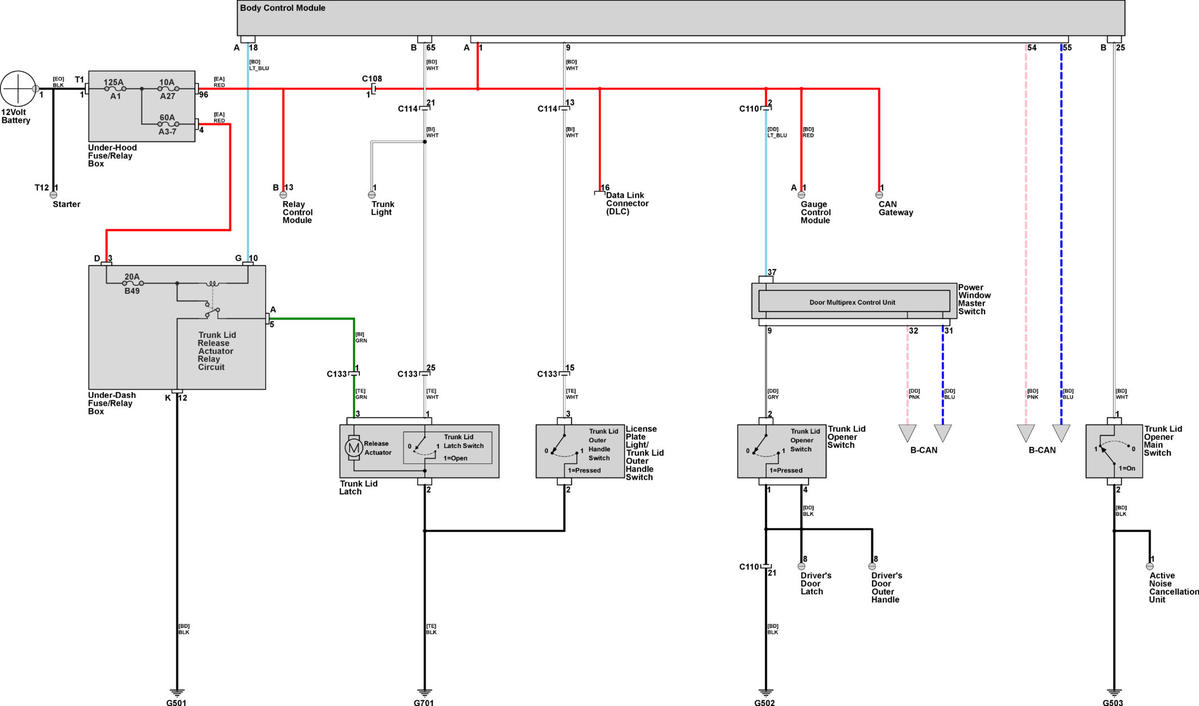

GHHW17260Courtesy of EWD
