Thermal Joint

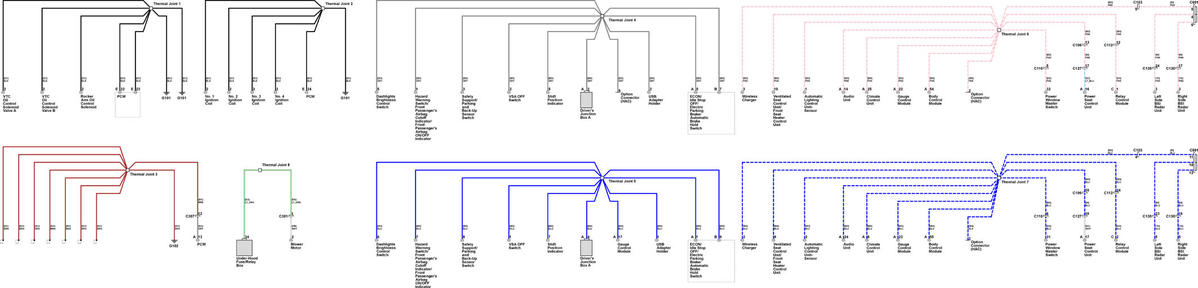

GHHW17132Courtesy of EWD
GHHW17133Courtesy of EWD

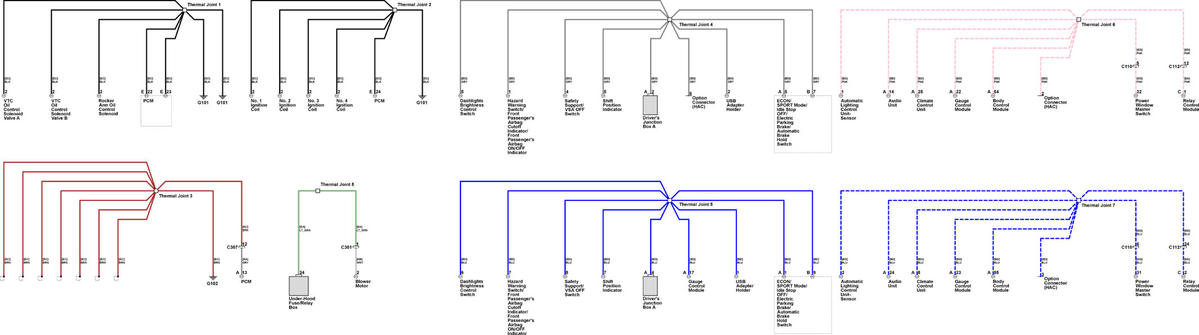

GHHW17134Courtesy of EWD

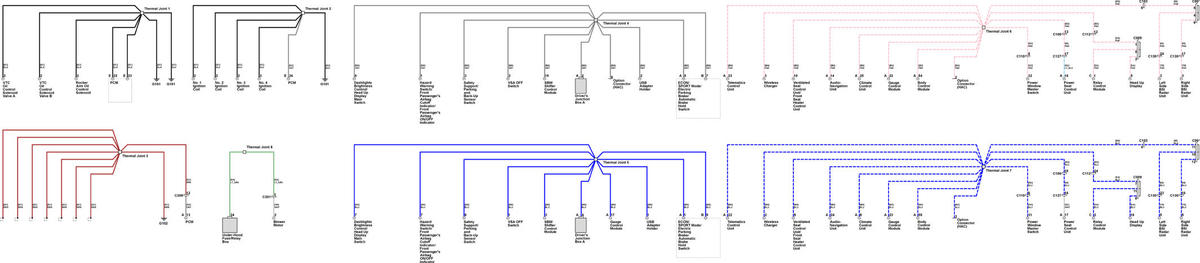

GHHW17135Courtesy of EWD

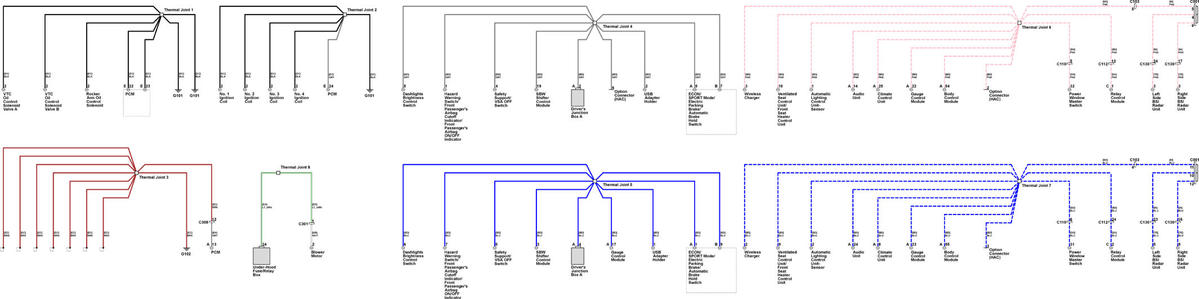

GHHW17136Courtesy of EWD

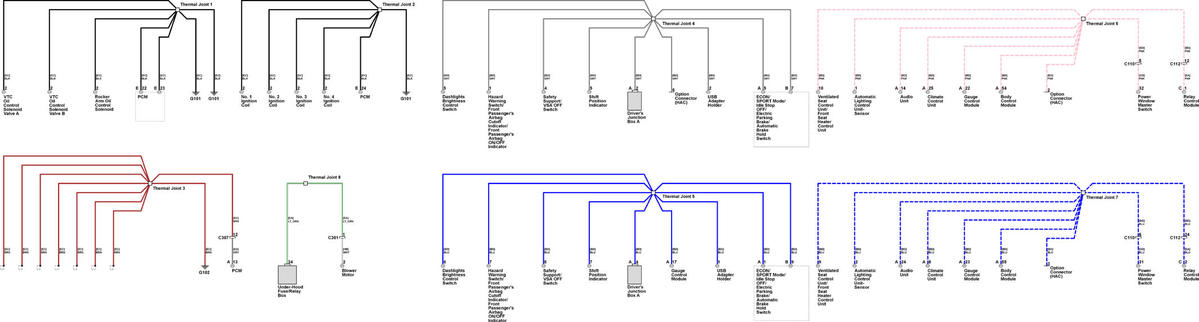

GHHW17137Courtesy of EWD
