Starting System

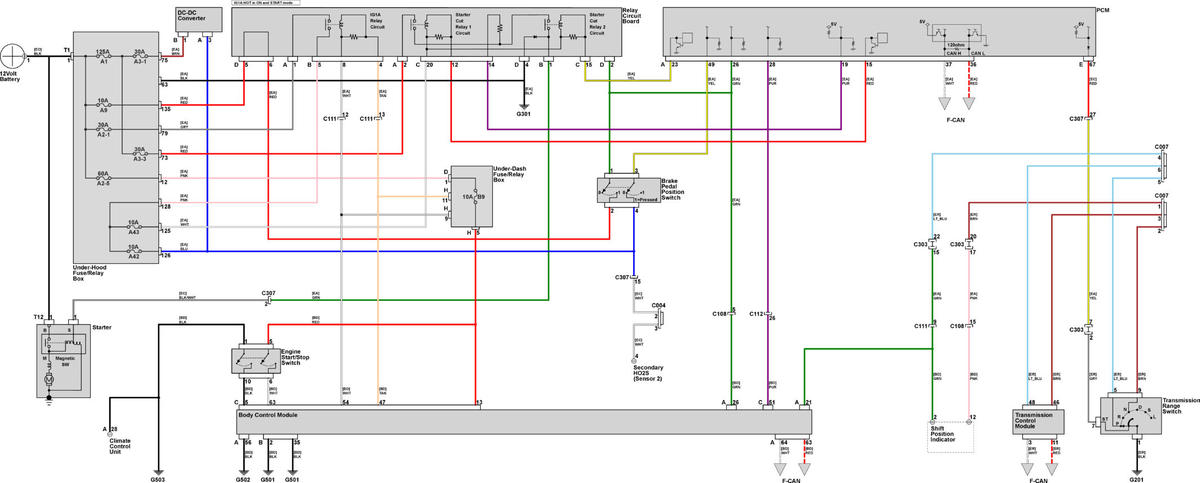

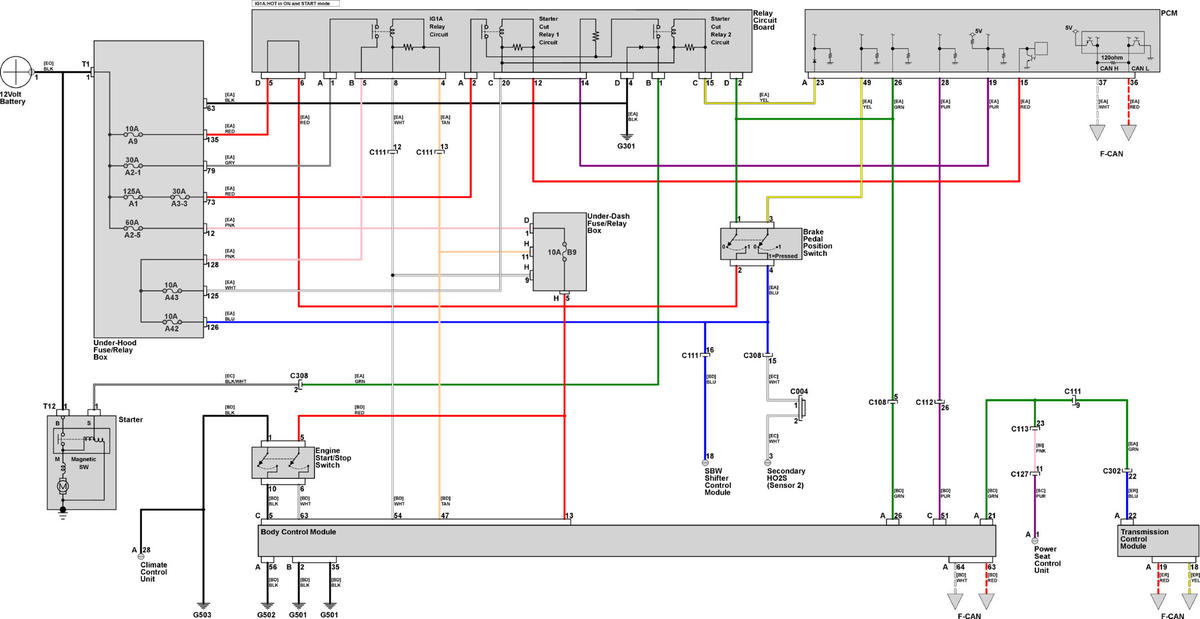

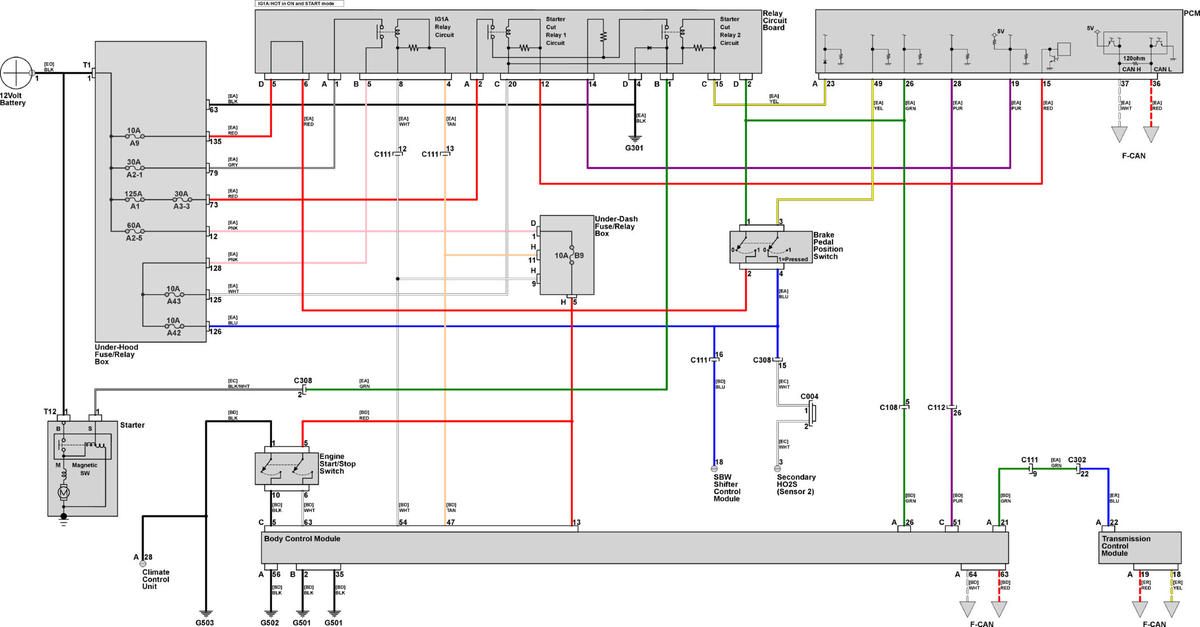

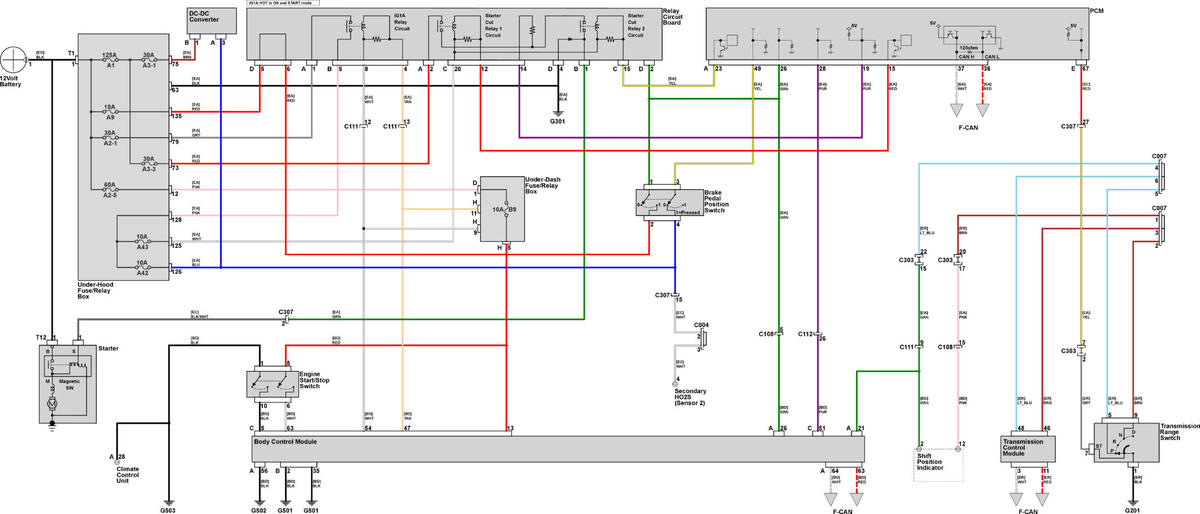

Starting System
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWD
Courtesy of EWDCourtesy of EWD
